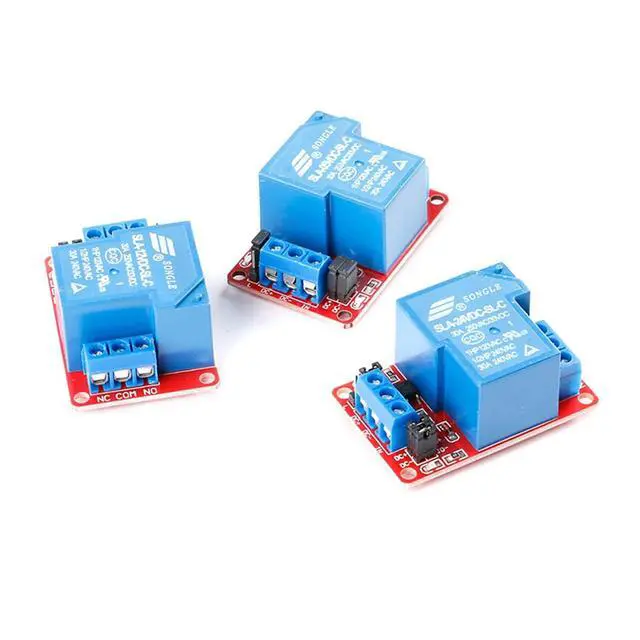

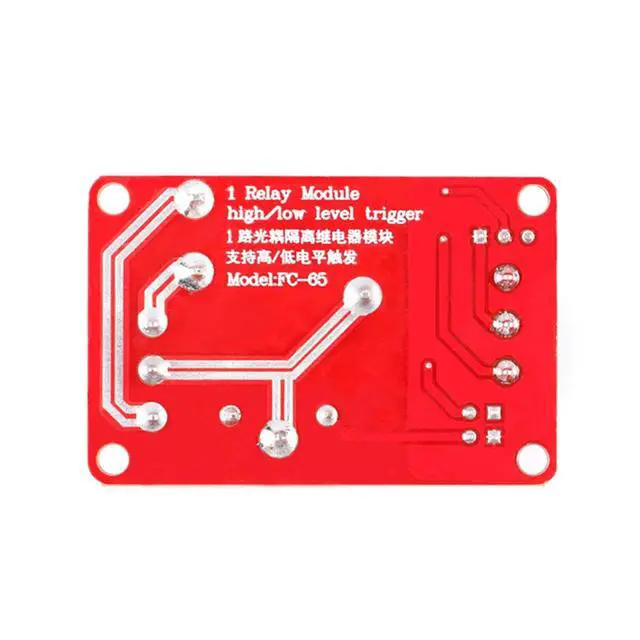

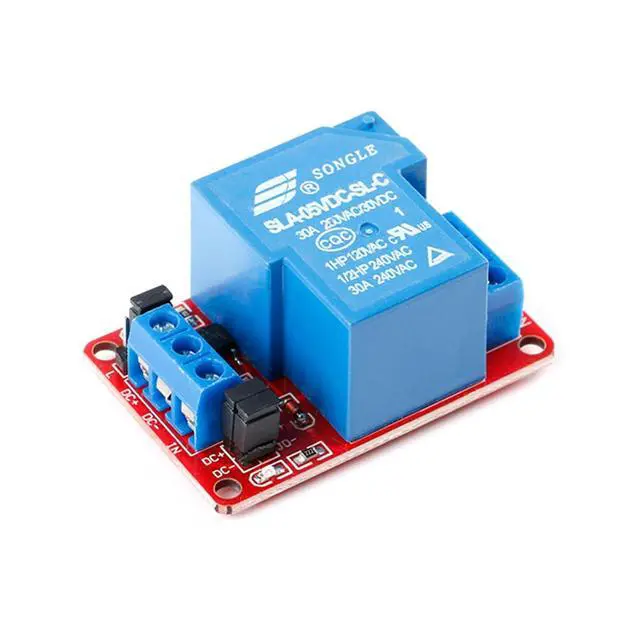

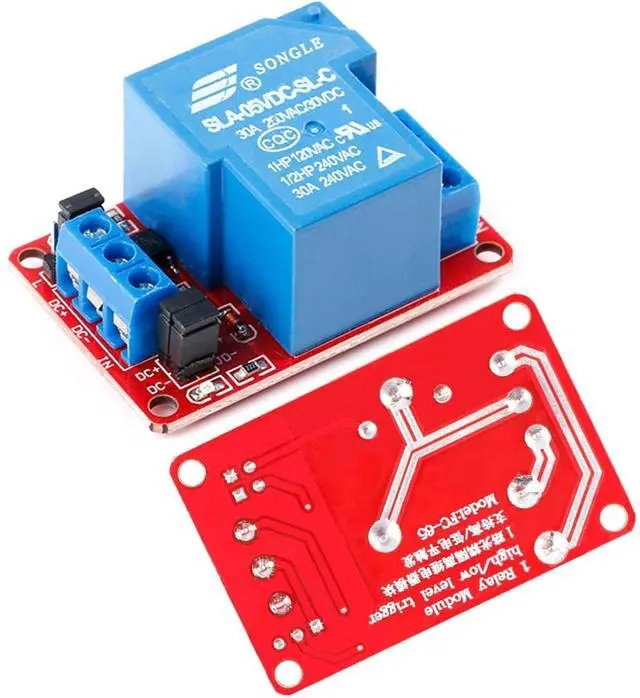

5V 30A Relay Module, 1 Channel, Optocoupler Isolation, High/Low Trigger for Automation Control
- **Versatile Automation Control**: This 5V 30A relay module offers seamless integration for automation projects, featuring optocoupler isolation for enhanced signal integrity, making it ideal for smart home systems and industrial applications.; **User-Friendly Design**: Easily switch between high and low trigger modes with a simple jumper cap configuration. Designed to be intuitive, ensuring hassle-free setup even for beginners.; **Reliable Performance**: Built with high-quality power relays and military-grade double-sided PCB, ensuring stable performance and long-lasting durability in various power control applications.; **Compact and Efficient**: With a compact size of 50mm x 33mm x 24mm, this module delivers powerful performance without taking up much space, perfect for projects with limited room.; **Wide Compatibility**: Suitable for 5V, 12V, and 24V systems, accommodating a wide range of projects. Red and green signal indicators provide clear status visibility, enhancing operational safety and efficiency.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description Product parameters

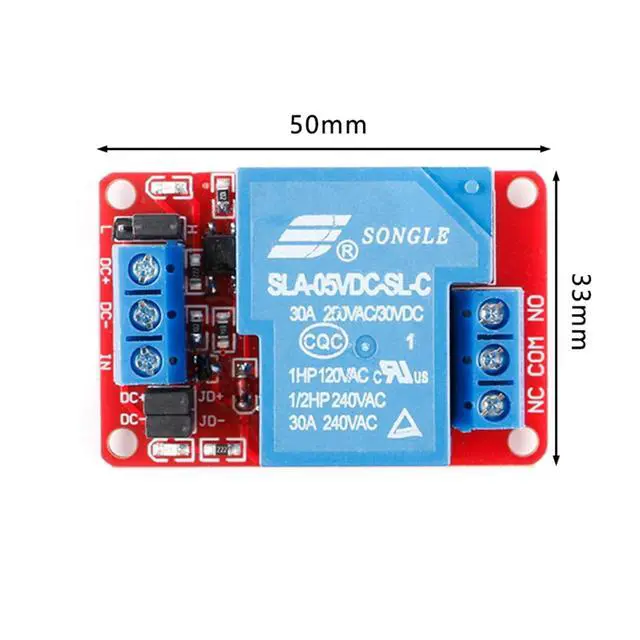

Module size: 50mm * 33mm* 24mm (length * width * height) There are 4 fixing bolt holes, the hole is 3.1 mm, the spacing is 44.5 mm* 27.5 mm Short-circuit DC+ and JD+ with jumper caps, and short-circuit DC- and JD- with jumper caps. The trigger terminal and the relay control terminal have the same voltage. High and low level trigger mode selection, as shown in the figure, when the jumper is connected to the L terminal, the IN terminal is a low level trigger, and when it is connected to the H terminal, it is a high level trigger. 24V 30A relay module Optocoupler isolation for enhanced safety
Compact size: 50mm x 33mm x 24mm 5V Relay module
Quiescent current: 5mA
Maximum current: 190mA
Trigger current: 2-4mA
Trigger power (low): 0- 1.5V
High: 2.5 -5V 12V Relay module
Quiescent current: 5mA
Maximum current: 80mA
Trigger current: 2-4mA
Trigger power (low): 0-4V
High: 4.5 -12V 24V Relay module
Quiescent current: 5mA
Maximum current: 50mA
Trigger current: 2-4mA
Trigger power (low): 0-8V
High: 8.5 -24V Quiescent current of 5mA High/Low trigger mode selectable

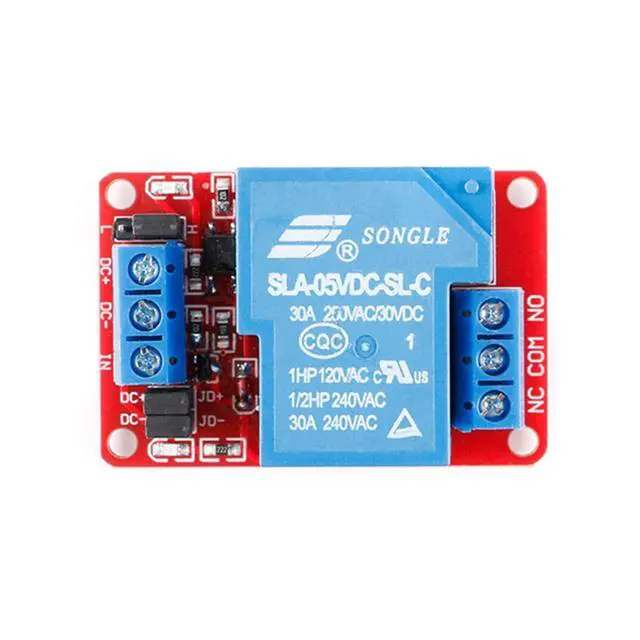

Multiple voltage options: 5V, 12V, 24V Easy installation with 4 fixing bolt holes Pin description
DC+: Module DC power supply anode (trigger terminal voltage anode)
DC-: Module DC power supply negative electrode (trigger terminal voltage negative electrode)
IN: Signal trigger terminal (default trigger voltage is the same as power supply)
JD+: Positive voltage of relay control terminal
JD-: The negative pole of the control terminal voltage of the relay Normally closed terminal (NC) Normally closed terminal of the relay
Common terminal (COM): Relay common terminal
Normally open terminal (NO): Relay normally open terminal Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 315 4.6 out of 5 stars 104 4.9 out of 5 stars 22 4.6 out of 5 stars 104 4.9 out of 5 stars 9 4.6 out of 5 stars 104 4.8 out of 5 stars 15 Model P/N B-30-1000 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 External Wire Diameter 0.56 mm 0.56 mm 0.5 mm 0.56 mm 0.8 mm 0.56 mm 0.3 mm Core Sectional Area 0.2 mm² 0.2 mm² none 0.2 mm² none 0.2 mm² none Material PVC PVC solder PVC solder PVC solder Wire Gauge 30AWG 30AWG none 30AWG none 30AWG none Temperature 105 113 183 107 183 112 183
