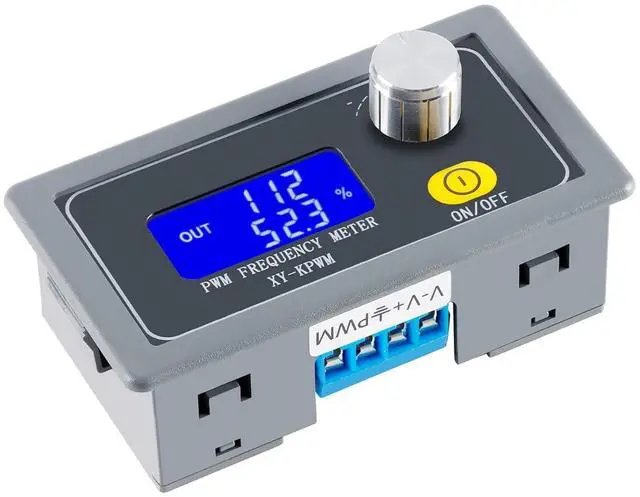

Signal Generator XY-KPWM 1-Channel PWM Generator 1Hz-150kHz Dual Mode PWM Pulse Frequency Square Wave Signal Generator Module LCD Display 3.3-30V 5-30mA Pulse Frequency Generator with Shell
- XY-KPWM Signal Generator has two working modes to choose from, the frequency range of the normal mode is 1Hz-150kHz, and the duty cycle is stepped by 1%; the fine mode frequency range is 1Hz-15kHz, and the duty cycle is stepped by 0.1%; PWM Generator use potential encoder to adjust, simple, convenient and easy to use; LCD liquid crystal display, clearly display frequency and duty cycle, PWM with switch, can turn on and off PWM output with one key; Pulse generator PWM output can set frequency and duty cycle respectively; Adjust the upper and lower limits of duty cycle freely; With locking function, prevent misoperation, all setting parameters, power-down storage, high frequency range, high precision, serial communication is acceptable; Widely used as a square wave signal generator to generate square wave signals for experimental development and use. Used to generate square wave signals for controlling motor drivers; Generate adjustable pulses for MCU use; Generate adjustable pulses and control related circuits (applications such as PWM dimming and speed regulation), etc
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.

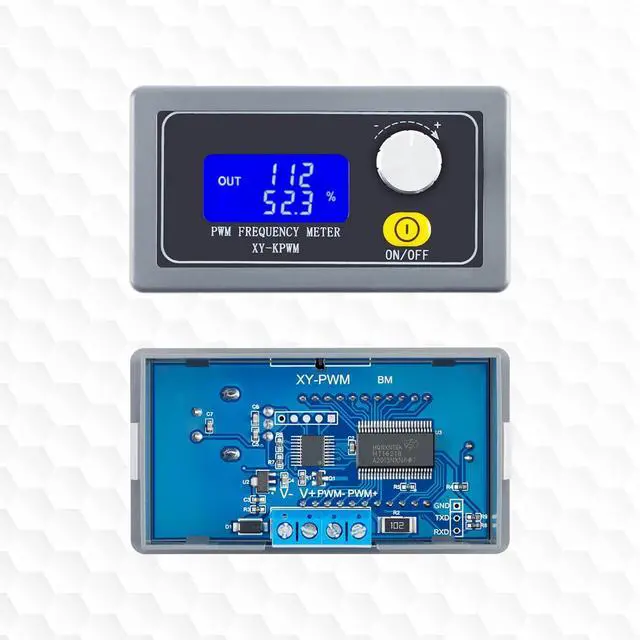

Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. Module descriptionPWM output, frequency and duty cycle can be set respectively;

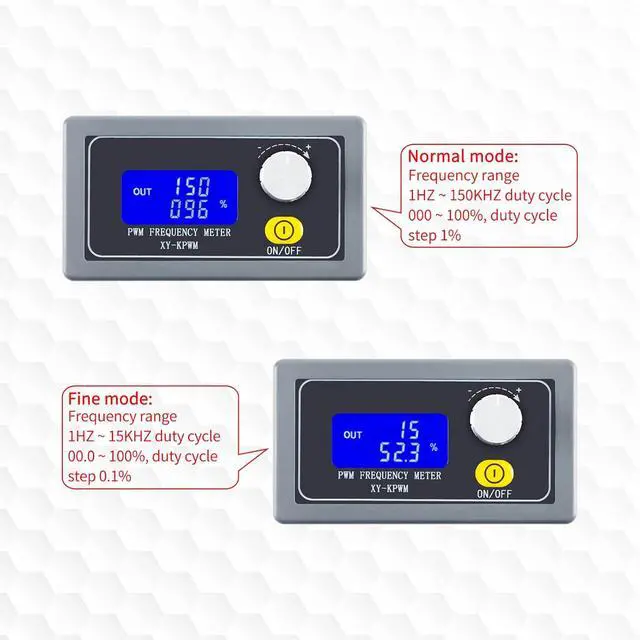

Normal mode: Frequency range 1Hz ~ 150kHz, duty cycle 000 ~ 100%, duty cycle step 1%
Fine mode: Frequency
range: 1Hz ~ 15KHz, duty
cycle: 00.0 ~ 100%, duty
cycle step: 0.1 % The frequency is divided into four ranges, automatic
switching: XXX
(without decimal point): the minimum unit is 1Hz, and the value range is 1Hz ~ 999hz; The minimum unit of X. XX (the decimal point is in the hundreds) is 0.01 khz, and the value range is 1.00 khz ~ 9.99 khz XX. X (decimal point in ten digits): the minimum unit is 0.1 khz;
Value range: 10.0 khz ~ 99.9 khz X. X. X (the decimal point is in the tens and hundreds): the minimum unit is 1kHz;
Value range: 1kHz ~ 150kHz
Frequency display: 100 indicates that PWM outputs 100Hz pulses; 1.01 indicates PWM output pulse of 1.01 k; 54.1 indicates that the PWM outputs a pulse of 54.1 khz; 1.2. 4 indicates that the PWM outputs 124khz pulses;
Duty cycle value range: 0 ~ 100% All setting parameters support power down saving

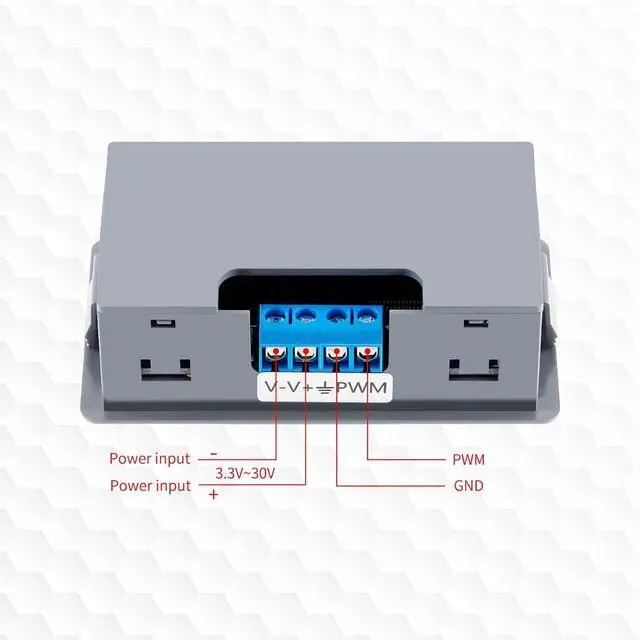

Parameters: Working
voltage: 3.3 ~ 30V;
Frequency range: ordinary mode 1Hz ~ 150kHz;
Fine mode: 1Hz ~ 15KHz; 3.

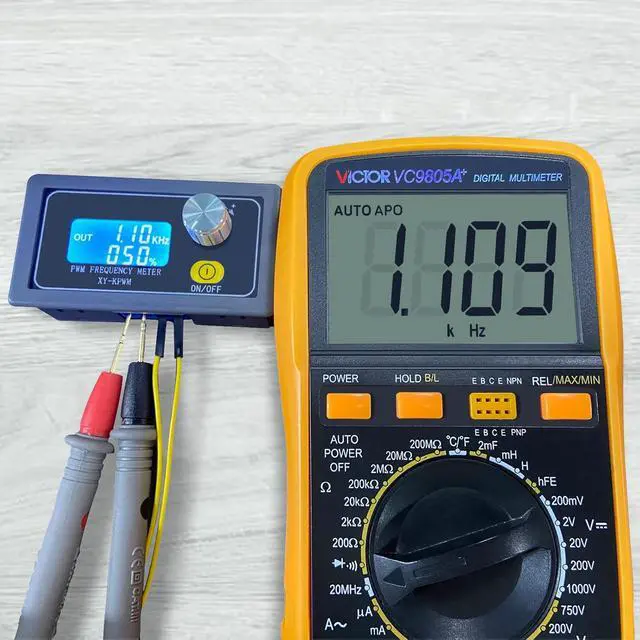

Frequency accuracy: the accuracy in each range is about 2%; 4.
Signal load capacity: the output current can be about 5 ~ 30mA; 5.
Output amplitude: the PWM amplitude is equal to the power supply voltage; 6.
Temperature: - 20 ~ + 70.

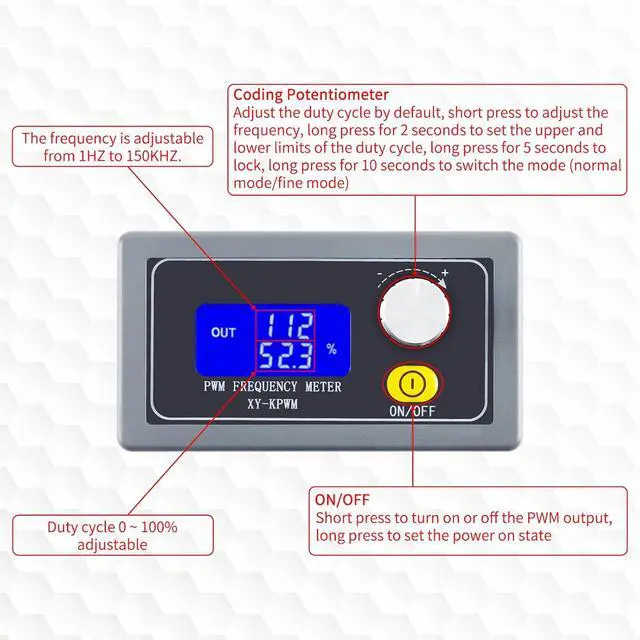

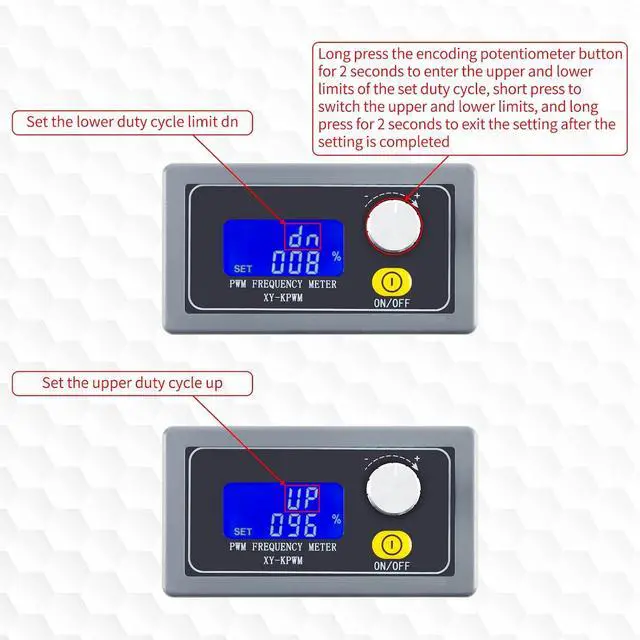

Parameter Setting: This product adjusts the frequency and duty cycle by rotating the potentiometer. It can realize rapid adjustment according to the rotation speed. By default, adjust the duty cycle. Short press the adjustment frequency, long press for 2 seconds to lock, and long press for 5 seconds to switch the mode (normal mode / fine mode). The operation is simple. After setting, the parameters are automatically saved and will not be lost in power failure. PWM to Voltage Module 0%-100 PWM to 0-10V Voltage Signal Converter XY-GMOS MOS Tube FET Trigger Switch Driver Module PWM Electronic Switch ZK-MG PWM Motor Speed Controller LED Digital Display Adjustable Driver Module 3Channel PWM Pulse Signal Generator Frequency Adjustable Square Wave Rectangular XY-BLDC 3 Phase DC Brushless Hall Motor Controller Module 10KHz PWM 12V-30V 200W Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Price $ 14.95 $14. 95 $ 8.95 $8. 95 $ 9.95 $9. 95 $ 9.95 $9. 95 $ 13.93 $13. 93 PWM no data
