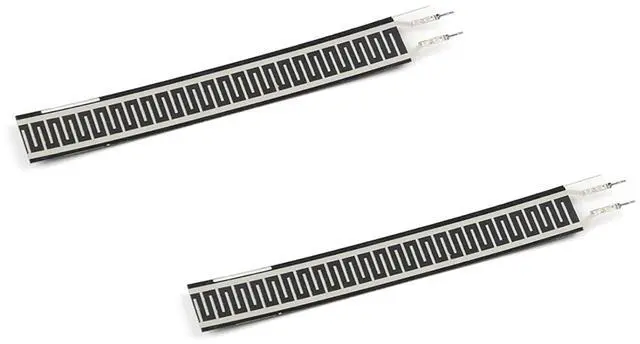

2Pcs RP-L Film Pressure Sensor Pressure Detector Flexible

Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.

Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE.
Trigger force: less than 20g, trigger when the default resistance value is less than 200k;
Pressure sensing range: 20g ~ 10kg or more
Pressure mode of action: static or dynamic (frequency within 10Hz);
Resistance when not triggered: greater than 10M
Activation time: less than 0.01S;
Operating temperature: -40 ~ 85;
Durability: more than 1 million times Static/dynamic pressure sensing, fast response speed, long durability life In-bed off-bed monitoring, sleep state monitoring, intelligent
running shoes: record the intensity and frequency of pressure, intelligent
switch: set the force identification to prevent misoperation, counter: record the number of times of pressure Product Description RP-L resistive varistor is a flexible film sensor whose resistance value decreases as the pressure acting on the sensing zone increases. The single sensing zone sensor is equivalent to a dual-port variable resistor whose resistance value is controlled by pressure, and it is also equivalent to a switch with a certain threshold value, which is determined by the pressure and the equipment parameter setting. RP-L flexible film pressure-sensitive sensor is composed of polyester film with excellent comprehensive mechanical properties, highly conductive materials and nano-scale pressure-sensitive materials. The top layer is a flexible film and a pressure-sensitive layer composite on it, and the bottom layer is a flexible film and composite on it Conductive circuit. The two are attached by double-sided adhesive tape and the sensing area is isolated. When the sensing region is compressed, the lines disconnected from each other at the bottom layer will be conducted through the pressure-sensitive layer of the top layer, and the resistance output value of the port changes with the pressure. LD2410C Human Presence Sensor Millimeter Wave Radar Sensor HLK-LD2410B Human Presence Radar Module Sensor Board HLK-LD2410 24g Smart Human Presence Sensor Radar Module Thin Film Pressure Sensor FSR402 Resistance Type Flexible Force Sensitive Resist Capacitive Soil Moisture Sensor Module 3.3 - 5.5V Corrosion Resistant Humidity JSN-SR04T Ultrasonic Distance Measuring Module Add to Cart Buying Options Add to Cart Add to Cart Buying Options Add to Cart Price $ 12.95 $12.
