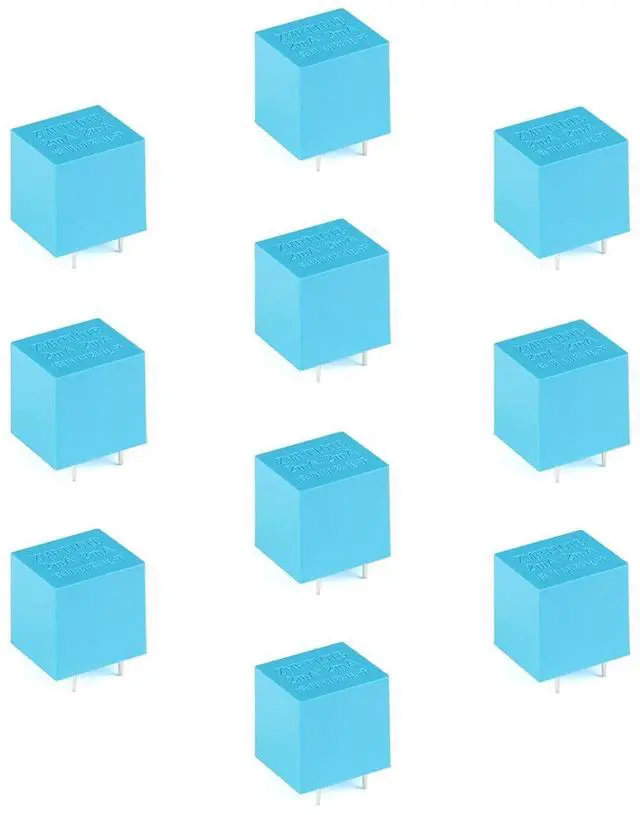

10Pcs ZMPT101B Precision Voltage Transformer 2mA/2mA Single Phase Active Output AC Voltage Sensor ZMPT101B
- Transformer, also known as instrument transformer, is a general term for current transformer and voltage transformer. It can convert high voltage into low voltage, and large current into small current for measurement or protection of the system.; ZMPT101B voltage transformer has small size, high accuracy, and good consistency, and is used for accurate voltage and power measurement.; Rated input current 2mA; Rated output current 2mA; Transformation ratio 1000:1000; Phase difference: 20 '(input: 2mA, sampling resistance: 100 ); Linear range: 0-1000V 0-10mA (sampling resistance: 100 ); Linearity 0.2% (20% points to 120% points); Accuracy class: - 0.3% f +0.2% (input: 2mA, sampling resistance: 100); Isolation and withstand voltage: 4000V; Purpose: Precision voltage and power measurement; Sealing material: epoxy resin; Installation method: printed board installation (pin length>3mm); Working temperature: - 40 ~+60 Shell material: ABS (Note: ABS material cannot be used for wave soldering)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Transformer, also known as instrument transformer, is a general term for current transformer and voltage transformer. It can convert high voltage into low voltage, and large current into small current for measurement or protection of the system.
