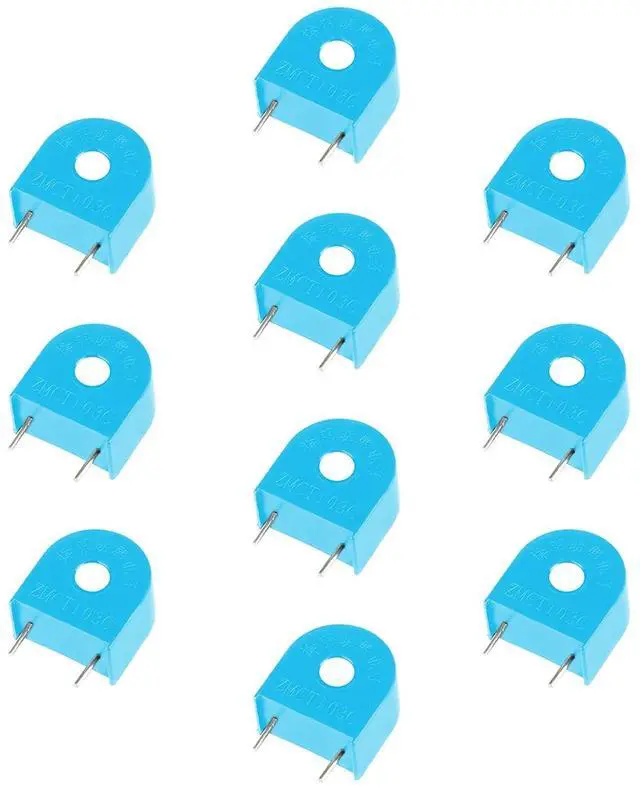

10Pcs ZMCT103C 5A/5mA Precision Micro Current Transformer Module Isolated Voltage Withstand 4500V Epoxy Resin ZMCT103C for Current Measurement
- Transformer, also known as instrument transformer, is a general term for current transformer and voltage transformer. It can convert high voltage into low voltage, and large current into small current for measurement or protection of the system.; ZMCT103C current transformer, with small size, high accuracy, and good consistency, is used for current and power measurement.; ZMCT103C A: Rated input current: 5A; Rated output current: 5mA; Transformation ratio 1000:1; Phase difference: 15 '(input is 5A, sampling resistance is 50 ); Linear range: 0-15A (sampling resistance: 50 ); Linearity 0.2% (5% points to 120% points); Allowable error: - 0.2% f +0.2% (input is 5A, sampling resistance is 50 ); ZMCT103C E: Rated input current: 5A; Rated output current: 5mA; Transformation ratio 1000:1; Phase difference: 30 '(input is 5A, sampling resistance is 50 ); Linear range: 0-15A (sampling resistance: 50 ); Linearity 0.2% (5% points to 120% points); Allowable error: - 0.4% f +0.4% (input is 5A, sampling resistance is 50 ); Isolation and withstand voltage: 4500V; Purpose: Current and power measurement or simple measurement; Sealing material: epoxy tree; Installation method: grease printed board installation (pin length>3mm); Working temperature: - 40 ~+85
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Transformer, also known as instrument transformer, is a general term for current transformer and voltage transformer. It can convert high voltage into low voltage, and large current into small current for measurement or protection of the system.
