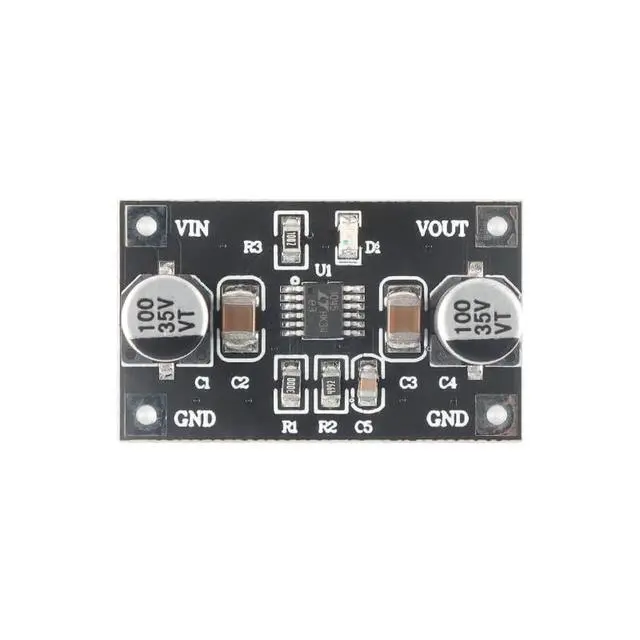

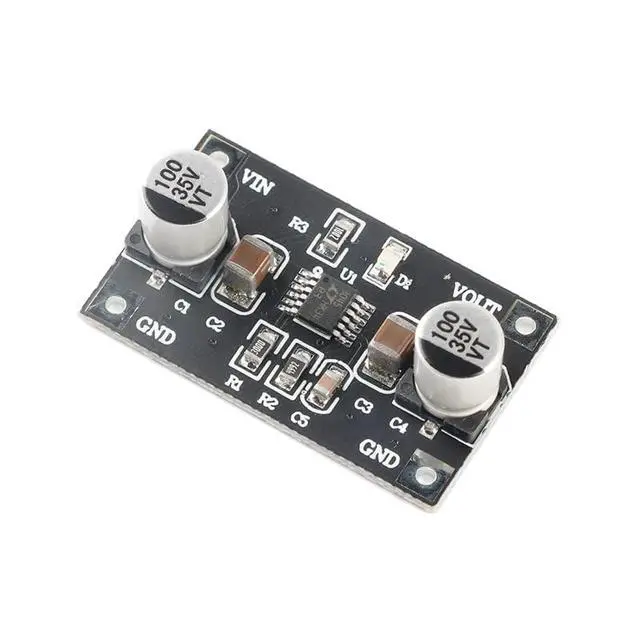

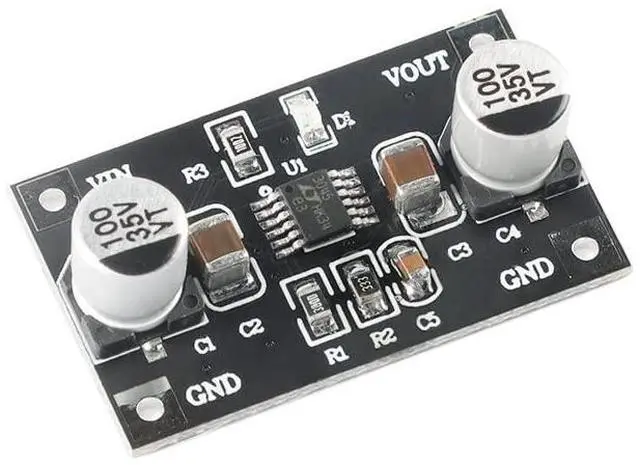

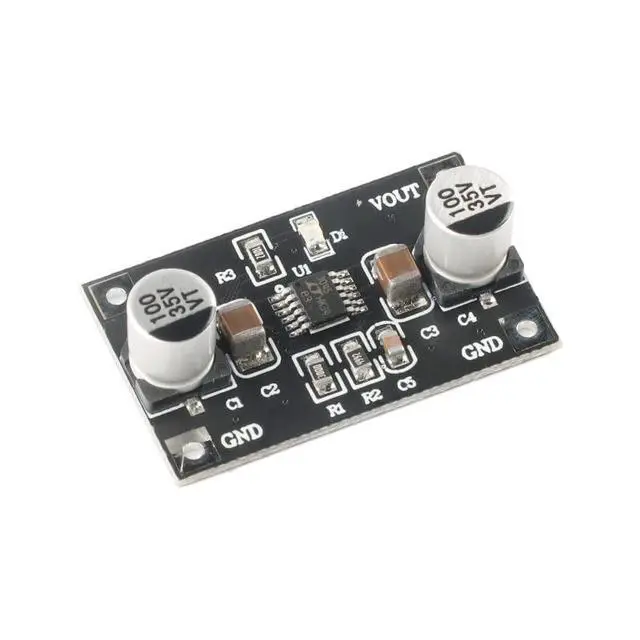

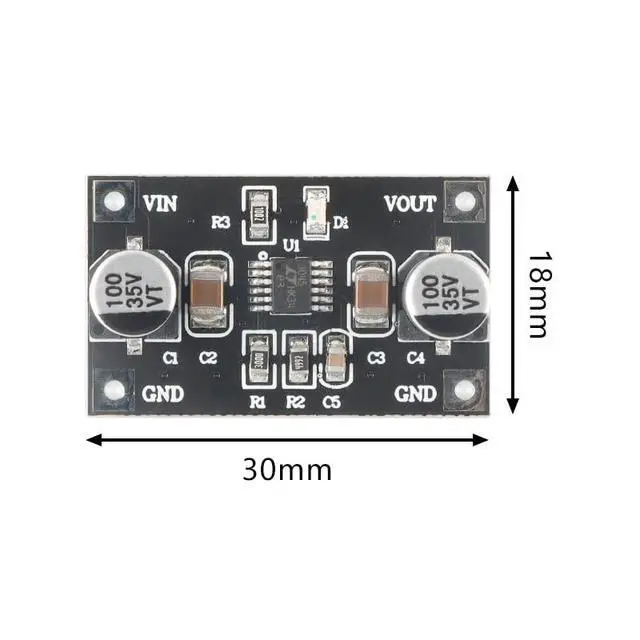

LT3045 3.3V Linear Voltage Regulator Step-Down Module Single Power Supply Transformer Module Output 3.3V 500mA
- The LT3045 is a high performance low dropout linear regulator featuring LTCs ultralow noise and ultrahigh PSRR architecture for powering noise sensitive applications.; Designed as a precision current reference followed by a high performance voltage buffer, the LT3045 can be easily paralleled to further reduce noise, increase output current and spread heat on the PCB.; The device supplies 500mA at a typical 260mV dropout voltage. Operating quiescent current is nominally 2.2mA and drops to <1µA in shutdown. The LT3045's wide output voltage range (0V to 15V) while maintaining unity-gain operation provides virtually constant output noise, PSRR, bandwidth, and load regulation, independent of the programmed output voltage.; The regulator features programmable current limit, fast start-up capability and programmable power good to indicate output voltage regulation.; The LT3045 is stable with a minimum 10µF ceramic output capacitor. Built-in protection includes reverse-battery protection, reverse-current protection, internal current limit with foldback and thermal limit with hysteresis.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. Features 1.
Ultralow RMS Noise: 0.8 µVRMS (10Hz to 100kHz) 2.
Ultralow Spot Noise: 2nV/Hz at 10kHz
3.
Ultrahigh PSRR: 76dB at 1MHz
4.
Output Current: 500mA
5.
Wide Input Voltage Range: 1.8V to 20V
6. Single Capacitor Improves Noise and PSRR 7.
100µA SET Pin Current: ±1% Initial Accuracy
8. Single Resistor Programs Output Voltage
9.
High Bandwidth: 1MHz
10. Programmable Current Limit
11.
Low Dropout Voltage: 260mV
12.
Output Voltage Range: 0V to 15V
13. Programmable Power Good 14. Fast Start-Up Capability
15. Precision Enable/UVLO
16. Parallelable for Lower Noise and Higher Current
17. Internal Current Limit with Foldback
18.
Minimum Output Capacitor: 10µF Ceramic
19. Reverse-Battery and Reverse-Current Protection Applications 1.
RF Power Supplies: PLLs, VCOs, Mixers, LNAs, PAs
2. Very Low Noise Instrumentation
3. High Speed/High Precision Data Converters
4. Precision Power Supplies
5. Post-Regulator for Switching Supplies
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. Features 1.
Ultralow RMS Noise: 0.8 µVRMS (10Hz to 100kHz) 2.
Ultralow Spot Noise: 2nV/Hz at 10kHz
3.
Ultrahigh PSRR: 76dB at 1MHz
4.
Output Current: 500mA
5.
Wide Input Voltage Range: 1.8V to 20V
6. Single Capacitor Improves Noise and PSRR 7.
100µA SET Pin Current: ±1% Initial Accuracy
8. Single Resistor Programs Output Voltage
9.
High Bandwidth: 1MHz
10. Programmable Current Limit
11.
Low Dropout Voltage: 260mV
12.
Output Voltage Range: 0V to 15V
13. Programmable Power Good 14. Fast Start-Up Capability
15. Precision Enable/UVLO
16. Parallelable for Lower Noise and Higher Current
17. Internal Current Limit with Foldback
18.
Minimum Output Capacitor: 10µF Ceramic
19. Reverse-Battery and Reverse-Current Protection Applications 1.
RF Power Supplies: PLLs, VCOs, Mixers, LNAs, PAs
2. Very Low Noise Instrumentation
3. High Speed/High Precision Data Converters
4. Precision Power Supplies
5. Post-Regulator for Switching Supplies
