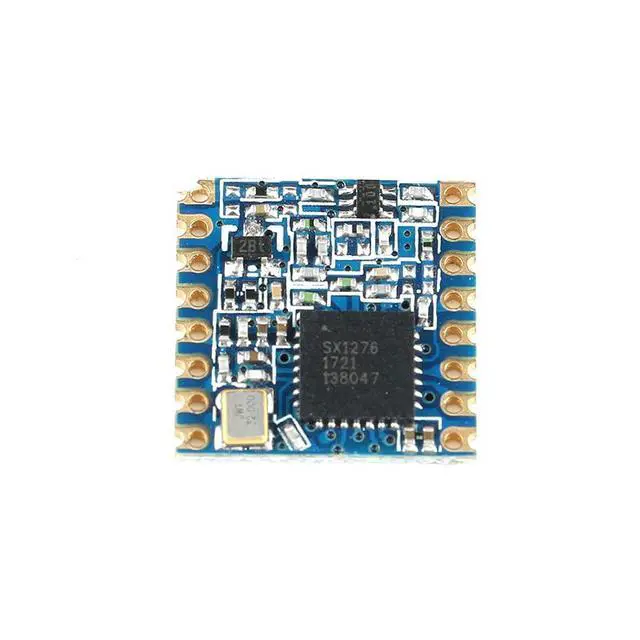

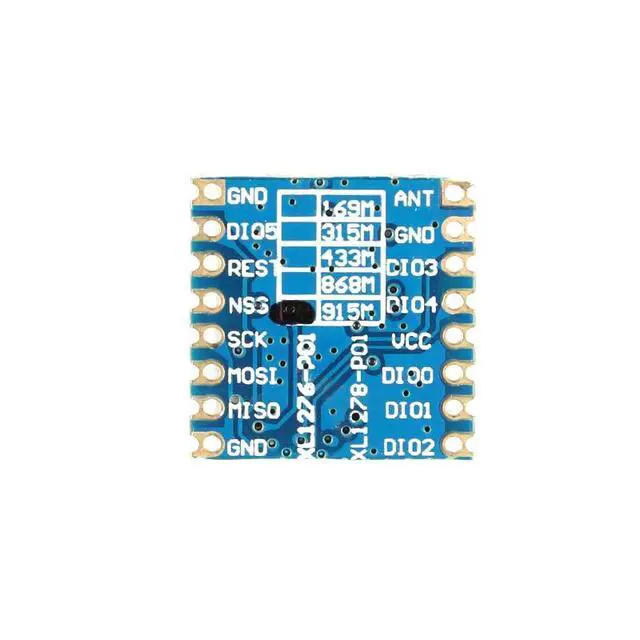

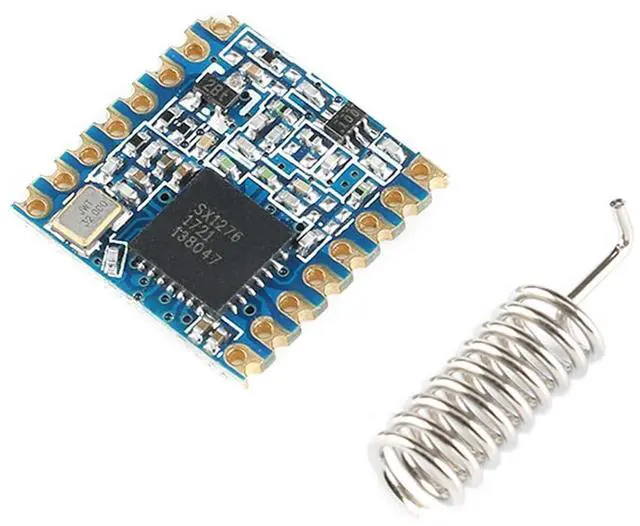

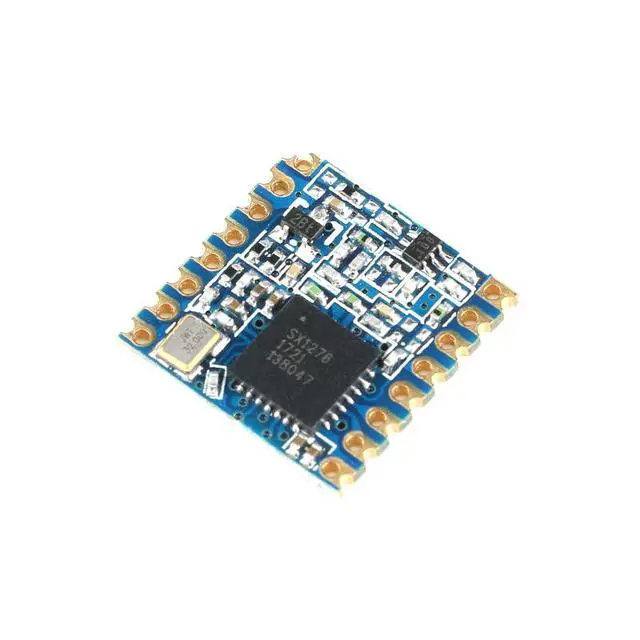

XL1276-P01 Wireless LoRa Transceiver Module, SPI Connectivity, Long Distance Data Transmission
- XL1276-P01 uses the spread spectrum chip sx1276, which has the advantages of low power consumption, large capacity, long transmission distance, and strong anti-interference ability. The transmission power, working frequency, modulation rate, and other parameters of the module can be configured by the single-chip computer.; Based on the SPI interface mode, it is very convenient for various MCU connections. It can do all kinds of wireless and two-way data receiving and sending. The single-chip computer controls the wireless module to transmit, receive data or sleep through SPI.; The wireless module receives data through the NIRQ port to notify the single-chip computer to receive, and the single-chip computer reads the data received by the wireless module through the SPI interface.; The module can be easily embedded into the design of customers' existing products or systems. The standard SPI interface makes communication easy. Customers only need to compile a simple communication protocol in the original micro-control device to realize two-way communication and data transmission.; This module applies to any wireless data transmission application with complex environments, such as wireless meter reading, smart home control, automotive electronics, security alarm, industrial monitoring, and control system, remote agricultural irrigation control system, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Information
Frequency band: 915MHZ
Module size: 16*16mm interface spacing 2.0 mm
Output power: 20dBm/100mW
Emission current: 120mA@100mw/ 3.3V
Receiving sensitivity: -139dBm@146B
Receiving current: 10mA/ 3.3V
Modulation mode: LORA/GFSK
Sleep current: 0.2 uA
Data interface: four-wire SPI
Frequency error: +/-5KHZ Module function FSK/GFKS technology, LoRa (remote) spread spectrum technology Half-duplex communication
Super anti-interference (channel rejection ratio: 56db) High receiving sensitivity - 139dbm ISM multi-band, no need to apply for frequency, free use Multi-frequency optional, multiple transmission rates Intelligent reset, low voltage monitoring, timed wake-up, low power consumption mode, sleep mode
Low power consumption acceptance current: 10-12mA 56-bit FIFO TX/RX RSSI channel detection function
Transmission mode: FIFO/direct mode (FIFO packet mode is recommended)
Configuration: AFC/wake-up in the air function/low power consumption/carrier interception/FEC error correction/AEC encryption The distance of ultra-long distance transmission is up to 3km
Module size: 16 * 16 * 3mm
Frequency band: 915MHZ
Module size: 16*16mm interface spacing 2.0 mm
Output power: 20dBm/100mW
Emission current: 120mA@100mw/ 3.3V
Receiving sensitivity: -139dBm@146B
Receiving current: 10mA/ 3.3V
Modulation mode: LORA/GFSK
Sleep current: 0.2 uA
Data interface: four-wire SPI
Frequency error: +/-5KHZ Module function FSK/GFKS technology, LoRa (remote) spread spectrum technology Half-duplex communication
Super anti-interference (channel rejection ratio: 56db) High receiving sensitivity - 139dbm ISM multi-band, no need to apply for frequency, free use Multi-frequency optional, multiple transmission rates Intelligent reset, low voltage monitoring, timed wake-up, low power consumption mode, sleep mode
Low power consumption acceptance current: 10-12mA 56-bit FIFO TX/RX RSSI channel detection function
Transmission mode: FIFO/direct mode (FIFO packet mode is recommended)
Configuration: AFC/wake-up in the air function/low power consumption/carrier interception/FEC error correction/AEC encryption The distance of ultra-long distance transmission is up to 3km
Module size: 16 * 16 * 3mm
