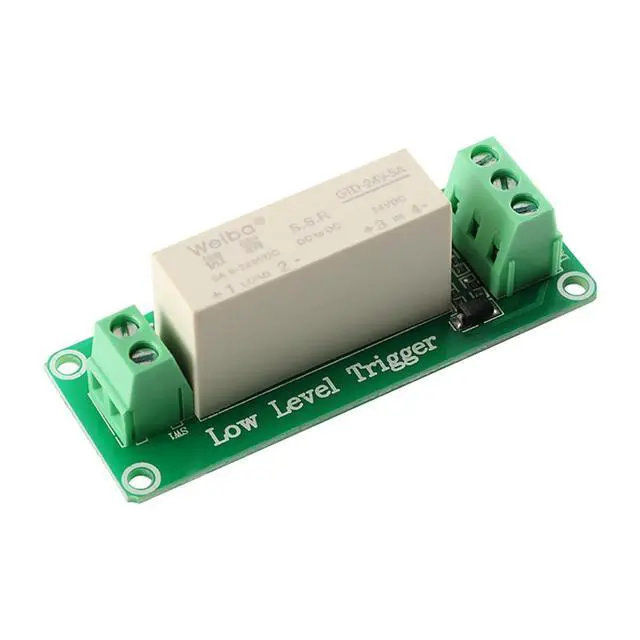

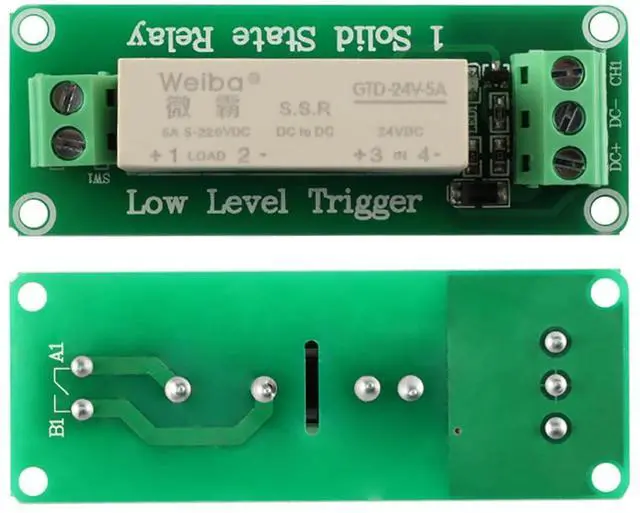

24V 1 Channel Solid State Relay Module, Low Level Trigger, 5A DC Control for Raspberry Pi
- **Compatible with Raspberry Pi:** Perfect for hobbyists and professionals, this 24V 1 Channel Solid State Relay Module seamlessly integrates with Raspberry Pi projects, offering reliable DC control.; **Efficient Low-Level Trigger:** Designed to trigger with a minimal current >2mA, this relay ensures efficient operation, making it ideal for automated control circuits and safety applications.; **Durable & Reliable Solid State Design:** Unlike traditional relays, our solid state relay provides enhanced durability, reliability, and a high load capacity of 5A at 5-220VDC, perfect for long-term projects.; **Versatile Applications:** Whether you're working on home automation, industrial control, or DIY electronics, this module provides a robust solution for controlling DC loads with precision.; **Safety & Performance Assured:** Built with protective diodes and designed for optimal performance in various environments, this relay ensures safety and longevity, backed by easy heat dissipation and a high switching frequency of 5KHz.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description Trigger voltage 5V low level trigger module: 0-1. 5VDC relay is turned on (ON), 3-5VDC Relay off (OFF) 12V low level trigger module: 0-4. 5VDC relay on (ON), 5. 5-12VDC relay off (OFF) 24V low level trigger module: 0-8. 5VDC relay connected (ON) 10-24VDC relay disconnected (OFF) The relay is controlled by the terminal A and B port is just a switch. It should be noted that the A port is connected to the positive pole of the power supply, and the B port is connected to the positive pole of the required equipment. If A and B are connected reversely, the relay will not be controlled!
Note: The CH terminal is the trigger terminal of the module. When there is a trigger signal, the output switches (A, B) of the solid state relay will be closed, and the load will be turned on.
Trigger mode: low level trigger
Power supply voltage: 5V/12V/24V
Maximum working current: 1 way 12.5 mA/2 way 20.5 mA
Trigger current: > 2mA
Maximum switching frequency: 5KHz
Quiescent current: 0mA
Product positioning hole: 1 way 24.5 * 69.5 mm/2 way 36.5 * 69.5 mm
Load voltage: 5-220VDC Clear pin descriptions for easy
installation Load current: 5A Secure relay control with A and B port connections Versatile module with up to four trigger signal terminals (CH1-CH4) Pin description
DC+: positive supply voltage
DC-: negative supply voltage
CH1: The first trigger signal terminal
CH2: The second trigger signal terminal
CH3: The third trigger signal terminal
CH4: The fourth trigger signal terminal Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 315 4.6 out of 5 stars 104 4.9 out of 5 stars 22 4.6 out of 5 stars 104 4.9 out of 5 stars 9 4.6 out of 5 stars 104 4.8 out of 5 stars 15 Model P/N B-30-1000 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 External Wire Diameter 0.56 mm 0.56 mm 0.5 mm 0.56 mm 0.8 mm 0.56 mm 0.3 mm Core Sectional Area 0.2 mm² 0.2 mm² none 0.2 mm² none 0.2 mm² none Material PVC PVC solder PVC solder PVC solder Wire Gauge 30AWG 30AWG none 30AWG none 30AWG none Temperature 105 113 183 107 183 112 183 See More
Note: The CH terminal is the trigger terminal of the module. When there is a trigger signal, the output switches (A, B) of the solid state relay will be closed, and the load will be turned on.
Trigger mode: low level trigger
Power supply voltage: 5V/12V/24V
Maximum working current: 1 way 12.5 mA/2 way 20.5 mA
Trigger current: > 2mA
Maximum switching frequency: 5KHz
Quiescent current: 0mA
Product positioning hole: 1 way 24.5 * 69.5 mm/2 way 36.5 * 69.5 mm
Load voltage: 5-220VDC Clear pin descriptions for easy
installation Load current: 5A Secure relay control with A and B port connections Versatile module with up to four trigger signal terminals (CH1-CH4) Pin description
DC+: positive supply voltage
DC-: negative supply voltage
CH1: The first trigger signal terminal
CH2: The second trigger signal terminal
CH3: The third trigger signal terminal
CH4: The fourth trigger signal terminal Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 315 4.6 out of 5 stars 104 4.9 out of 5 stars 22 4.6 out of 5 stars 104 4.9 out of 5 stars 9 4.6 out of 5 stars 104 4.8 out of 5 stars 15 Model P/N B-30-1000 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 External Wire Diameter 0.56 mm 0.56 mm 0.5 mm 0.56 mm 0.8 mm 0.56 mm 0.3 mm Core Sectional Area 0.2 mm² 0.2 mm² none 0.2 mm² none 0.2 mm² none Material PVC PVC solder PVC solder PVC solder Wire Gauge 30AWG 30AWG none 30AWG none 30AWG none Temperature 105 113 183 107 183 112 183 See More
