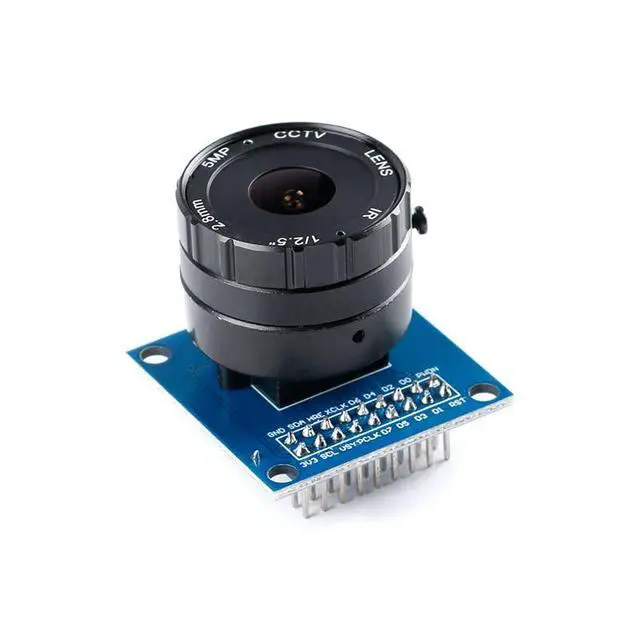

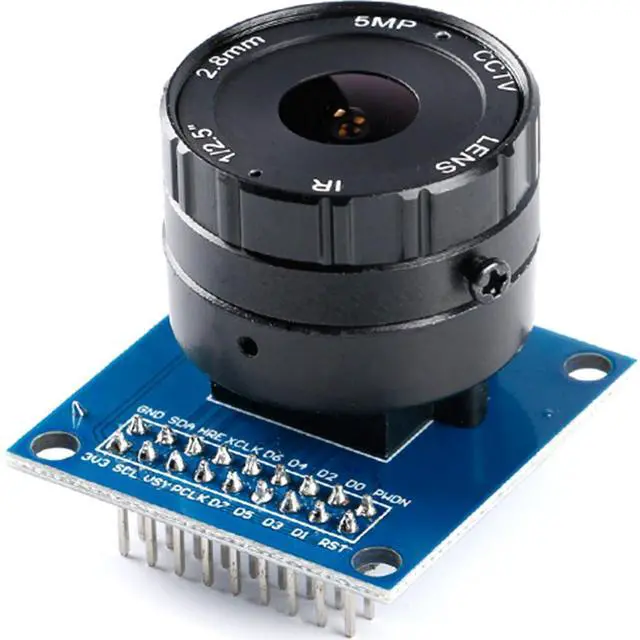

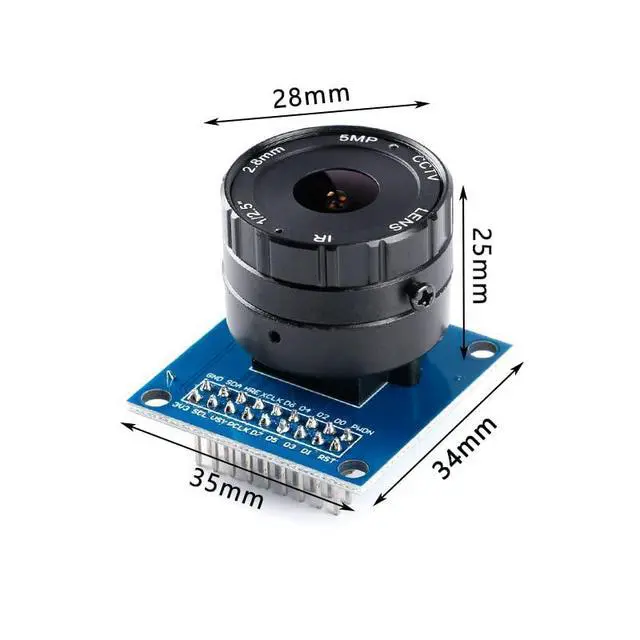

OV7670 Camera Module 3.3V with Adjustable Macro, Universal CS Adapter, SCCB IIC Interface, RGB YUV Output for DIY Projects
Limited time offer, ends 09/06 By SlotNeat
- **Enhanced Low-Light Performance:** Our OV7670 camera module offers high sensitivity, making it ideal for low illumination applications and ensuring clear images even in dimly lit environments.; **Versatile Output Formats:** Supports multiple formats including RawRGB, RGB, YUV, and YCbCr, allowing for flexibility in image processing and compatibility with various projects.; **Comprehensive Automatic Controls:** Features automatic exposure, gain, white balance, and noise reduction, ensuring optimal image quality with minimal manual adjustments required.; **Adjustable Macro Lens:** Equipped with a 12mm focal length CS lens, providing a closer focus range ideal for macro photography, with manual focus control for precision.; **Seamless Integration:** Compatible with both SCCB and I2C interfaces, this camera module is perfect for embedded applications, offering easy integration into your DIY electronics projects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Description:
Features: High sensitivity suitable for low illumination applications Low voltage suitable for embedded applications Standard SCCB interface, compatible with I2C interface RawRGB, RGB
(GRB 4:2: 2, RGB565/555/444), YUV
( 4:2: 2) and
YCbCr ( 4:2: 2) output formats Support VGA, CIF, and various sizes from CIF to 40x30 VarioPixel sub-sampling method
Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control includes color saturation, hue, gamma, sharpness ANTI_BLOOM ISP has the function of noise elimination and dead pixel compensation Support image zoom Lens loss compensation 50/60HZ automatic detection Saturation automatic adjustment (UV adjustment) Edge enhancement automatic adjustment Noise reduction automatic adjustment
Lens Parameters:
Specification: 1/3
Interface: CS
Focal length: 12mm
Aperture: 1.6
Viewing angle: 25
Focus: Manual
Aperture: fixed
Pin Definition: 3V3--input power supply voltage ( 3.3V is recommended, 5V is also possible, but not recommended) GDN--Ground SIO_ C--Control clock of
SCCB interface (note: some low-level MCUs need pull-up control, similar to I2C interface) SIO _ D--The serial data input (output) end of the
SCCB interface (note: some low-level microcontrollers require pull-up control, similar to I2C interface) VSYNC--frame synchronization signal (output signal) HREF-line synchronization signal (output signal) PCLK--pixel clock (output signal) D0-D7--data port (output signal) RESTE--reset port (pull high for normal use) PWDN--power consumption selection mode (normal use pull down)
Features: High sensitivity suitable for low illumination applications Low voltage suitable for embedded applications Standard SCCB interface, compatible with I2C interface RawRGB, RGB
(GRB 4:2: 2, RGB565/555/444), YUV
( 4:2: 2) and
YCbCr ( 4:2: 2) output formats Support VGA, CIF, and various sizes from CIF to 40x30 VarioPixel sub-sampling method
Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control includes color saturation, hue, gamma, sharpness ANTI_BLOOM ISP has the function of noise elimination and dead pixel compensation Support image zoom Lens loss compensation 50/60HZ automatic detection Saturation automatic adjustment (UV adjustment) Edge enhancement automatic adjustment Noise reduction automatic adjustment
Lens Parameters:
Specification: 1/3
Interface: CS
Focal length: 12mm
Aperture: 1.6
Viewing angle: 25
Focus: Manual
Aperture: fixed
Pin Definition: 3V3--input power supply voltage ( 3.3V is recommended, 5V is also possible, but not recommended) GDN--Ground SIO_ C--Control clock of
SCCB interface (note: some low-level MCUs need pull-up control, similar to I2C interface) SIO _ D--The serial data input (output) end of the
SCCB interface (note: some low-level microcontrollers require pull-up control, similar to I2C interface) VSYNC--frame synchronization signal (output signal) HREF-line synchronization signal (output signal) PCLK--pixel clock (output signal) D0-D7--data port (output signal) RESTE--reset port (pull high for normal use) PWDN--power consumption selection mode (normal use pull down)
