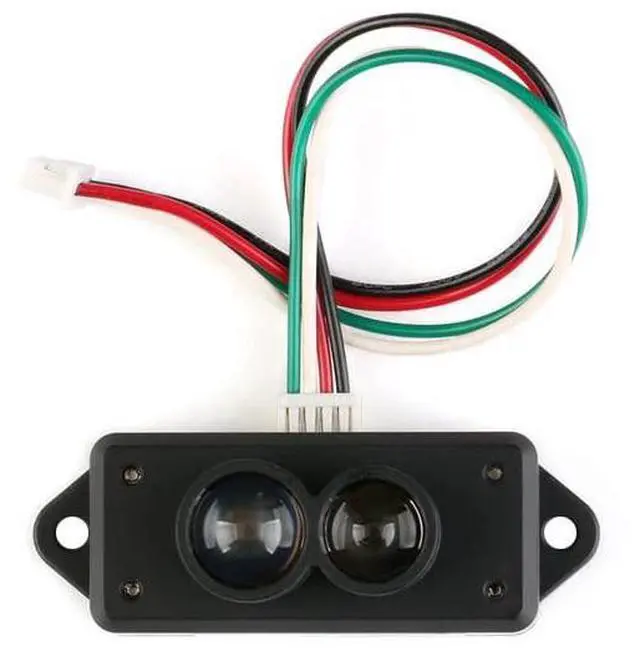

TFmini-S Lidar Sensor 0.1-12M ToF Laser Ranging Sensor Module High Frame Rate 1000Hz Single Point Lidar Ranging Module UART I2C I/O Serial Output for Arduino Raspberry Pi
- TFmini-S is a single-point ranging radar based on TFmini upgrade. The blind area is reduced to 10cm, the outdoor ranging performance is further improved, and the ranging accuracy of different reflectivity is optimized, which can realize stable, accurate, highly sensitive and high-speed distance measurement.; Small size, light weight, low power consumption, high frame rate (up to 1000Hz output frequency); Measurement range: 0.1m ~ 12m @ 90% reflectivity, Frame rate: 1-1000Hz, Light source: VCSEL, Power supply voltage: 5V ± 0.1V; Built-in a variety of adaptation algorithms, a variety of adjustable configurations and parameters, in complex environments with excellent ranging performance, to meet the needs of customers in complex application scenarios.; Suitable for smart home, pedestrian detection, vehicle detection, barrier anti-smashing, altimeter, intelligent robot
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs.
Center wavelength: 850nm
Human eye safety: Class1 (EN60825)
Field of view angle: 2
Power supply voltage: 5V ± 0.1V
Average current: 140mA
Average current: 140mA
Power consumption: 0.7W
Peak current: 200mA
Communication level: LVTTL( 3.3V )
Communication interface: UART, I2C, I/O
Size: 42mm * 15mm * 16mm (length * width * height)
Shell material: PC/ABS
Storage temperature: -20 ~ 75
Line length: 10cm Specification
Measurement range: 0.1 m ~ 12m @ 90% reflectivity/ 0.1 ~7m @10% reflectivity
Accuracy: 6cm @( 0.1 -6m)/1% @(6m-12m)
Distance resolution: 1cm
Frame rate: 1-1000Hz (default 100Hz)
Anti-ambient light capability: 70Klux
Operating temperature: 0 ~ 60
Light source: VCSEL What is the measuring range of TFmini-S? What interfaces does it support? Is it suitable for outdoor use? What power supply does it need? What applications is it used for? Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 4 Cell 18650 Battery Box Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 315 4.6 out of 5 stars 104 4.6 out of 5 stars 73 4.6 out of 5 stars 104 4.9 out of 5 stars 9 4.6 out of 5 stars 104 4.8 out of 5 stars 15 Model P/N B-30-1000 P/N B-30-1000 none P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 External Wire Diameter 0.56 mm 0.56 mm none 0.56 mm 0.8 mm 0.56 mm 0.3 mm Core Sectional Area 0.2 mm² 0.2 mm² none 0.2 mm² none 0.2 mm² none Material PVC PVC none PVC solder PVC solder Wire Gauge 30AWG 30AWG none 30AWG none 30AWG none Temperature 105 113 none 107 183 112 183
Center wavelength: 850nm
Human eye safety: Class1 (EN60825)
Field of view angle: 2
Power supply voltage: 5V ± 0.1V
Average current: 140mA
Average current: 140mA
Power consumption: 0.7W
Peak current: 200mA
Communication level: LVTTL( 3.3V )
Communication interface: UART, I2C, I/O
Size: 42mm * 15mm * 16mm (length * width * height)
Shell material: PC/ABS
Storage temperature: -20 ~ 75
Line length: 10cm Specification
Measurement range: 0.1 m ~ 12m @ 90% reflectivity/ 0.1 ~7m @10% reflectivity
Accuracy: 6cm @( 0.1 -6m)/1% @(6m-12m)
Distance resolution: 1cm
Frame rate: 1-1000Hz (default 100Hz)
Anti-ambient light capability: 70Klux
Operating temperature: 0 ~ 60
Light source: VCSEL What is the measuring range of TFmini-S? What interfaces does it support? Is it suitable for outdoor use? What power supply does it need? What applications is it used for? Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 4 Cell 18650 Battery Box Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 315 4.6 out of 5 stars 104 4.6 out of 5 stars 73 4.6 out of 5 stars 104 4.9 out of 5 stars 9 4.6 out of 5 stars 104 4.8 out of 5 stars 15 Model P/N B-30-1000 P/N B-30-1000 none P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 External Wire Diameter 0.56 mm 0.56 mm none 0.56 mm 0.8 mm 0.56 mm 0.3 mm Core Sectional Area 0.2 mm² 0.2 mm² none 0.2 mm² none 0.2 mm² none Material PVC PVC none PVC solder PVC solder Wire Gauge 30AWG 30AWG none 30AWG none 30AWG none Temperature 105 113 none 107 183 112 183
