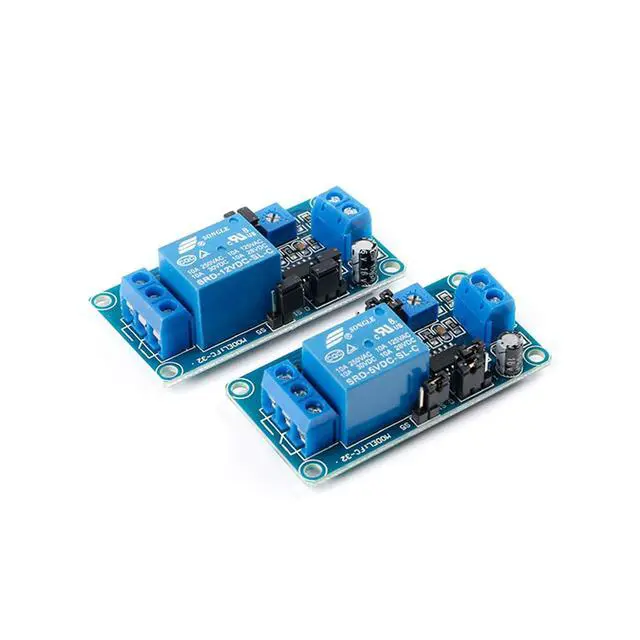

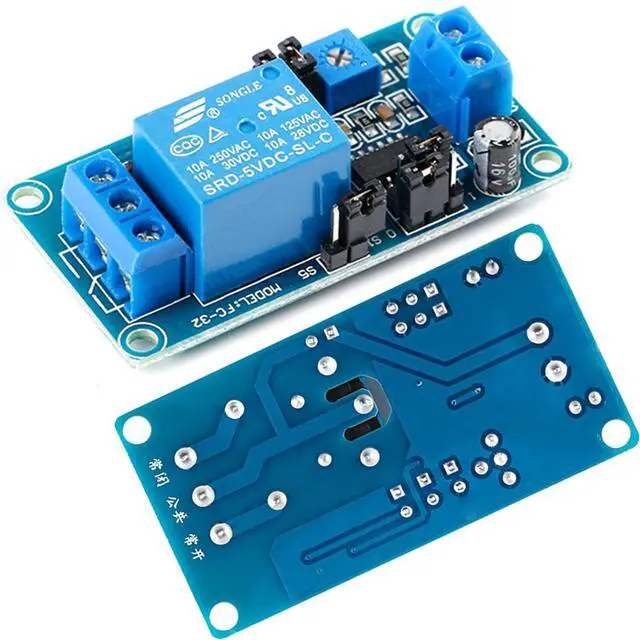

5V Power On Time Delay Relay Module, Adjustable Delay Timer Circuit Board, for Automation Projects

Product description Description The 5V/12V delay relay module uses high-quality relays with a maximum current of 10A. The module uses double-sided FR-4 PCB boards. The overall module layout is reasonable and beautiful. Use original high-performance delay chip, better performance. With a delay adjustment potentiometer, the shortest is 0.1S, the longest can be up to 1 hour, and it has a protection diode against power reverse connection, which can effectively protect the product. The module can be used in various control situations such as driving recorder, GPS start protection, household appliances, electronic equipment protection, PLC control, industrial control, electronic experiment, for arduino robot, etc.

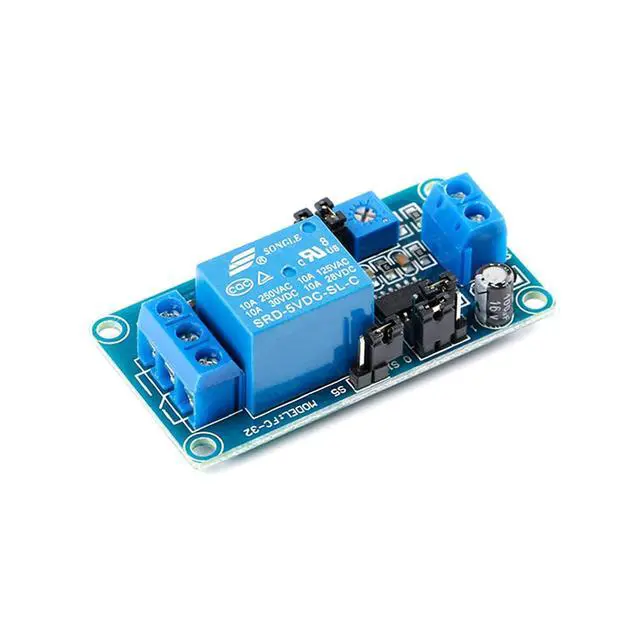

Note: When the relay controls AC 220V or other DC power supply voltage greater than the VCC terminal, the jumper cap S5 cannot be inserted. If S5 is inserted in this case, the high voltage will flow back into the module, which will burn the module.
Instructions for use: When the relay is in pull-in, the common terminal is connected to the normally open terminal, and both ends of the load have electricity to work. When the relay is off, the common terminal is connected to the normally closed terminal, and the load does not work without electricity. Load current capacity of 10A Maximum current of 10A for versatile applications High-performance delay chip for better performance FR-4 PCB boards Protection diode against power reverse connection Suitable for driving recorders and GPS start protection Delay from 0.1 s to 1 hour for household appliances and electronic equipment protection Compatible with Arduino robots and electronic experiments Useful for PLC Relay life exceeding 100, 000 timesM aximum switching frequency of 5KHz Current of 2.5 mA/ 5.5 mA Compact size of 57*30* 18.5 mm Load voltage of DC 30V or AC 250V Parameters Delay relay module power-on delay
Supply voltage: 5V/12V
Quiescent current: 2.5 mA/ 5.5 mA
Maximum working current: 70mA/42mA
Load voltage: DC 30V or AC 250V
Load current: 10A
Relay life: more than 100, 000 times
Maximum switching frequency: 5KHz
Product weight: about 22g

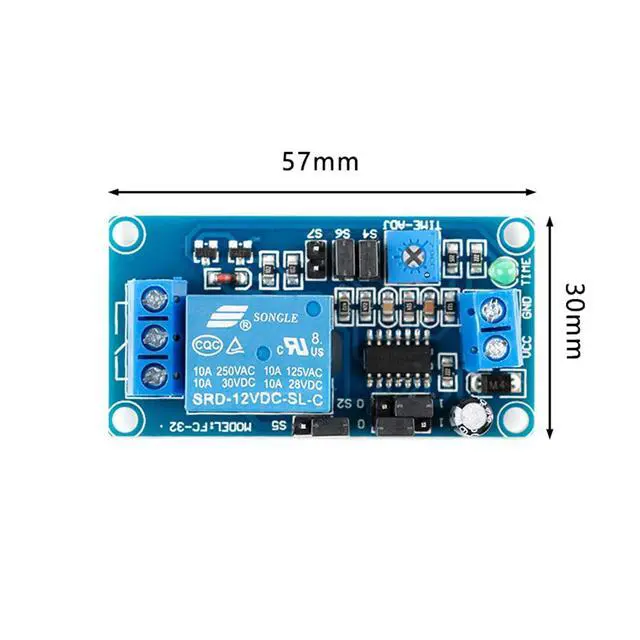

Structure size: 57*30* 18.5 mm (length * width * height) Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 315 4.6 out of 5 stars 104 4.9 out of 5 stars 22 4.6 out of 5 stars 104 4.9 out of 5 stars 9 4.6 out of 5 stars 104 4.8 out of 5 stars 15 Model P/N B-30-1000 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 External Wire Diameter 0.56 mm 0.56 mm 0.5 mm 0.56 mm 0.8 mm 0.56 mm 0.3 mm Core Sectional Area 0.2 mm² 0.2 mm² none 0.2 mm² none 0.2 mm² none Material PVC PVC solder PVC solder PVC solder Wire Gauge 30AWG 30AWG none 30AWG none 30AWG none Temperature 105 113 183 107 183 112 183
