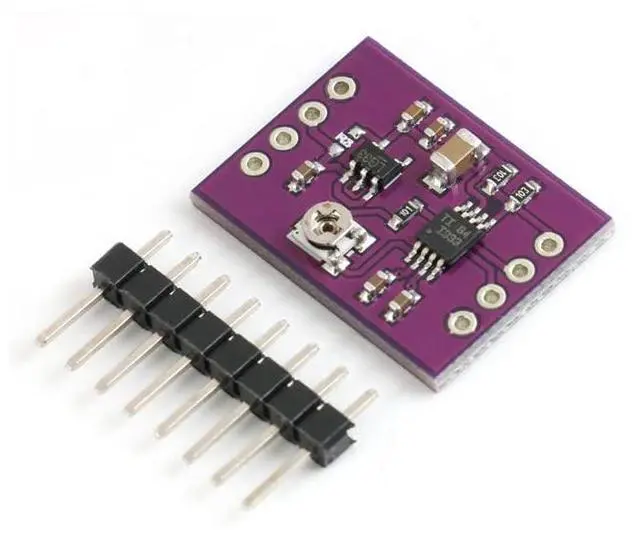

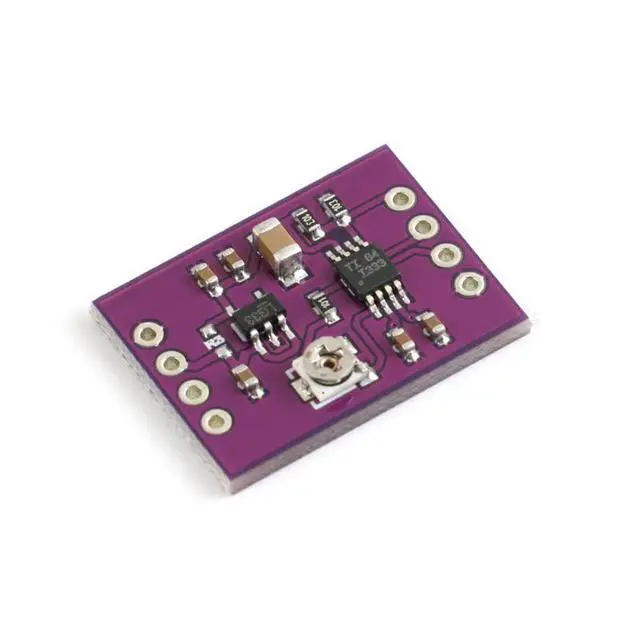

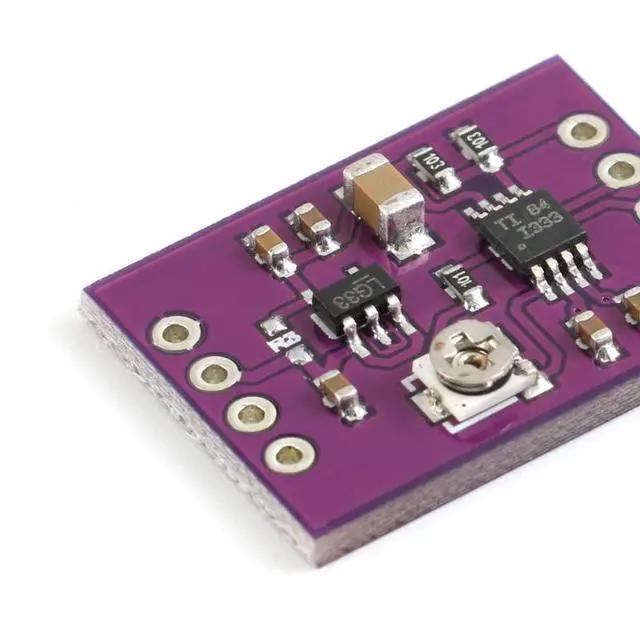

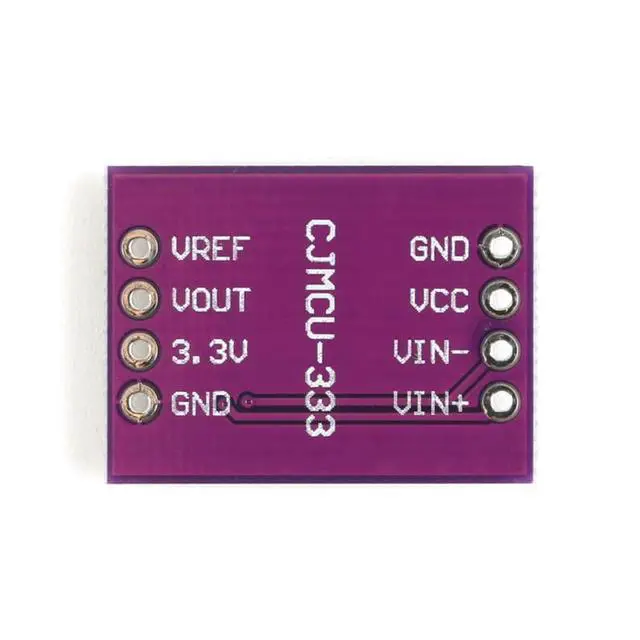

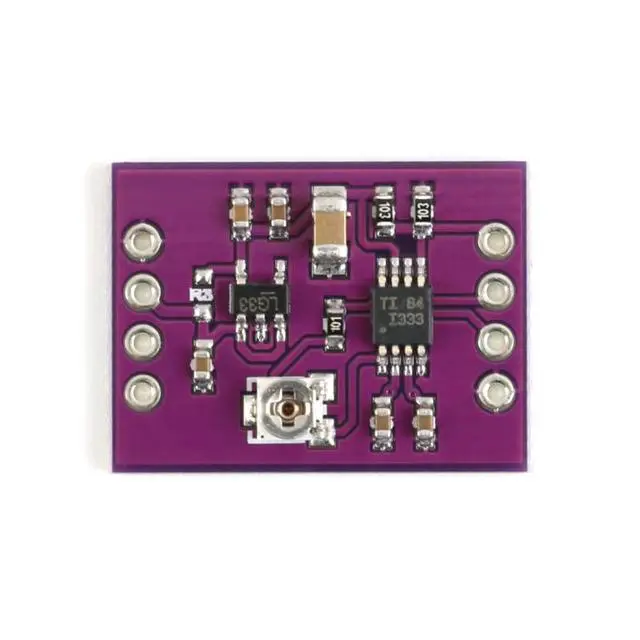

INA333 Amplifier Module 3 Operational Amplifier INA333 Low Power Precision Instrumentation Amplifier Module Board
- The INA333 device is a low-power precision instrumentation amplifier with excellent accuracy. The device adopts a universal three-operational amplifier design, and has a small size and low power consumption characteristics, which is very suitable for various portable applications.; The gain can be set in the range of 1 to 1000 through a single external resistor. INA333 is designed to use an industry standard gain formula: G = 1 (100k/RG).; INA333 device has ultra-low offset voltage (25 V, G 100), excellent offset voltage drift (0.1 V/°C, G 100), and high common mode rejection ratio (100dB, G 10).; Low offset voltage: 25 µV (maximum), G 100, Low drift: 0.1 V//°C, G 100, Low noise: 50nV/Hz, G 100, High common mode rejection ratio (CMRR):100dB (minimum), G 10, Power range: 1.8V to 5.5V; Suitable for Bridge amplifier, Electrocardiogram (ECG) amplifier, Pressure sensor, Medical instrument, Portable instrument, Weighing instrument, Thermocouple amplifier , Resistance temperature detector (RTD) sensor amplifier, Data acquisition
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. The device can be operated by a power supply as low as 1.8V (± 0.9V ) with a quiescent current of only 50 A, so it is very suitable for battery-powered systems. The INA333 device uses automatic calibration technology to ensure excellent accuracy in the extended industrial temperature range, while also providing ultra-low noise density (50nV/Hz) that extends down to DC.
Low input bias current: 200pA (maximum) power supply
Input voltage: (V-) + 0.1V to (V+ ) - 0.1V
Output voltage: (V-) + 0.05V to (V+ ) - 0.05V
Low quiescent current: 50
A operating temperature range: -40°C to 125°C Filtered RF interference (RFI) input
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. The device can be operated by a power supply as low as 1.8V (± 0.9V ) with a quiescent current of only 50 A, so it is very suitable for battery-powered systems. The INA333 device uses automatic calibration technology to ensure excellent accuracy in the extended industrial temperature range, while also providing ultra-low noise density (50nV/Hz) that extends down to DC.
Low input bias current: 200pA (maximum) power supply
Input voltage: (V-) + 0.1V to (V+ ) - 0.1V
Output voltage: (V-) + 0.05V to (V+ ) - 0.05V
Low quiescent current: 50
A operating temperature range: -40°C to 125°C Filtered RF interference (RFI) input
