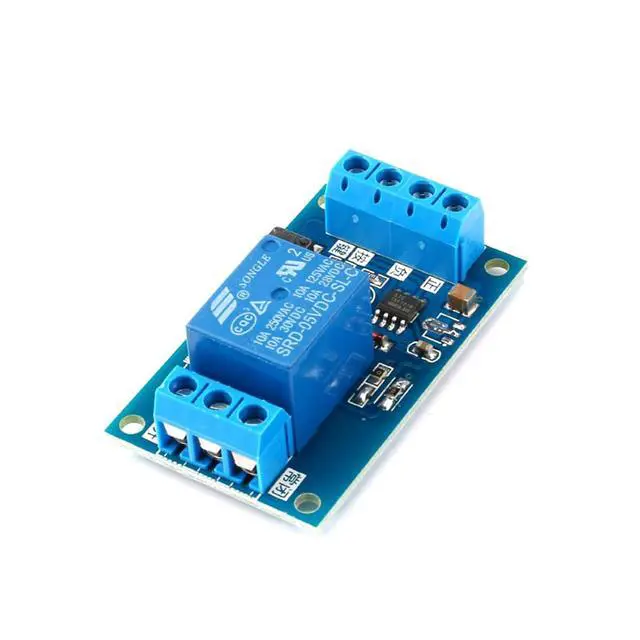

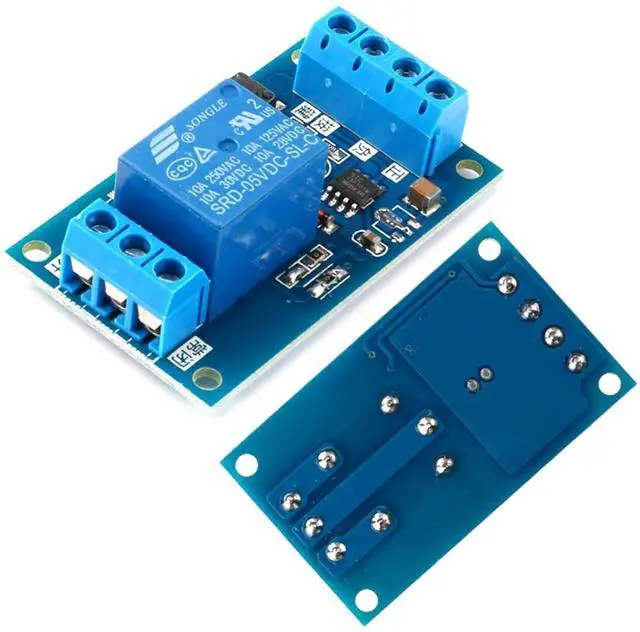

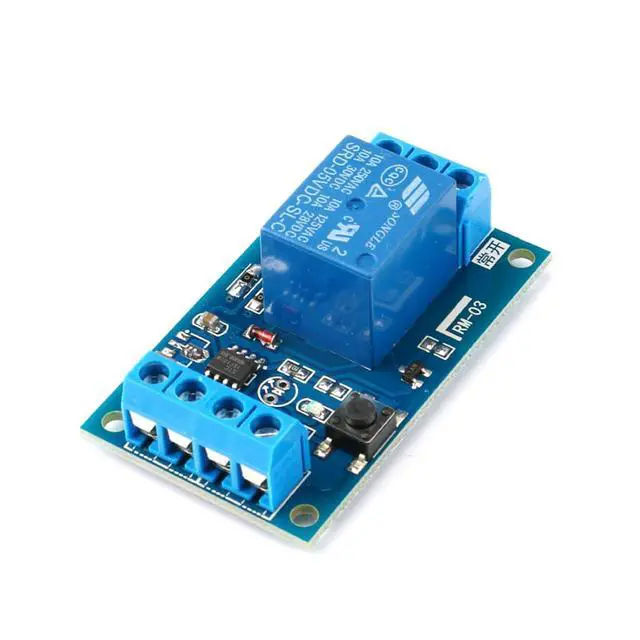

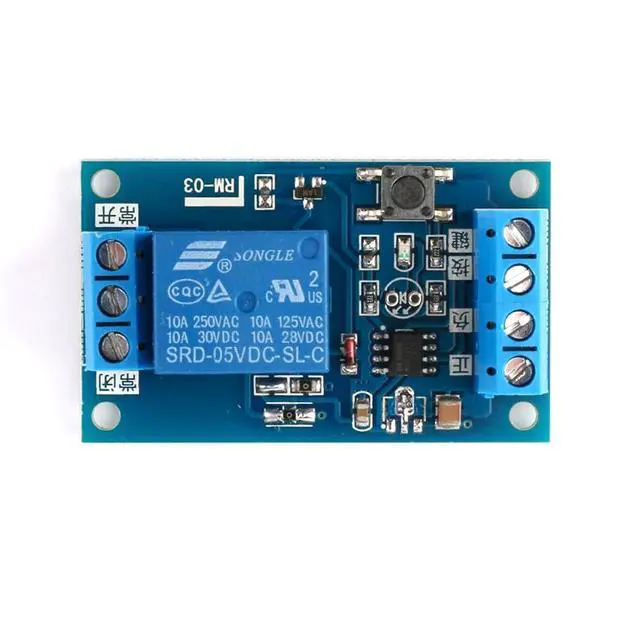

5V Bistable Relay Module Single Key Switch for Automotive Tuning Self-Locking One Touch Start-Stop Button

Product description 5V Introduction Single-key two-stable relay module, power supply positive and negative reversed will burn out, no power supply reversal protection Low level control The signal line and the ground touch is a trigger signal. Automotive 10A Relay Module Single Key Switch Function Self-Locking One Touch Start-Stop Suitable for Automotive Tuning Relay Module with Power Protection Normally Open/Closed Terminal Connection Suitable for Circuit Devices under 10A Low Level Control Trigger Reserved External Pull Lights Position Easy Click to Pull and Disconnect Power On State is Off External Button Option Signal Line and Ground Touch Trigger Welding the Attraction Indication Lamp Positive/Negative Reversal Risk Simple Installation and
Use Module Size: 52.8 mm x 32mm x 18mm Maximum
Current Capacity: 10A No Power Supply Reversal Protection Compatible with Automotive Needs 5V Bistable Relay Module 1
The power supply: 5V 2
Module size: 52.8 mm x 32mm x 18mm 3 According to the board of the key, or an external button to make the relay module to attract or disconnect, click on the pull, and then press the button to disconnect, low level trigger. Power on again when the relay is in off state. 4 The secondary output end of the relay to withstand the maximum current is 10A, that is the maximum working current cannot be accused of a circuit or device is greater than 10A, according to their own needs to be connected to the normally open or normally closed terminal. 5 Reserved external pull lights welding position, and the board has good welding the attraction indication lamp. Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 315 4.6 out of 5 stars 104 4.9 out of 5 stars 22 4.6 out of 5 stars 104 4.9 out of 5 stars 9 4.6 out of 5 stars 104 4.8 out of 5 stars 15 Model P/N B-30-1000 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 External Wire Diameter 0.56 mm 0.56 mm 0.5 mm 0.56 mm 0.8 mm 0.56 mm 0.3 mm Core Sectional Area 0.2 mm² 0.2 mm² none 0.2 mm² none 0.2 mm² none Material PVC PVC solder PVC solder PVC solder Wire Gauge 30AWG 30AWG none 30AWG none 30AWG none Temperature 105 113 183 107 183 112 183
