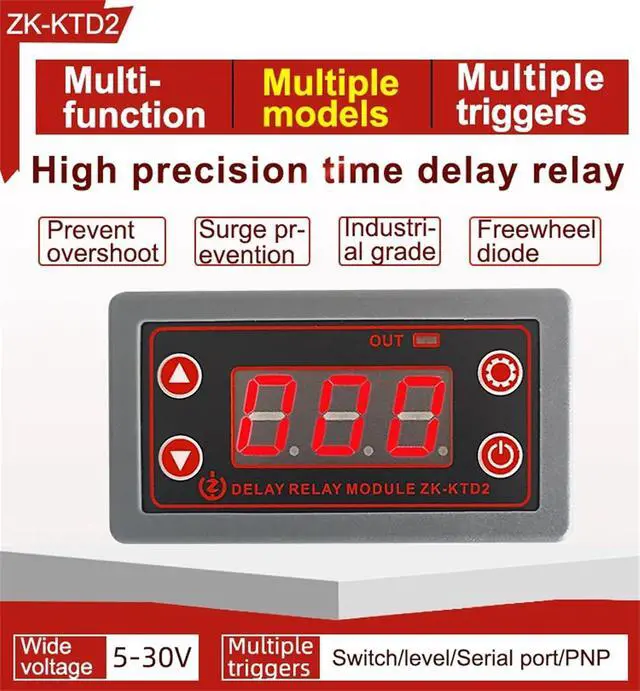

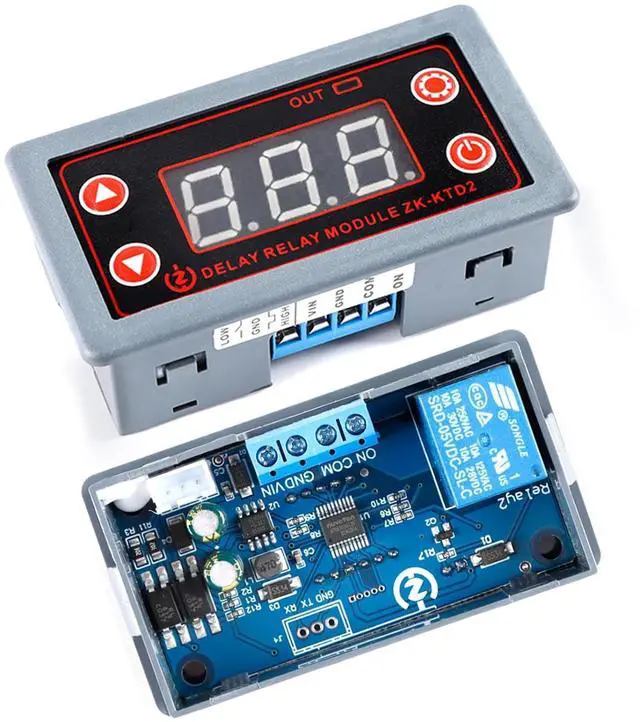

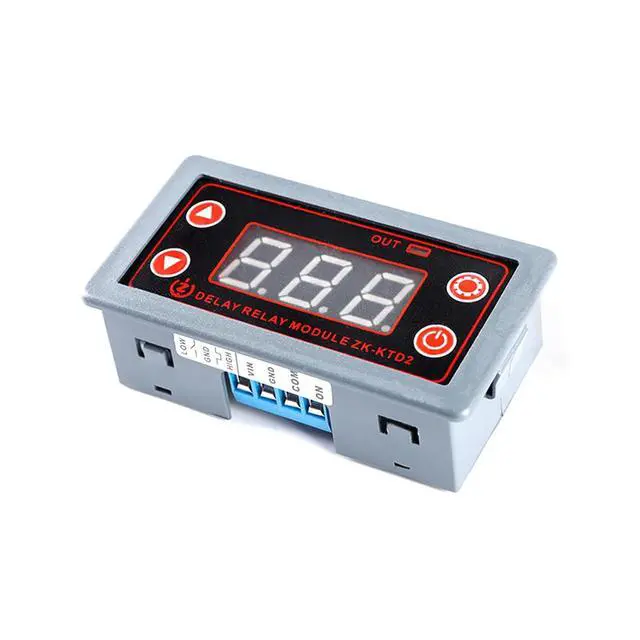

ZK-KTD2 DC 5-30V Delay Relay Module, 5A Multi-Function Timer for Industrial Automation, Compatible with 5V 12V 24V Systems
- **Wide Voltage Compatibility**: Operates on a broad voltage range (5-30V), making it suitable for a variety of equipment and systems, from industrial machinery to home automation.; **User-Friendly Interface**: Simple and intuitive controls with a clear display and emergency STOP button, ensuring ease of use and safety for all users.; **Energy-Saving Sleep Mode**: Automatically enters sleep mode after 3 minutes of inactivity to conserve energy; simply press any key to reactivate.; **Robust Performance & Durability**: Supports high-level and switch triggers, with a 100,000+ cycle lifespan, and operates reliably from -40°C to 85°C, ensuring long-term use in diverse environments.; **Secure & Reliable Operation**: Features optocoupler isolation for enhanced anti-interference capabilities, and automatically saves settings after power-off, ensuring consistent performance and security.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description Product Highlights
1. Wide voltage operation (5~30V), most equipment can be used, very convenient;
2. The interface is clear and simple, powerful, easy to understand, and almost meets all your needs;

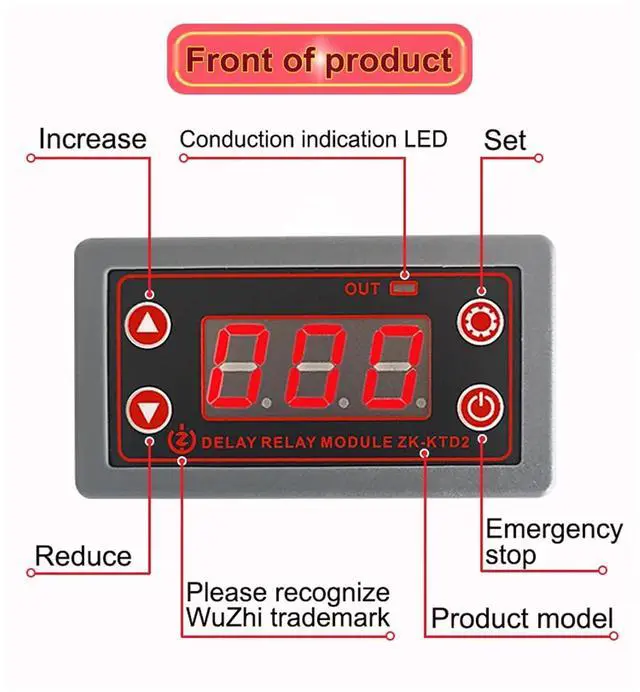

3. There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn;
4. Sleep mode, after enabling, without any operation within 3 minutes, automatically turn off the display; any key to wake up;
5. Different OP, CL, LOP, CLL, CLH parameters can be set, these parameters are mutually. Independent and kept separately;
6. Added serial port communication function to facilitate reading and setting parameters.
7. All set parameters are automatically saved after power-off. Wide Voltage Compatibility Energy-Saving Sleep Mode Robust Performance & Durability Far memory
Special attention: The relay output is a passive contact, a non-charged output, which controls the on-off operation of a line with optocoupler isolation, enhanced anti-interference ability, industrial grade circuit board, set parameters forever after power failure

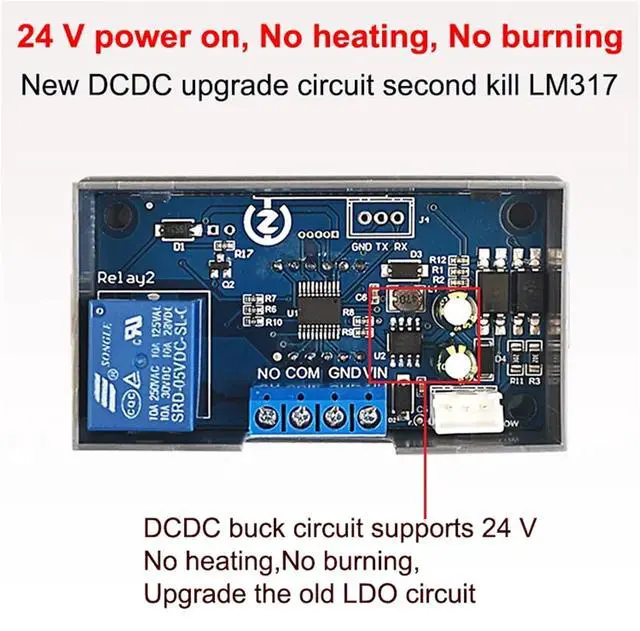

Electrical Parameter Working voltage: DC 5V-30V supports micro USB 5.0V power supply
Trigger signal source: High level trigger (DC 3.0V -24V), Switch trigger, Serial communication trigger
Output capability: can control equipment within DC 30V 5A or AC 220V 5A
Quiescent current: 20mA
Working current: 50mA
Service life: more than 100, 000 times
Working temperature: -40~85C

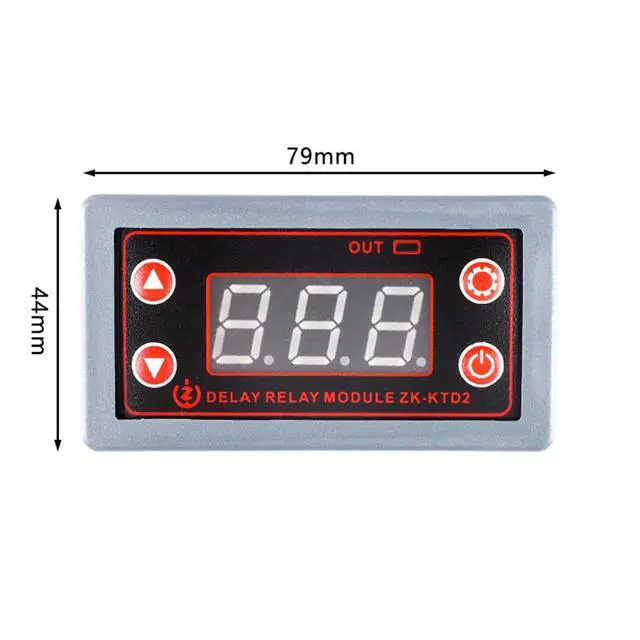

Size: 79*43*27mm Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 315 4.6 out of 5 stars 104 4.9 out of 5 stars 22 4.6 out of 5 stars 104 4.9 out of 5 stars 9 4.6 out of 5 stars 104 4.8 out of 5 stars 15 Model P/N B-30-1000 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 External Wire Diameter 0.56 mm 0.56 mm 0.5 mm 0.56 mm 0.8 mm 0.56 mm 0.3 mm Core Sectional Area 0.2 mm² 0.2 mm² none 0.2 mm² none 0.2 mm² none Material PVC PVC solder PVC solder PVC solder Wire Gauge 30AWG 30AWG none 30AWG none 30AWG none Temperature 105 113 183 107 183 112 183
1. Wide voltage operation (5~30V), most equipment can be used, very convenient;
2. The interface is clear and simple, powerful, easy to understand, and almost meets all your needs;
3. There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn;
4. Sleep mode, after enabling, without any operation within 3 minutes, automatically turn off the display; any key to wake up;
5. Different OP, CL, LOP, CLL, CLH parameters can be set, these parameters are mutually. Independent and kept separately;
6. Added serial port communication function to facilitate reading and setting parameters.
7. All set parameters are automatically saved after power-off. Wide Voltage Compatibility Energy-Saving Sleep Mode Robust Performance & Durability Far memory
Special attention: The relay output is a passive contact, a non-charged output, which controls the on-off operation of a line with optocoupler isolation, enhanced anti-interference ability, industrial grade circuit board, set parameters forever after power failure
Electrical Parameter Working voltage: DC 5V-30V supports micro USB 5.0V power supply
Trigger signal source: High level trigger (DC 3.0V -24V), Switch trigger, Serial communication trigger
Output capability: can control equipment within DC 30V 5A or AC 220V 5A
Quiescent current: 20mA
Working current: 50mA
Service life: more than 100, 000 times
Working temperature: -40~85C
Size: 79*43*27mm Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 315 4.6 out of 5 stars 104 4.9 out of 5 stars 22 4.6 out of 5 stars 104 4.9 out of 5 stars 9 4.6 out of 5 stars 104 4.8 out of 5 stars 15 Model P/N B-30-1000 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 External Wire Diameter 0.56 mm 0.56 mm 0.5 mm 0.56 mm 0.8 mm 0.56 mm 0.3 mm Core Sectional Area 0.2 mm² 0.2 mm² none 0.2 mm² none 0.2 mm² none Material PVC PVC solder PVC solder PVC solder Wire Gauge 30AWG 30AWG none 30AWG none 30AWG none Temperature 105 113 183 107 183 112 183
