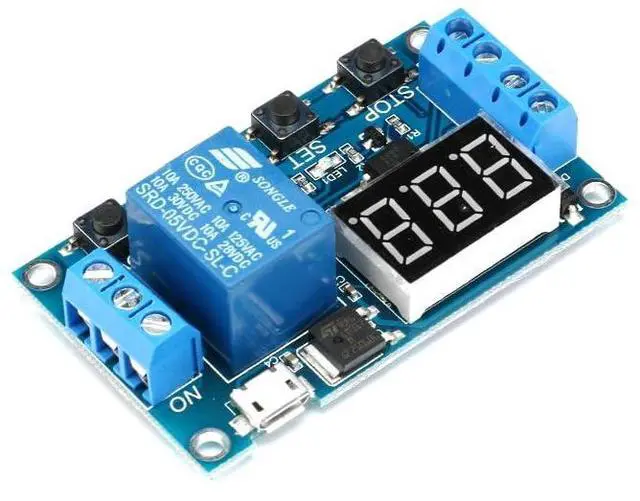

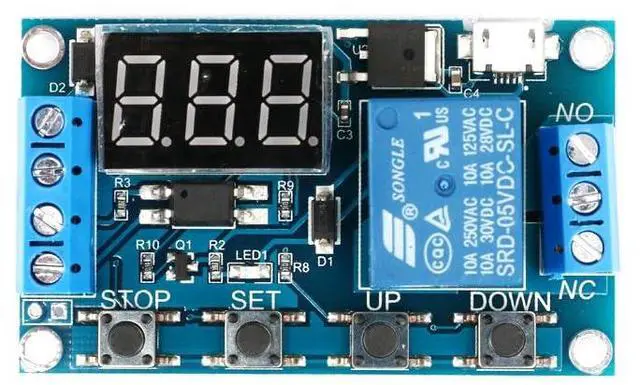

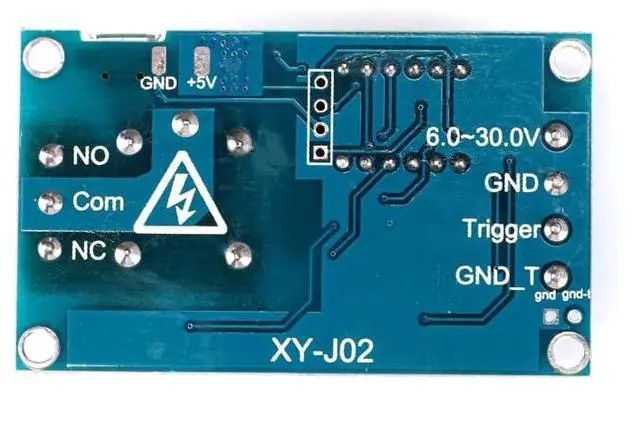

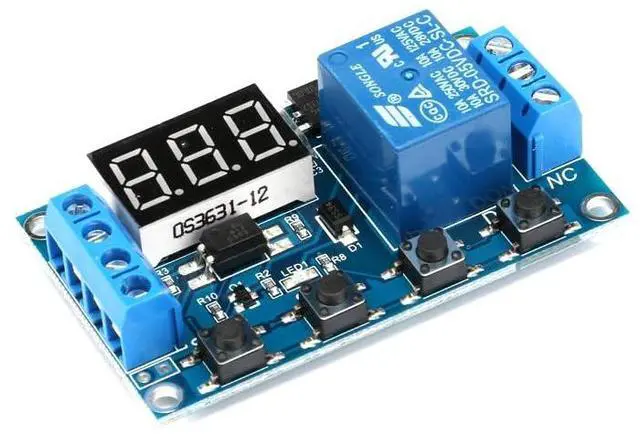

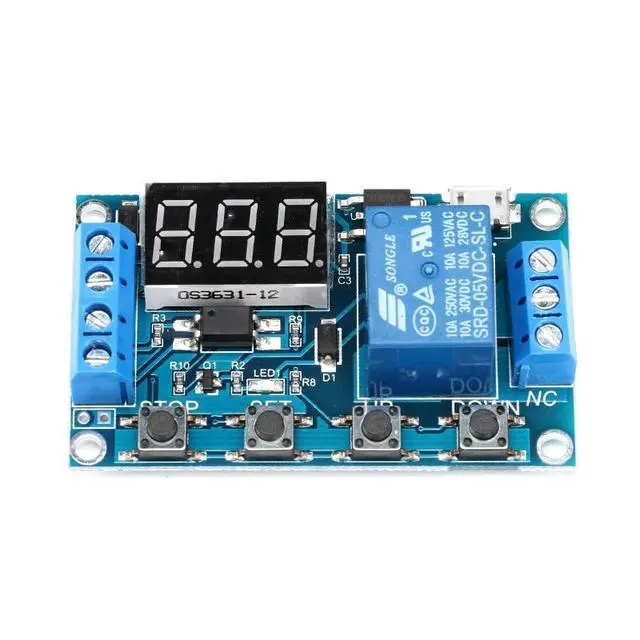

DC 6-30V Timer Delay Triggered Relay Module 1 Channel Way 5V Multifunction Switch Control Relay Cycle Timer Digit LED Display Micro USB
- Wide voltage power supply (6~30V) supports micro USB 5.0V power supply, which is very convenient to use; The interface is clear and simple, with powerful functions and easy to understand, almost meeting all your needs; It has a one key emergency stop function (STOP key) with reverse connection protection, and reverse connection does not burn; Added sleep mode, which automatically turns off the monitor after being enabled and there is no operation for 5 minutes; Wake up with any button; Different OP, CL, and LOP parameters can be set, which are independent of each other and saved separately; All setting parameters will be automatically saved after power failure
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product parameters 1: Working
voltage: 6-30V, supports micro
USB 5.0V power supply 2: Trigger
signal source: High level trigger ( 3.0V -24V). The signal ground is not connected to the system ground to improve the system's anti-interference ability (it can also be short circuited to a common ground) 3: Output
capability: can control devices up to 30V DC 5A or up to 220V
AC 5A 4: Static
current: 20mA
Working current: 50mA
5: Timing
range: 0.1 -999 minutes continuously adjustable; 6: Service
life: greater than 100000 times;
Working temperature: -40-85;
Size: 6.2 * 3.8 * 1.7 cm 7: Equipped with optocoupler isolation, enhancing anti-interference ability, industrial grade circuit board, set parameters for permanent memory after power failure.
Special attention: The relay output is a passive contact, not a live output, which controls the opening and closing of a circuit.
voltage: 6-30V, supports micro
USB 5.0V power supply 2: Trigger
signal source: High level trigger ( 3.0V -24V). The signal ground is not connected to the system ground to improve the system's anti-interference ability (it can also be short circuited to a common ground) 3: Output
capability: can control devices up to 30V DC 5A or up to 220V
AC 5A 4: Static
current: 20mA
Working current: 50mA
5: Timing
range: 0.1 -999 minutes continuously adjustable; 6: Service
life: greater than 100000 times;
Working temperature: -40-85;
Size: 6.2 * 3.8 * 1.7 cm 7: Equipped with optocoupler isolation, enhancing anti-interference ability, industrial grade circuit board, set parameters for permanent memory after power failure.
Special attention: The relay output is a passive contact, not a live output, which controls the opening and closing of a circuit.
