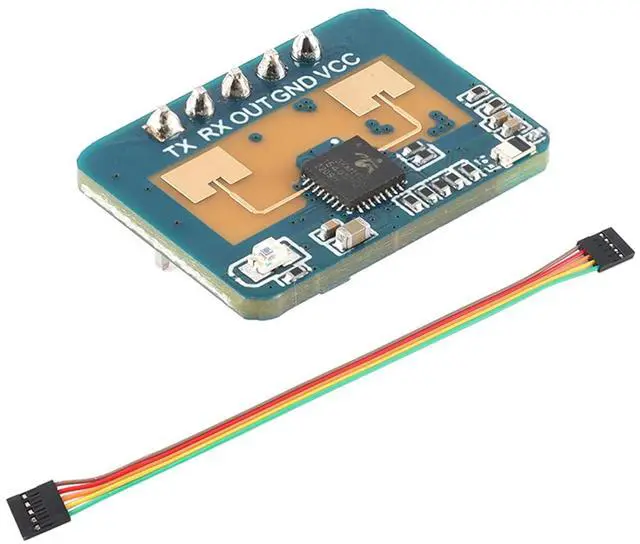

LD2410C Human Presence Sensor Millimeter Wave Radar Sensor HLK-LD2410C Bluetooth Radar Module with 5P Dupont Cable Female to Female Human Detection Non-Contact Module Board

Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.

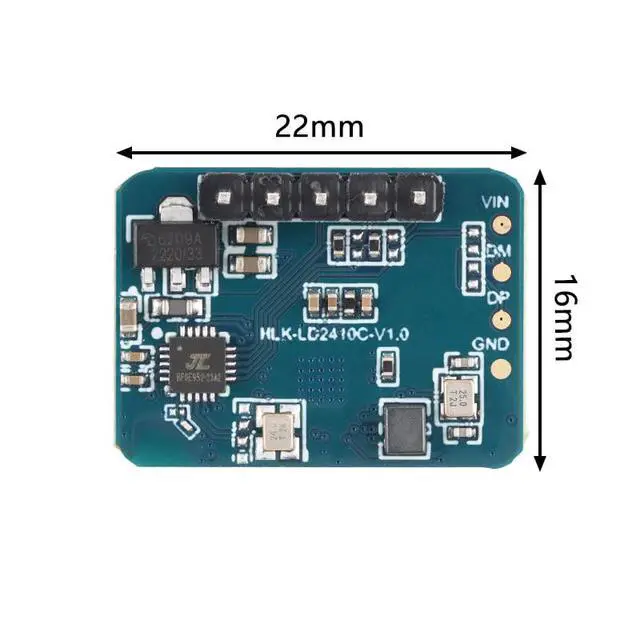

Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. Can identify the human body in motion and static state, and can calculate the distance of the target and other auxiliary information 24GHz ISM band, the farthest sensing distance is up to 5 meters, the detection angle is large, and the coverage range can reach ± 60 degrees Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes, visual debugging and configuration tools. Accurate identification within the interval, support sensing range division, shielding interference outside the interval Simple assembly method, support hanging top, hanging wall and other installation methods, compact and simplified, the minimum size is only 7mm x 35mm The LD2410B radar sensor technology, which has obvious advantages in human body sensing applications compared to other solutions:
1. In addition to being sensitive to the movement of the human body, it can also be sensitive to static, micro moving, and sitting and lying human bodies that cannot be recognized by traditional methods;
2. Has good environmental adaptability, and the sensing effect is not affected by the surrounding environment such as temperature, brightness, humidity, and light fluctuations;
3. It has good shell penetration and can be hidden inside the shell to work, without the need for holes on the surface of the product, improving the product's aesthetics;
4. Flexible configuration of the farthest sensing distance and sensitivity on each distance door, achieving flexible and refined personalized configuration;
5. Equipped with Bluetooth function, it can directly use the APP to debug radar parameters without connecting to a serial port

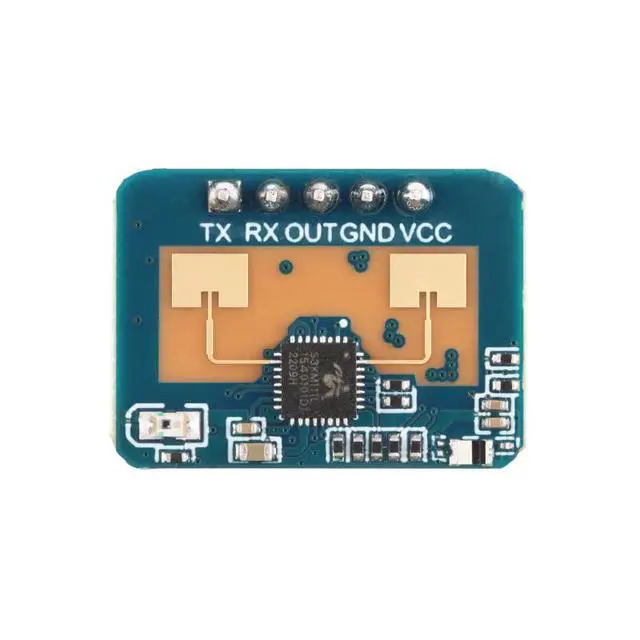

Pin Definition:
OUT: detection
of human presence: output high level;
No human presence: output low level 2
UART_ Tx: Serial port Tx pin 3
UART_ Rx: Serial port Rx pin 4
GND: power ground 5
VCC: Power supply input 5V~12VPin Definition HLK-LD2410 24g Smart Human Presence Sensor Radar Module HLK-LD2410B Human Presence Radar Module Sensor Board HLK-LD2410B 24GHz Human Presence Radar Module HLK-LD1125H-24G Human Presence Radar Module 8M LD1115H Human Presence Sensor HLK-LD1115H-24G Human Presence Radar Module 15M LD1115H Human Presence Sensor Add to Cart Buying Options Add to Cart Buying Options Add to Cart Price $ 9.95 $9. 95 no data $ 16.95 $16. 95 no data $ 14.95 $14. 95 price
