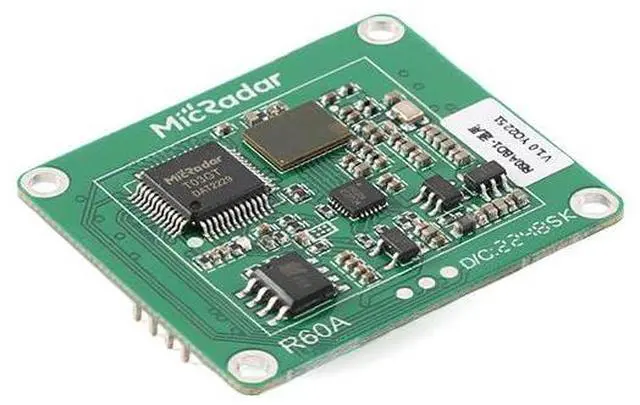

R60ABD1 60G Millimeter Wave Radar Breathing Sleep Monitoring Module Body Motion Detection Sensor Human Presence Detection Sensor Smart Home

Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.

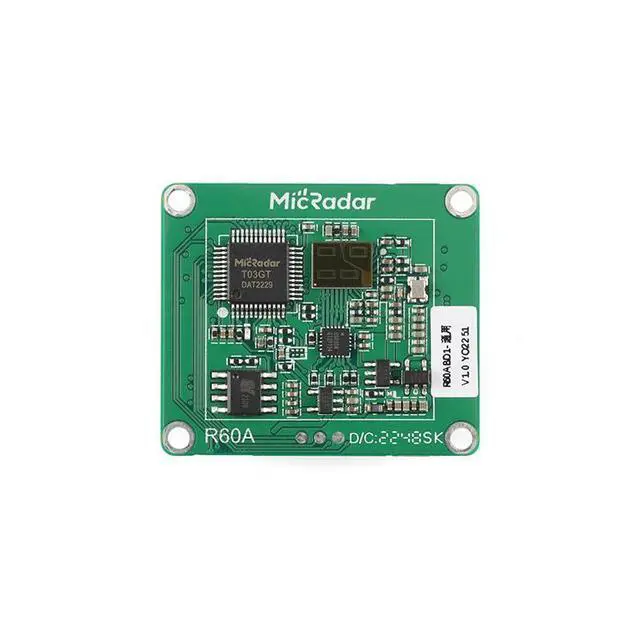

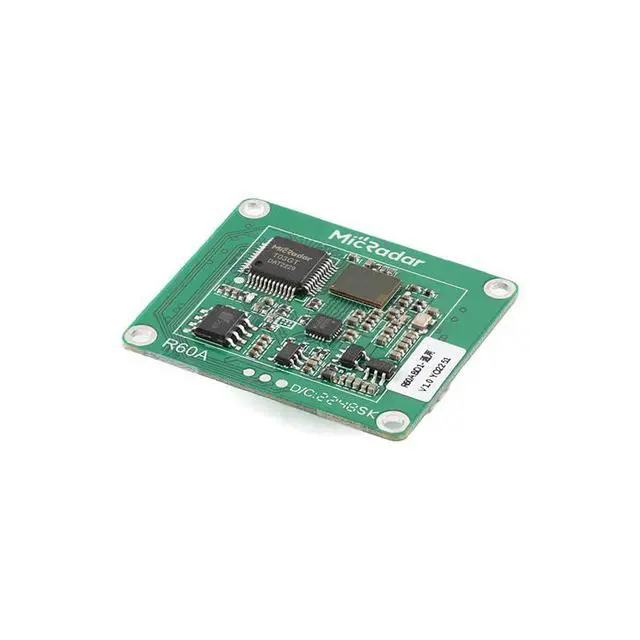

Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. The R60ABD1 radar module uses 60G millimeter wave radar technology to achieve human respiratory perception and sleep assessment functions The module is based on the FMCW radar system, which outputs the respiratory rate in specific situations. Combined with long-term sleep posture and body movement collection, it timely reports the sleep status and historical records Within the radar detection range, small amplitude motion information of the human body can be detected. When the person remains stationary, small movements such as chest undulation can also be detected by the radar

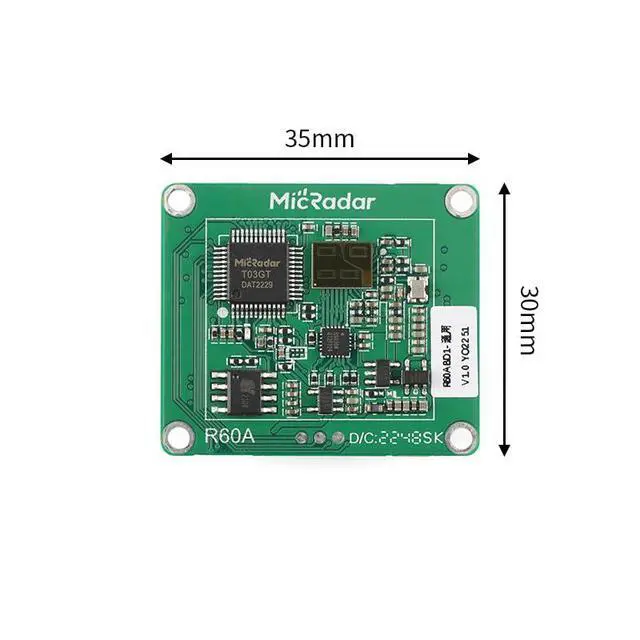

Volume: 35mm × 31mm × 7.5 mm;

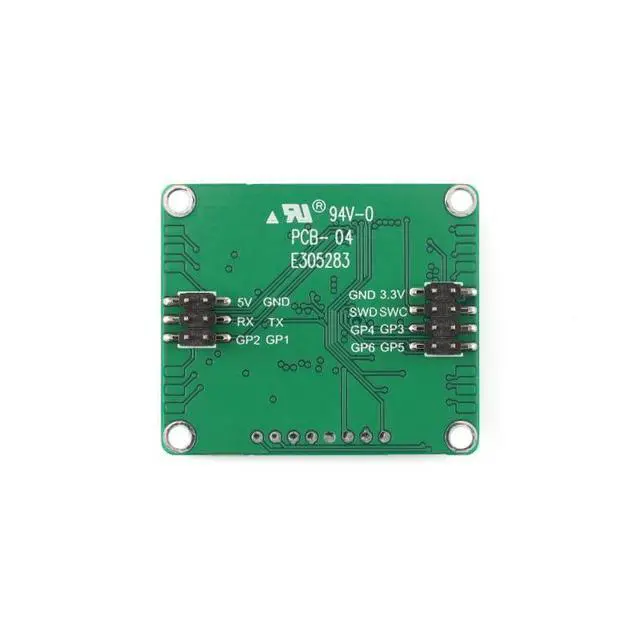

Interface: Pitch 2.0 mm double row pin interface, 2 * 3 and 2 * 4 sets of interfaces in total
Product application: Whole house intelligence, smart home appliances (TV, air conditioning, speakers, etc. ), area personnel detection, sleep care, etc Electrical characteristics
Working voltage (VCC): 4.6V ~6V (typical value 5V)
Working current (ICC): 90mA~100 mA (typical value 93mA)
Working temperature (TOP): -20 ~+60
Storage temperature (TST): -40 ~+105
Features: Radar detection based on FMCW frequency modulated continuous wave signal; Synchronous perception of human respiration; Record of sleep quality; Maximum detection distance for human sleep quality monitoring: 1.5 meters; Maximum distance for human respiratory detection: 1.5 meters; The output power of the radar module is within 0.5 watts and requires long-term power supply operation; Not affected by temperature, humidity, noise, airflow, dust, light, and other environmental factors; The product supports secondary development and adapts to various scenarios and applications; Universal UART communication interface, providing universal protocols;
Time for unmanned detection (reporting): automatically detected according to the algorithm, with a typical value of 30 seconds; Reserve 4 sets of I/O, which can be input and output according to user definitions, or perform simple interface simulations. LD2410C Human Presence Sensor Millimeter Wave Radar Sensor HLK-LD2410B Human Presence Radar Module Sensor Board HLK-LD2410 24g Smart Human Presence Sensor Radar Module HLK-LD2410B 24GHz Human Presence Radar Module HLK-LD1115H-24G Human Presence Radar Module 15M LD1115H Human Presence Sensor Add to Cart Buying Options Add to Cart Add to Cart Add to Cart Price $ 12.95 $12. 95 no data $ 9.95 $9. 95 $ 16.95 $16. 95 $ 14.95 $14. 95 price
