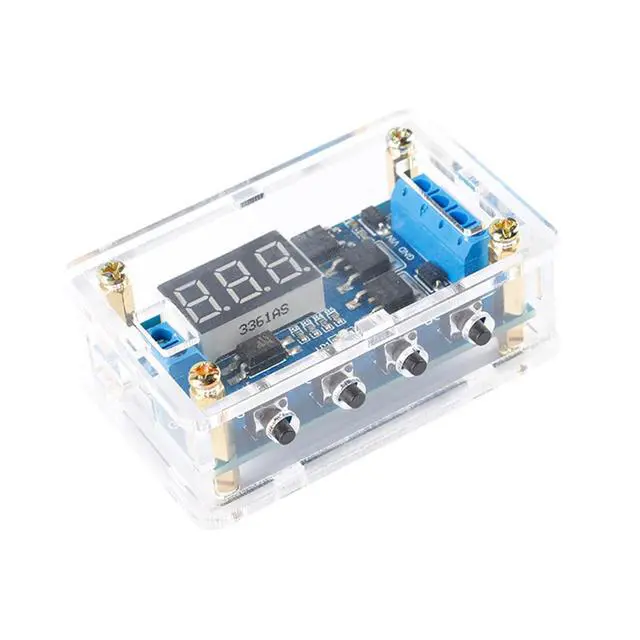

ZK-J04 Dual MOS Tube Timing Delay Switch Circuit 12V/24V for Automation Control, Replaces Relay Modules

Product description Module introduction 1. Wide voltage operation (5~36V), most equipment can be used, very convenient; 2. The interface is clear and simple, powerful, easy to understand, and almost meets all your needs; 3. There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn; 4. Added sleep mode, after enabling it, without any operation within 5 minutes, the display will be automatically turned off; any keystroke will wake up; 5. Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately; 6.

All setting parameters are automatically saved after power-off. With optocoupler isolation, enhanced anti-interference ability, industrial-grade circuit board, set parameters are always remembered after power failure.
Note: The module is an active live output, and the voltage at the output end (load end) is equal to the input end voltage (DC 5V--36V). The poles of'DC+' and load'+' are internally short-circuited, but the poles of'DC-' and load'-' cannot be short-circuited during use, otherwise the load will not be controlled to turn on and off, which is equivalent to the load being. It's always energized. Quiescent current of 15mA Working temperature range -4085 Optocoupler isolation for enhanced anti-interference Clear and simple interface Wide voltage operation (5~36V) for versatile equipment compatibility Independent OP, CL, LOP Emergency stop function with reverse connection protection DC+ and load+ internally short-circuited, preventing misuse Quiescent current of 15mA Sleep mode with automatic display turn-off Output capacity up to 30A with auxiliary heat dissipation Trigger (DC 3.0V -24V) Unlimited switch service life Industrial-grade circuit board Active live output with equal input and output voltage Product parameters Working voltage DC 5V--36V Trigger signal source high-level trigger (DC 3.0V -24V) The signal ground and the system ground are not in the same ground to improve the anti-interference ability of the system (also can be short-circuited to the common ground) Output capacity DC 5V--36V, continuous current 15A at room temperature, power 400W! Under auxiliary heat dissipation conditions, the maximum current can reach 30A.

Quiescent current 15mA Service life unlimited switch Working temperature -4085 Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 315 4.6 out of 5 stars 104 4.9 out of 5 stars 22 4.6 out of 5 stars 104 4.9 out of 5 stars 9 4.6 out of 5 stars 104 4.8 out of 5 stars 15 Model P/N B-30-1000 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 External Wire Diameter 0.56 mm 0.56 mm 0.5 mm 0.56 mm 0.8 mm 0.56 mm 0.3 mm Core Sectional Area 0.2 mm² 0.2 mm² none 0.2 mm² none 0.2 mm² none Material PVC PVC solder PVC solder PVC solder Wire Gauge 30AWG 30AWG none 30AWG none 30AWG none Temperature 105 113 183 107 183 112 183
