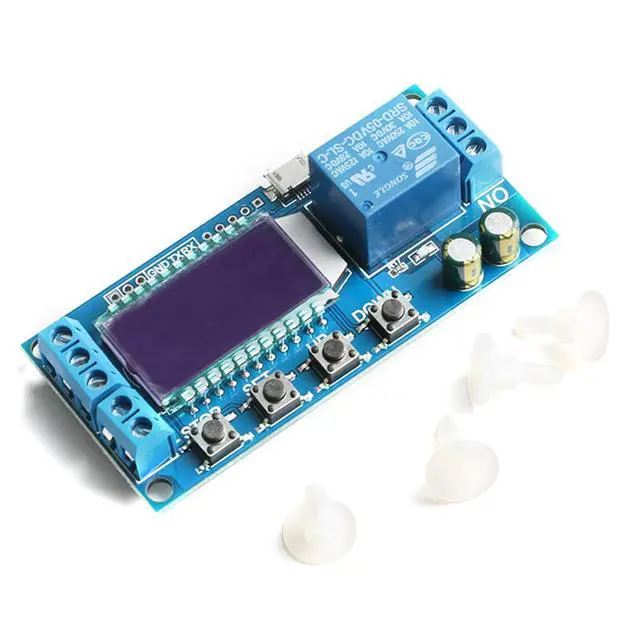

1-Channel Timer Delay Relay XY-LJ02 Cycle Trigger Delay Timer Switch Circuit Electronic Relay Module with LCD Display, 12V Timer Relay Delay Controller Module Support Micro USB 5V Input
- Versatile Triggering Options Easily control your devices with versatile triggering modes including high-level (3.0V-24V), low-level (0.0V-0.2V) triggers, and passive switch control. Perfect for both DIY enthusiasts and professional setups.; Robust Output and Durability Manage a wide range of devices with an output capability of up to 30V 5A DC or 220V 5A AC. Built to last with a service life of over 100,000 operations, ensuring reliability and long-term performance in various temperatures from -40 to 85°C.; Adjustable Timing for Precision Control Tailor operation times from 0.01 seconds to 9999 minutes with easy adjustments to meet the demands of your project. Includes four decimal point settings for precise time management, helping you optimize control and efficiency.; Intuitive User Interface and Setup Configure your settings easily with a clear LCD display and simple button operations for setting modes and parameters. Save your settings quickly with a long press of the SET button, making it user-friendly even for beginners.; Smart Features for Enhanced Usability Features automatic sleep function to save energy and extend device life, relay function selection for customized operation, and the ability to view current settings without affecting operation. Ideal for continuous or cyclical operations with options to monitor runtime or cycle times.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features Trigger Signal Source: High level trigger ( 3.0V -24V), low level trigger ( 0.0V - 0.2V ), switch control (passive switch)
Output Capability: Control devices within 30V 5A DC or within 220V 5A
AC Quiescent Current: 15mA
Working Current: 50mA
Service Life: More than 100, 000 times
Working Temperature: -40-85
Timing Range: 0.01 seconds (minimum) - 9999 minutes (maximum) continuously adjustable How to Choose the
Timing Range: In the OP/CL parameter modification interface, short press the STOP button to select the timing range; XXXX has no decimal point, and the timing range is 1s - 9999s XXX. X Decimal point in the tenth place, timing range 0.1 s - 999.9 s XX. XX Decimal point is in the hundredth place, timing range 0.01 s - 99.99 s X. X. X. X full decimal point, timing range 1min - 9999min For example, if you want to set the OP to 3.2 seconds, then move the decimal point to the ten, the LCD display 003.2
Parameter Description: OP on time, CL off time, LOP cycle times (1-9999 times, "----" represents infinite cycles)
Operating Mode:
P1: After the signal is triggered, the relay is turned on for the OP time and then turned off; within the OP time, the signal is triggered again invalid
P2: After the signal is triggered, the relay turns on the OP time and then turns off; within the OP time, the signal is triggered again to retime
P3: After the signal is triggered, the relay is turned on for OP time and then disconnected; within OP time, the signal is triggered again to reset, the relay is turned off, and the timing is stopped
P4: Give the trigger signal, after the relay is turned off CL time, the relay is turned on OP time, after the timing is completed, the relay is turned off;
Output Capability: Control devices within 30V 5A DC or within 220V 5A
AC Quiescent Current: 15mA
Working Current: 50mA
Service Life: More than 100, 000 times
Working Temperature: -40-85
Timing Range: 0.01 seconds (minimum) - 9999 minutes (maximum) continuously adjustable How to Choose the
Timing Range: In the OP/CL parameter modification interface, short press the STOP button to select the timing range; XXXX has no decimal point, and the timing range is 1s - 9999s XXX. X Decimal point in the tenth place, timing range 0.1 s - 999.9 s XX. XX Decimal point is in the hundredth place, timing range 0.01 s - 99.99 s X. X. X. X full decimal point, timing range 1min - 9999min For example, if you want to set the OP to 3.2 seconds, then move the decimal point to the ten, the LCD display 003.2
Parameter Description: OP on time, CL off time, LOP cycle times (1-9999 times, "----" represents infinite cycles)
Operating Mode:
P1: After the signal is triggered, the relay is turned on for the OP time and then turned off; within the OP time, the signal is triggered again invalid
P2: After the signal is triggered, the relay turns on the OP time and then turns off; within the OP time, the signal is triggered again to retime
P3: After the signal is triggered, the relay is turned on for OP time and then disconnected; within OP time, the signal is triggered again to reset, the relay is turned off, and the timing is stopped
P4: Give the trigger signal, after the relay is turned off CL time, the relay is turned on OP time, after the timing is completed, the relay is turned off;
