TMC2209 Stepper Motor Driver Module, 4.7528 V, 2.0 A Continuous, 1/256 Microstepping, with Heatsink
- SC2 Silent Motion Technology TMC2209 stepper motor driver with SC2 silent technology; advanced chopping algorithm minimizes vibration and audible noise; delivers smoother motor operation during printing; improves surface finish and user comfort in desktop and home 3D printing environments; HighResolution Microstepping Control Supports MicroPlyer interpolation up to 1/256 microsteps; generates nearsinusoidal current even with limited STEP pulse frequency; enhances motion precision and layer consistency; suitable for detailed printing tasks and fine positioning requirements; Wide Voltage And High Current Capability Motor supply voltage from 4.75 V to 28 V; continuous phase current up to 2.0 A with peak current up to 2.8 A; low RDS on output stage improves efficiency; supports a wide range of twophase bipolar stepper motors; SpreadCycle Dynamic Current Regulation SpreadCycle cyclebycycle current control optimizes torque across speed ranges; improves acceleration response and reduces missed steps; maintains stable motor behavior during rapid movement and direction changes in printer motion systems; Flexible Configuration And Cooling Design Supports UART or CFG pin configuration for easy setup; logic voltage compatible with 3 V to 5 V controllers; includes heatsink and yellow pin headers; compatible with for Arduinobased printer controllers, active airflow recommended for high load use
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

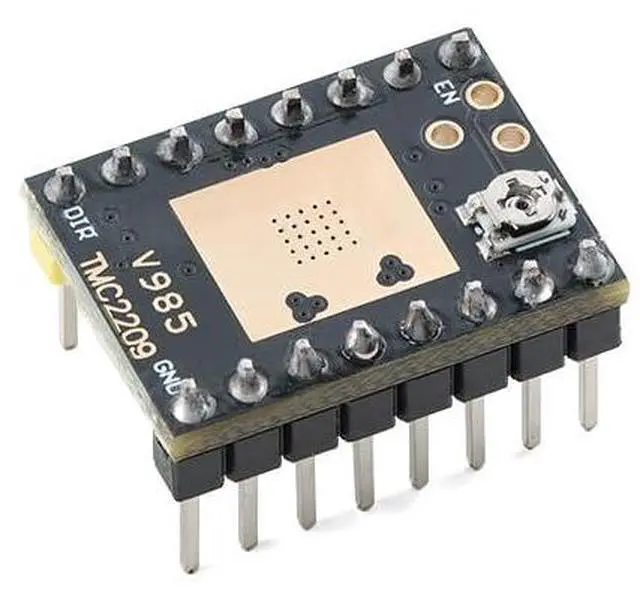

Product Overview TMC2209 UltraQuiet Stepper Motor Driver Module with heatsink and yellow pin headers. Features SC2 Silent Technology, SpreadCycle current control, and MicroPlyer interpolation for smooth, precise, and lownoise motion. Ideal upgrade for modern 3D printers.
1.
Product Parameters Driver IC: TMC2209
Motor Type: Twophase bipolar stepper motor
Control Interface: STEP /
DIR Configuration: UART or CFG pins
Motor Supply Voltage (VM): 4.7528 V DC Logic
Voltage (VIO): 35 V Continuous
Phase Current: Up to 2.0
A Peak Current: Up to 2.8
A Microstepping: Up to 1/256 (MicroPlyer)
Current Control: SpreadCycle, cyclebycycle
Technology: SC2 Silent
Technology OnResistance: Low RDS (on) design
Cooling: Heatsink included, active cooling recommended
2.
Pin Function Description VM: Motor power input positive
GND: Power ground
VIO: Logic power input
STEP: Step pulse input
DIR: Direction control input
EN: Enable input, active low
UART: Serial configuration interface CFG1 /
CFG2: Mode configuration pins A1 /
A2: Motor phase A outputs B1 /
B2: Motor phase B outputs
3. Common Questions & Answers (FAQ)
Q1: Is the TMC2209 quieter than TMC2208 or A4988?
A1: Yes, SC2 technology provides extremely low motor noise.
Q2: What microstepping resolution is supported?
A2: Up to 1/256 microsteps using MicroPlyer interpolation.
Q3: Can it replace A4988 or DRV8825 directly?
A3: Yes, it is a pincompatible upgrade for most 3D printers.
Q4: Does it require additional cooling?
A4: A heatsink is included; a cooling fan is recommended for high current.
Q5: Is UART configuration mandatory?
A5: No, it can work in standalone mode or via UART configuration.
1.
Product Parameters Driver IC: TMC2209
Motor Type: Twophase bipolar stepper motor
Control Interface: STEP /
DIR Configuration: UART or CFG pins
Motor Supply Voltage (VM): 4.7528 V DC Logic
Voltage (VIO): 35 V Continuous
Phase Current: Up to 2.0
A Peak Current: Up to 2.8
A Microstepping: Up to 1/256 (MicroPlyer)
Current Control: SpreadCycle, cyclebycycle
Technology: SC2 Silent
Technology OnResistance: Low RDS (on) design
Cooling: Heatsink included, active cooling recommended
2.
Pin Function Description VM: Motor power input positive
GND: Power ground
VIO: Logic power input
STEP: Step pulse input
DIR: Direction control input
EN: Enable input, active low
UART: Serial configuration interface CFG1 /
CFG2: Mode configuration pins A1 /
A2: Motor phase A outputs B1 /
B2: Motor phase B outputs
3. Common Questions & Answers (FAQ)
Q1: Is the TMC2209 quieter than TMC2208 or A4988?
A1: Yes, SC2 technology provides extremely low motor noise.
Q2: What microstepping resolution is supported?
A2: Up to 1/256 microsteps using MicroPlyer interpolation.
Q3: Can it replace A4988 or DRV8825 directly?
A3: Yes, it is a pincompatible upgrade for most 3D printers.
Q4: Does it require additional cooling?
A4: A heatsink is included; a cooling fan is recommended for high current.
Q5: Is UART configuration mandatory?
A5: No, it can work in standalone mode or via UART configuration.
