2pcs ATD5833 Stepper Motor Driver Module, 536 V, 2.0 A Rated, 1/256 Microstepping, with Heatsink
- UltraQuiet Stepper Drive Architecture ATD5833 stepper motor driver module; ultraquiet drive technology reduces vibration and audible noise; optimized current control improves motion smoothness; suitable for desktop 3D printers and precision motion projects used in home and workshop environments; HighResolution 256 Microstep Control Supports up to 1/256 microstepping subdivision; delivers smoother current waveforms and finer position resolution; helps improve surface finish and motion accuracy; effective even in systems with limited STEP pulse frequency; Wide Voltage And Current Capability Motor supply voltage range from 5 V to 36 V; maximum output current up to 2.5 A with recommended continuous operation at 2.0 A or less; supports common twophase bipolar stepper motors across multiple printer designs; Flexible STEP DIR And UART Configuration Supports both STEP DIR pulse control and UART serial configuration; allows simple standalone use or advanced parameter tuning; logic voltage compatible with 3.3 V and 5 V controllers; adapts to different control board requirements; Thermal Design And System Compatibility Includes heatsink to improve heat dissipation during extended operation; helps maintain stable performance under higher load; yellow pin headers simplify installation; compatible with for Arduinobased printer controllers, active airflow recommended at high current levels
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

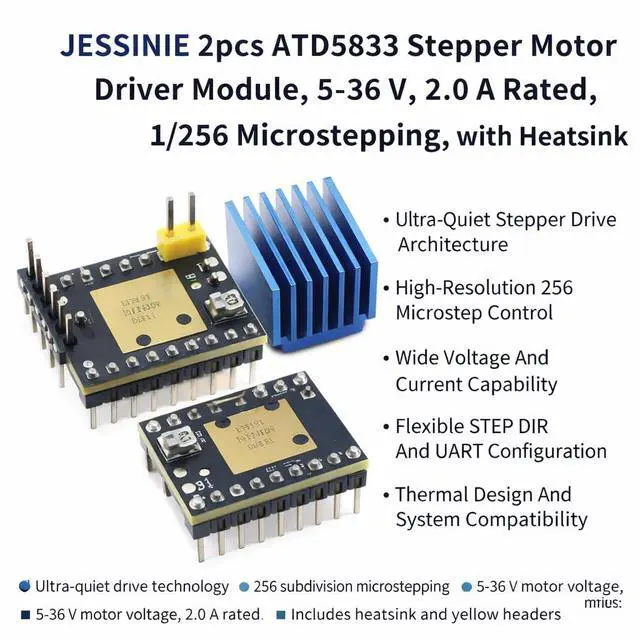

Product Overview ATD5833 UltraQuiet Stepper Motor Driver Module with heatsink and yellow pin headers. Designed for smooth and precise motion control in 3D printers and automation systems. Supports high microstepping resolution and flexible control via STEP/DIR or UART.
1.
Product Parameters Driver IC: ATD5833
Motor Type: Twophase bipolar stepper motor
Control Interface: STEP / DIR or UART
Motor Supply Voltage (VM): 536 V DC Logic
Voltage (VIO): 3.3 V / 5 V Max
Output Current: 2.5
A Recommended Operating Current: 2.0
A Microstepping Resolution: Up to 1/256
Operating Feature: Ultraquiet drive technology
Cooling: Heatsink included, active cooling recommended
2.
Pin Function Description VM: Motor power input positive
GND: Power ground
VIO: Logic power input
STEP: Step pulse input
DIR: Direction control input
EN: Enable control input
UART: Serial configuration pin
CFG: Mode configuration pin A1 /
A2: Motor phase A outputs B1 /
B2: Motor phase B outputs
3. Common Questions & Answers (FAQ)
Q1: What motors are supported by ATD5833?
A1: It supports twophase bipolar stepper motors used in 3D printers.
Q2: What is the recommended working current?
A2: For stable operation, it is recommended to use 2A.
Q3: Does it support 256 microsteps?
A3: Yes, it supports up to 1/256 microstepping.
Q4: Can it work with 3.3V controllers?
A4: Yes, logic voltage supports both 3.3V and 5V systems.
Q5: Is a cooling fan required?
A5: A heatsink is included; a fan is recommended at high current.
