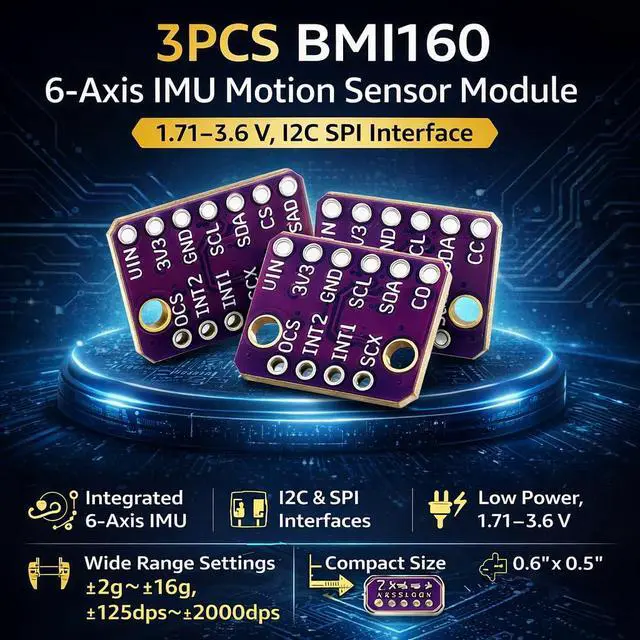

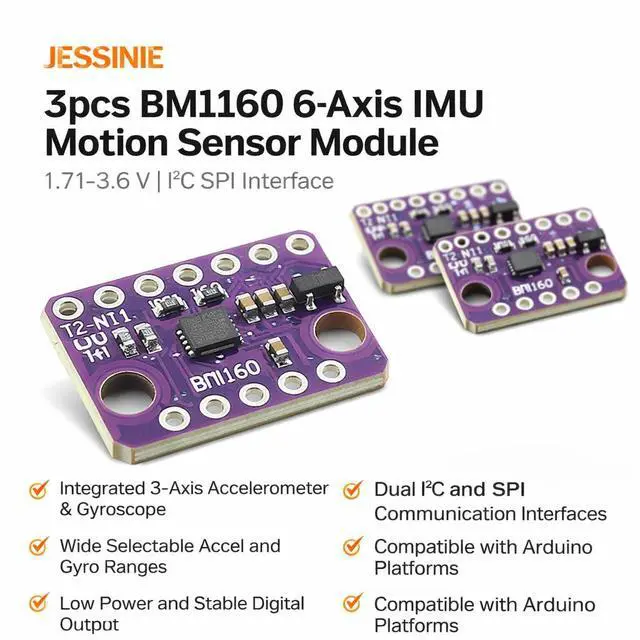

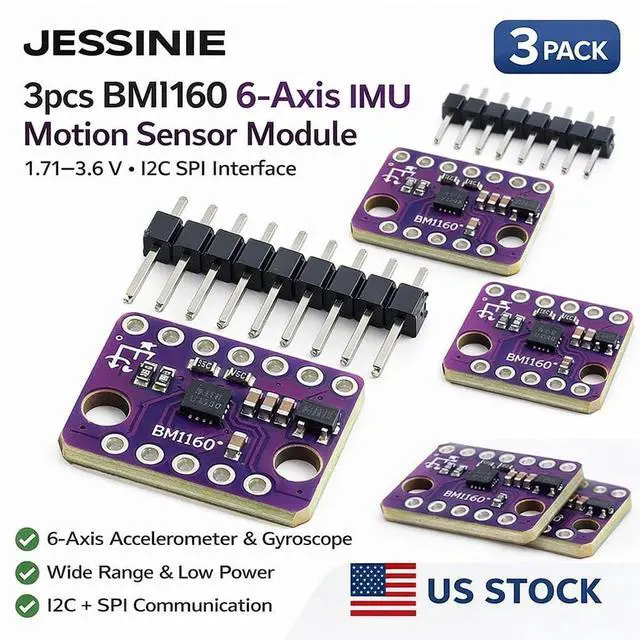

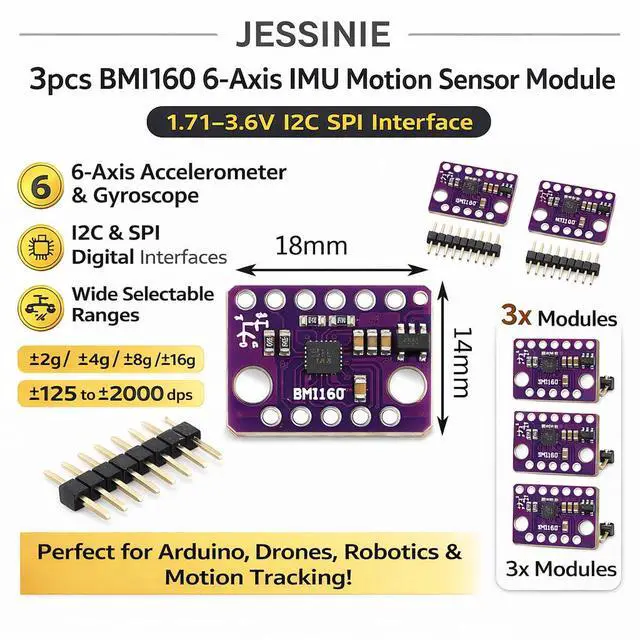

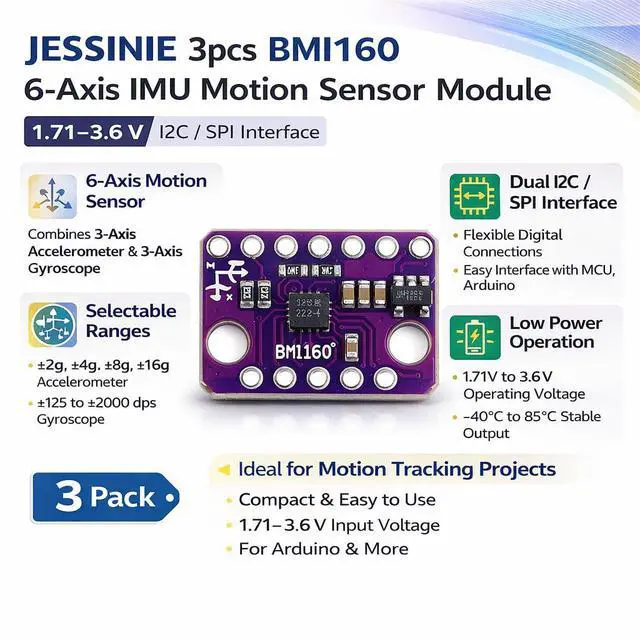

3pcs BMI160 6Axis IMU Motion Sensor Module, 1.713.6 V, I2C SPI Interface
- Integrated 6Axis Motion And Angular Rate Sensing BMI160 module combines a 3axis accelerometer and 3axis gyroscope; synchronized 6DOF data improves motion correlation; digital output supports accurate movement and rotation tracking; simplifies sensor fusion for compact embedded control designs; Wide Selectable Acceleration And Gyro Ranges Accelerometer supports ±2 g, ±4 g, ±8 g, and ±16 g ranges; gyroscope supports ±125 to ±2000 dps options; flexible sensitivity tuning adapts to slow orientation changes or fast rotational motion in dynamic systems; Low Power Operation With Stable Output Designed for low power consumption across active and standby modes; operates from 1.71 V to 3.6 V DC; maintains consistent digital data over 40 °C to 85 °C; supports longterm motion sensing in energyconstrained designs; Dual I2C And SPI Communication Interfaces Supports both I2C and SPI digital interfaces; flexible connection options reduce design constraints; digital signaling improves noise immunity; enables reliable realtime motion data transfer for microcontrollerbased applications; Interrupt Support And Compact Module Layout INT1 and INT2 pins enable eventdriven motion detection; reduces constant polling load on the controller; compact PCB fits spacelimited layouts; compatible with for Arduino and similar platforms using proper voltage level matching
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

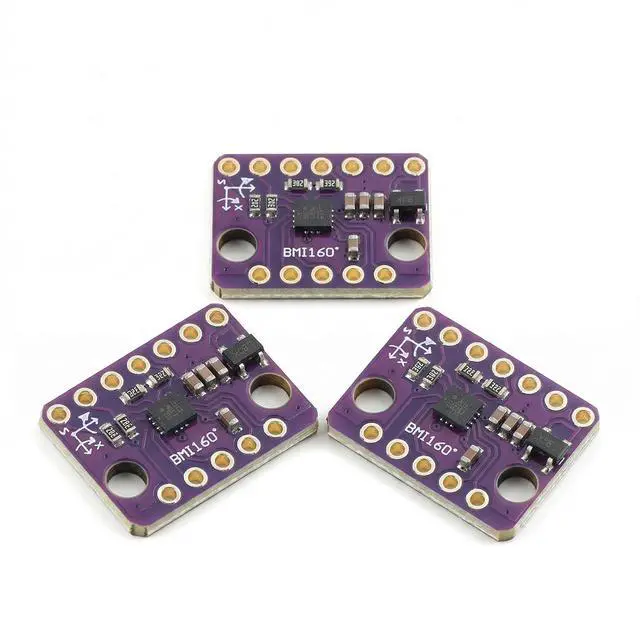

Product Overview BMI160 6Axis Motion Sensor Module integrating a 3axis accelerometer and 3axis gyroscope. Compact 6DOF IMU designed for accurate motion and angular rate sensing. Built with original BMI160 chip, offering low power consumption and stable digital output for embedded systems.
1.
Product Parameters Sensor IC: BMI160
Sensor Type: 6axis IMU (Accelerometer + Gyroscope)
Supply Voltage (VCC): 1.713. 6 V DC
Acceleration Range: ±2 g / ±4 g / ±8 g / ±16 g
Gyroscope Range: ±125 / ±250 / ±500 / ±1000 / ±2000 dps
Output Type: Digital motion data
Communication Interface: I2C / SPI
Power Consumption: Low power design
Operating Temperature: 40 °C to +85 °C
2. Pin Function
Description VCC (IN+): DC power input positive
GND: Power ground SCL /
SCK: I2C clock or SPI clock SDA /
SDI: I2C data or SPI data input
SDO: SPI data output / I2C address select
CS: SPI chip select, active low INT1 /
INT2: Interrupt outputs
3. Common Questions & Answers (FAQ)
Q1: What sensors are included in this module?
A1: It includes a 3axis accelerometer and 3axis gyroscope.
Q2: What voltage is required to power the module?
A2: It operates from 1.71V to 3.6V DC.
Q3: Which communication interfaces are supported?
A3: Both I2C and SPI interfaces are supported.
Q4: Is it suitable for drones or flight controllers?
A4: Yes, it is commonly used in UAV and flight control systems.
Q5: Does it require calibration before use?
A5: Yes, basic calibration is recommended for best accuracy.
1.
Product Parameters Sensor IC: BMI160
Sensor Type: 6axis IMU (Accelerometer + Gyroscope)
Supply Voltage (VCC): 1.713. 6 V DC
Acceleration Range: ±2 g / ±4 g / ±8 g / ±16 g
Gyroscope Range: ±125 / ±250 / ±500 / ±1000 / ±2000 dps
Output Type: Digital motion data
Communication Interface: I2C / SPI
Power Consumption: Low power design
Operating Temperature: 40 °C to +85 °C
2. Pin Function
Description VCC (IN+): DC power input positive
GND: Power ground SCL /
SCK: I2C clock or SPI clock SDA /
SDI: I2C data or SPI data input
SDO: SPI data output / I2C address select
CS: SPI chip select, active low INT1 /
INT2: Interrupt outputs
3. Common Questions & Answers (FAQ)
Q1: What sensors are included in this module?
A1: It includes a 3axis accelerometer and 3axis gyroscope.
Q2: What voltage is required to power the module?
A2: It operates from 1.71V to 3.6V DC.
Q3: Which communication interfaces are supported?
A3: Both I2C and SPI interfaces are supported.
Q4: Is it suitable for drones or flight controllers?
A4: Yes, it is commonly used in UAV and flight control systems.
Q5: Does it require calibration before use?
A5: Yes, basic calibration is recommended for best accuracy.
