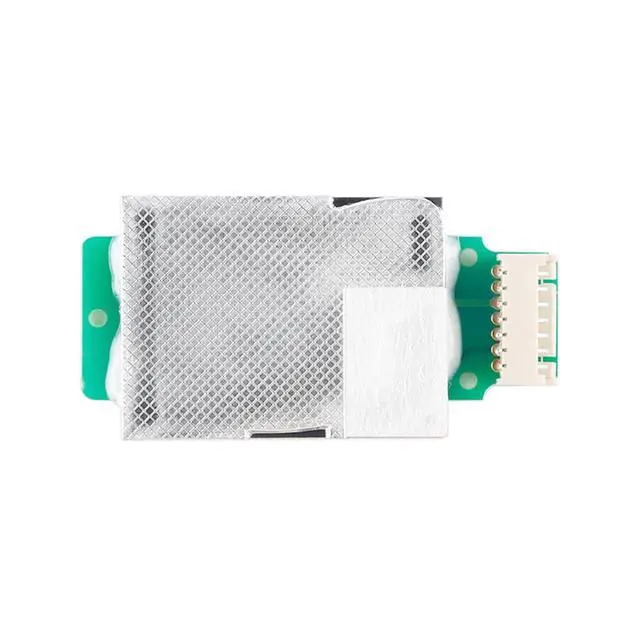

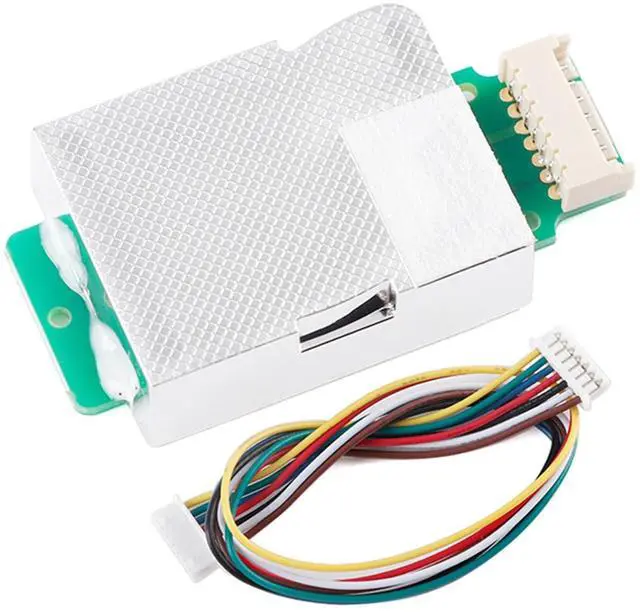

MH-Z19E Infrared Carbon Dioxide Sensor Air Quality Monitoring CO2 Concentration Detection Sensor Module 4.55.0VDC 400-10000ppm CO2 Gas Sensor with Terminals Cable Pin Type
- Enhanced Air Quality Monitoring Experience precise and reliable real-time monitoring of CO2 levels in your environment with the MH-Z19E sensor. Ideal for homes, schools, and offices to ensure healthy indoor air quality.; Advanced NDIR TechnologyUtilize the Non-Dispersive Infrared technology for accurate and selective CO2 detection. Our sensor does not depend on oxygen levels and remains unaffected by other gases, ensuring accurate readings.; Easy Integration and UseComes with both pin and terminal versions and supports multiple outputs including serial and PWM for hassle-free integration into existing air quality systems or smart home setups.; Robust and ReliableBuilt to last with a service life of over 10 years and equipped with temperature compensation to perform in environments ranging from -10 to 50. Our sensors guarantee long-term stability and minimal maintenance.; Energy-Efficient DesignWith an average current draw of less than 40mA, our CO2 sensor is designed for energy efficiency. Enjoy continuous monitoring without significant power consumption, making it ideal for battery-operated systems.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE.
Product Model: MH-Z19E Detecting gasCarbon dioxide Supply VoltageDC( 5.0 ± 0.1 )V
Average current: <40mA(@5V) Peak current: 125 mA (@5V supply) Interface level: 3.3V (5V compatible) Measurement range: 400~10000ppm range selectable Output Signal: Serial (UARD (TTL level 3.3V, PWM)) Warm-up time: 1min Response time: T90<120s Operating temperature: -10-50 Operating humidity: 0~95%RH (no condensation) Storage Temperature: -20 -60 Service life: > 10 years

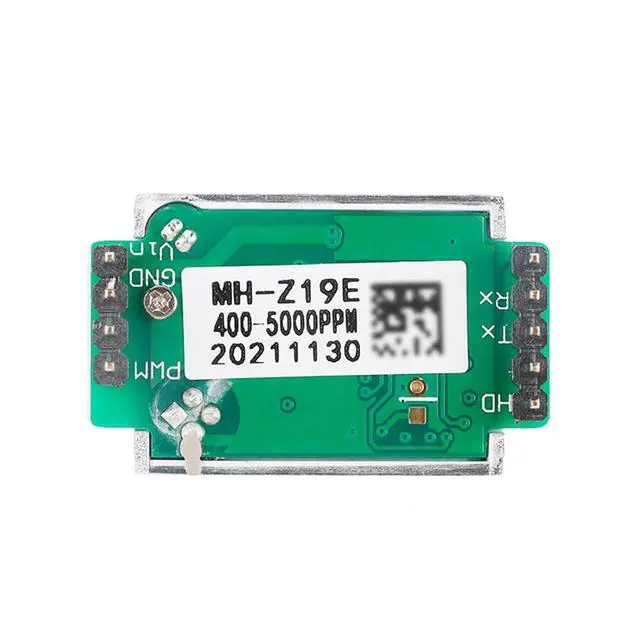

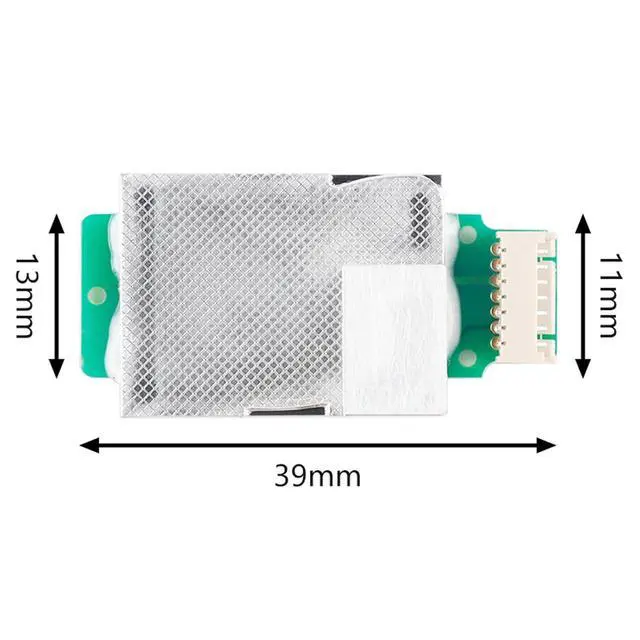

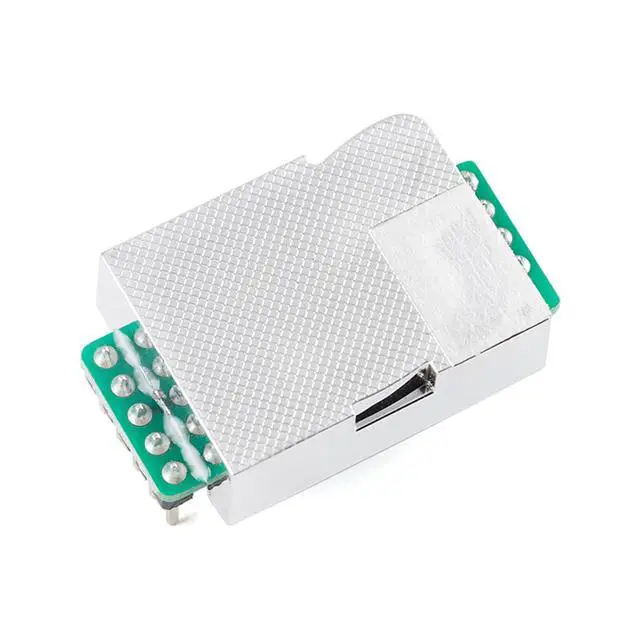

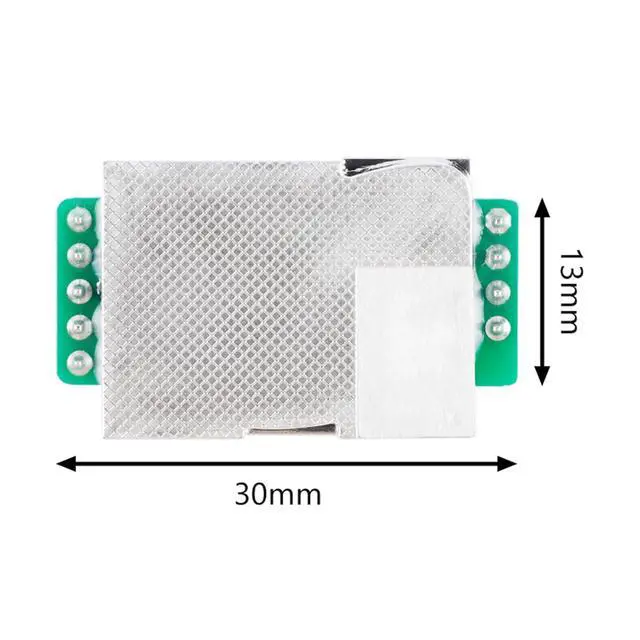

Product introduction: The MH-Z19E Carbon Dioxide Gas Sensor (hereinafter referred to as the sensor) is a general-purpose intelligent compact sensor. It is available in both pin and terminal versions and uses the Non-Dispersive Infrared (NDIR) principle to detect C02 in the air. It is characterised by good selectivity, no oxygen dependence and long life.
Built-in temperature compensation: at the same time with serial output, PWM output, easy to use. The sensor is the mature infrared absorption gas detection technology and precision optical circuit design. The sensor is a high-performance sensor made by closely combining the mature infrared absorption gas detection technology with precise optical circuit design and excellent circuit design.
Sensor characteristics: High sensitivity, low power consumption Excellent stability temperature compensation, excellent linear output Provide serial port (UARD, PWM waveform and other output methods Long service life Resistant to water vapour interference, non-poisoning
Main Applications: Air quality monitoring equipment HVACR equipment air purification equipment Intelligent home Fresh air system Schools
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE.
Product Model: MH-Z19E Detecting gasCarbon dioxide Supply VoltageDC( 5.0 ± 0.1 )V
Average current: <40mA(@5V) Peak current: 125 mA (@5V supply) Interface level: 3.3V (5V compatible) Measurement range: 400~10000ppm range selectable Output Signal: Serial (UARD (TTL level 3.3V, PWM)) Warm-up time: 1min Response time: T90<120s Operating temperature: -10-50 Operating humidity: 0~95%RH (no condensation) Storage Temperature: -20 -60 Service life: > 10 years
Product introduction: The MH-Z19E Carbon Dioxide Gas Sensor (hereinafter referred to as the sensor) is a general-purpose intelligent compact sensor. It is available in both pin and terminal versions and uses the Non-Dispersive Infrared (NDIR) principle to detect C02 in the air. It is characterised by good selectivity, no oxygen dependence and long life.
Built-in temperature compensation: at the same time with serial output, PWM output, easy to use. The sensor is the mature infrared absorption gas detection technology and precision optical circuit design. The sensor is a high-performance sensor made by closely combining the mature infrared absorption gas detection technology with precise optical circuit design and excellent circuit design.
Sensor characteristics: High sensitivity, low power consumption Excellent stability temperature compensation, excellent linear output Provide serial port (UARD, PWM waveform and other output methods Long service life Resistant to water vapour interference, non-poisoning
Main Applications: Air quality monitoring equipment HVACR equipment air purification equipment Intelligent home Fresh air system Schools
