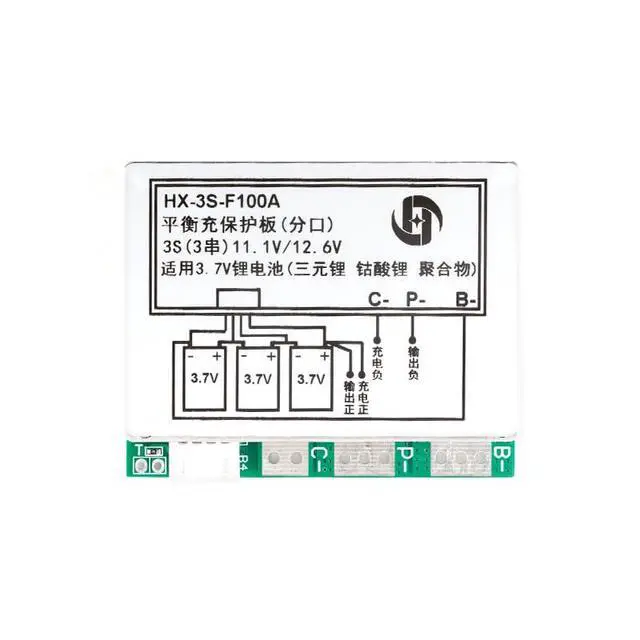

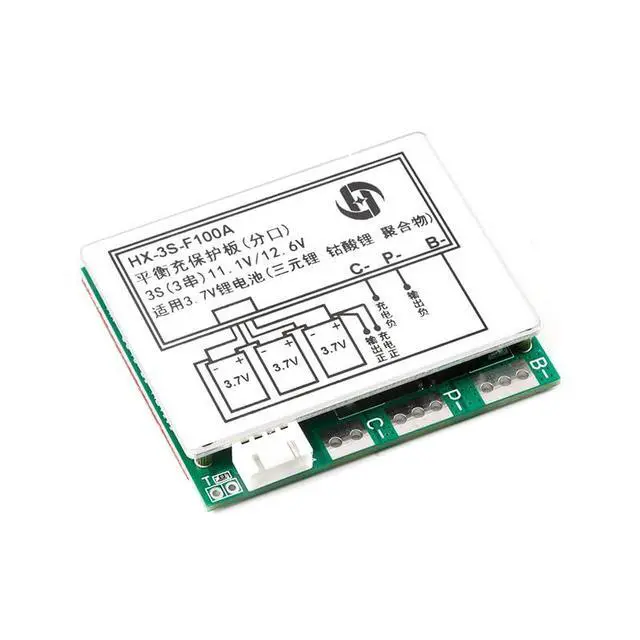

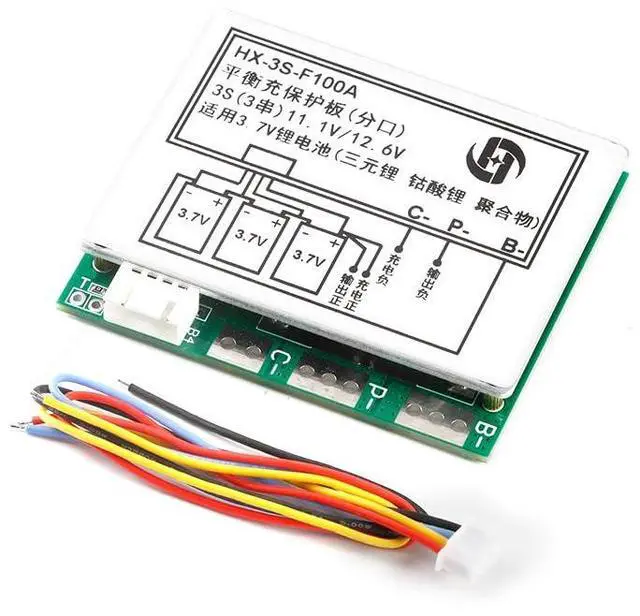

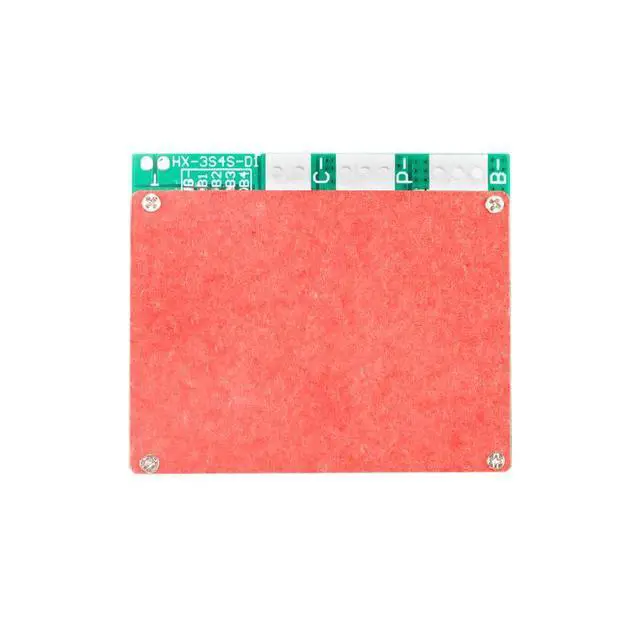

3S 12.6V 100A Li ion Lithium Battery PCB Protection Board 3 Cells 11.1V Polymer Balance Function Charge Module BMS Circuit Protection PCB Board
- The lithium battery protection board is used for charging and discharging protection of series lithium battery packs; When fully charged, it can ensure that the voltage difference between individual batteries is less than the set value (usually ± 20mV), achieving equal charging of each individual battery in the battery pack, effectively improving the charging effect under series charging mode; Simultaneously detecting the overvoltage, undervoltage, overcurrent, short circuit, and over temperature status of each individual battery in the battery pack to protect and extend the battery's service life; Undervoltage protection prevents damage to each single battery due to over discharge during use.; Quiescent current: less than 30uA, Effective life: more than 30,000 hours
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The lithium battery protection board properties:
Model: HX-3S-F100A
Overcharge voltage range: 4.28 v ± 0.05 v

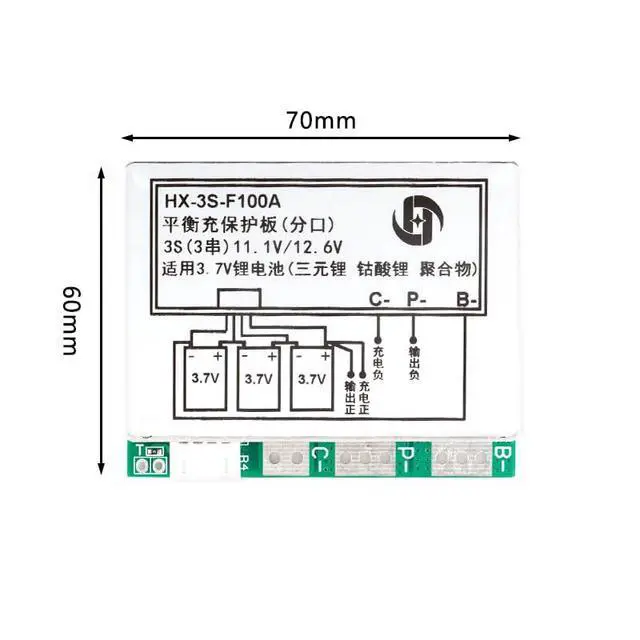

Size: 70 * 60 * 8.5 mm
Over discharge voltage range: 2.5 ± 0.05 v
Upper working current: 100A (pay attention to heat)
Operating temperature: -40 --- +50 °
Upper limit instantaneous current: 100-120A
Storage conditions: -40-- +80 °
Quiescent current: less than 30uA
Effective life: more than 30, 000 hours
Internal resistance: less than 300m
Short circuit protection: protection, delay self-recovery.
Equalizing current: 65 mA
Charging voltage: 12.6V -13V
Charging current upper limit: 10A T point
Description: plus a normally closed temperature sensor switch can expand the role of temperature protection, the solder joint should be removed next to the 0R resistance.
Note: 3A current discharge products above, the battery discharge rate to 3C or more.
Magnification calculation formula: 1C magnification of the battery, 2000 capacity is equal to 2AH * 1 = 2A operating current. 3C magnification battery, 2000 capacity equal to 2AH * 3 = 6A operating current.
Model: HX-3S-F100A
Overcharge voltage range: 4.28 v ± 0.05 v
Size: 70 * 60 * 8.5 mm
Over discharge voltage range: 2.5 ± 0.05 v
Upper working current: 100A (pay attention to heat)
Operating temperature: -40 --- +50 °
Upper limit instantaneous current: 100-120A
Storage conditions: -40-- +80 °
Quiescent current: less than 30uA
Effective life: more than 30, 000 hours
Internal resistance: less than 300m
Short circuit protection: protection, delay self-recovery.
Equalizing current: 65 mA
Charging voltage: 12.6V -13V
Charging current upper limit: 10A T point
Description: plus a normally closed temperature sensor switch can expand the role of temperature protection, the solder joint should be removed next to the 0R resistance.
Note: 3A current discharge products above, the battery discharge rate to 3C or more.
Magnification calculation formula: 1C magnification of the battery, 2000 capacity is equal to 2AH * 1 = 2A operating current. 3C magnification battery, 2000 capacity equal to 2AH * 3 = 6A operating current.
