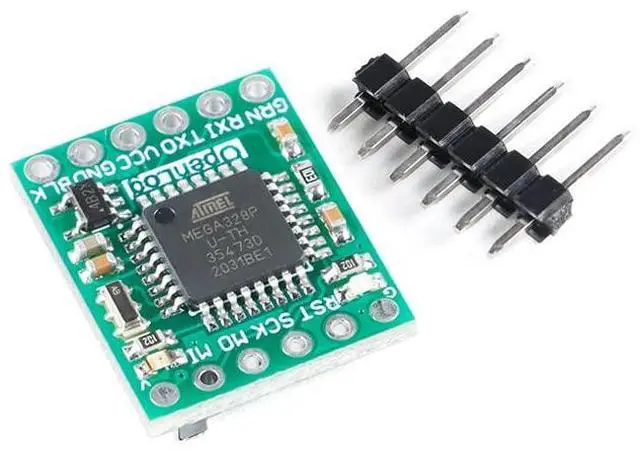

Main image of Openlog Serial Data Logger Open Source Data Recorder Flight Control Board Support Micro SD Module ATmega328 Serial Port Data Storage

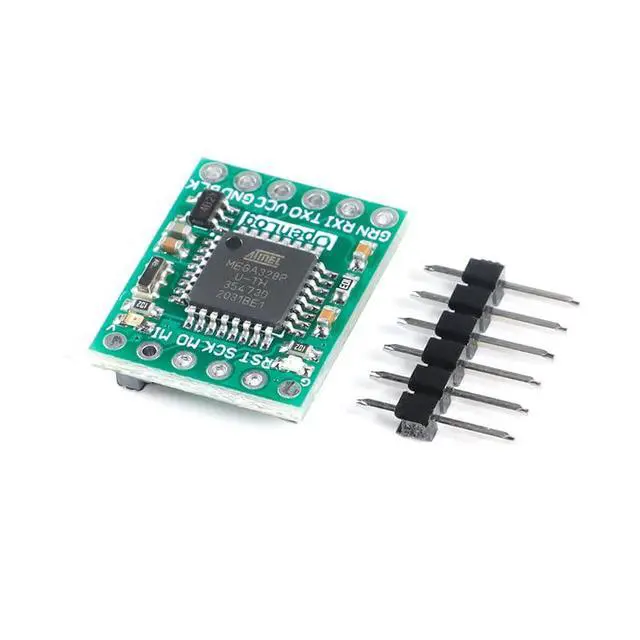

Alt view image 2 of 4 - Openlog Serial Data Logger Open Source Data Recorder Flight Control Board Support Micro SD Module ATmega328 Serial Port Data Storage

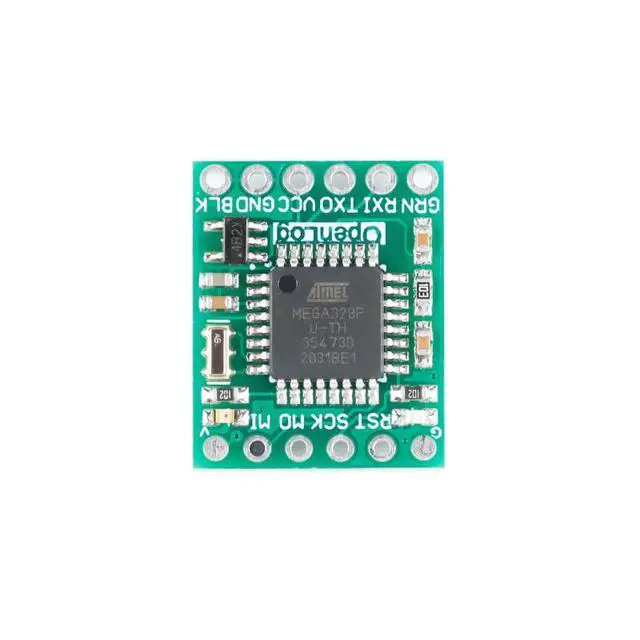

Alt view image 3 of 4 - Openlog Serial Data Logger Open Source Data Recorder Flight Control Board Support Micro SD Module ATmega328 Serial Port Data Storage

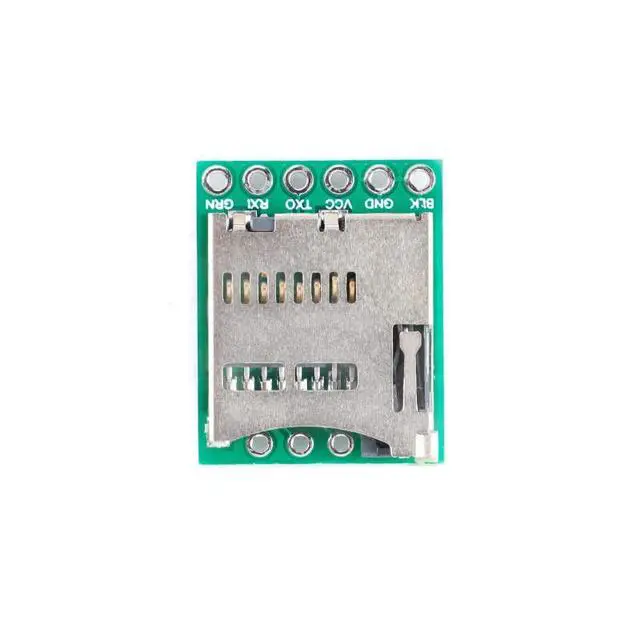

Alt view image 4 of 4 - Openlog Serial Data Logger Open Source Data Recorder Flight Control Board Support Micro SD Module ATmega328 Serial Port Data Storage

Shop All ZephyrPC Products | Visit SlotNeat Store

Openlog Serial Data Logger Open Source Data Recorder Flight Control Board Support Micro SD Module ATmega328 Serial Port Data Storage

Be the first to review this product...

Baud rate support 2400, 4800, 9600, 19200, 38400, 57600, and 115200; Supports storage in fat16/fat32 format tf cards with a storage capacity of 64G; The input voltage is 3.3V to 12V, preferably 3.3 to 5V, Idle current 2ma, maximum recording rate 6ma; Simple command line interface, 3 modes: new, add, command; The minimum connections to ensure operation are vcc,gnd,rx; With two led lights indicate operating status

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

This product is a data logger, which can record data on the memory card through uart universal serial port. This function is similar to a black box, which records the data sent by the main device to the serial port and saves the data in text form on the memory card. This product can be used for flight control board with cleanflight firmware, connected to the corresponding serial port, and can record the important operation data of unmanned aerial vehicle on the memory card through the setting of the host computer software cleanflight configurator.

The flight record is played back and analyzed by Blackbox flight data recorder software.
Input voltage: 3.3V ~ 12V (recommended 3.3V ~ 5V) The memory format is FAT32 and supports up to 64GB of memory. UART serial interface Baud rate 2400, 4800, 9600, 19200, 38400, 57600, and 115200 adjustable The default bootloader is pro mini atmega328P 5V 16mhz
