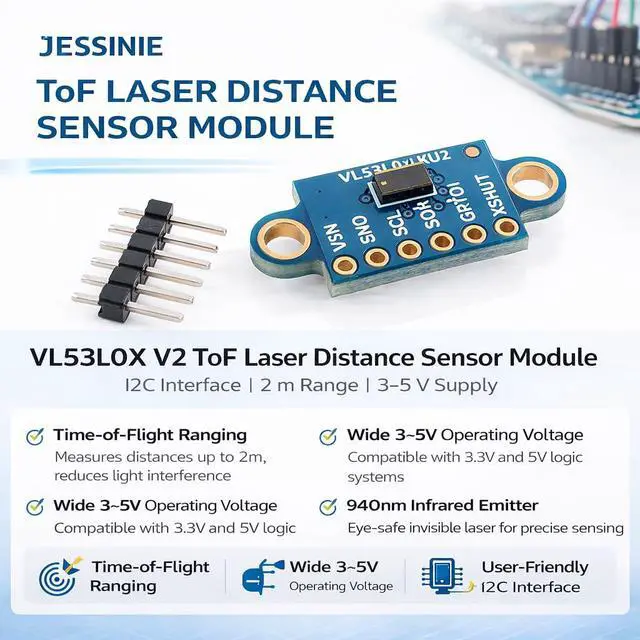

VL53L0X V2 ToF Laser Distance Sensor Module, I2C Interface, 2 m Range, 35 V Supply
- TimeofFlight Laser Distance Sensing VL53L0XV2 TOF laser ranging sensor module; uses pulse timeofflight measurement instead of phase comparison; measures absolute distance up to 2.0 m; reduces ambient light interference; suitable for precise proximity and distance detection in compact electronic designs; Wide Voltage And I2C Interface Supports wide operating voltage from 2.6 V to 5.5 V; onboard LDO and level shifting enable direct use with 3.3 V or 5 V logic systems; standard I2C communication up to 400 kHz simplifies integration with common microcontrollers; EyeSafe 940 nm Infrared Emitter Builtin 940 nm invisible infrared laser transmitter; nonred flicker light source designed for eye safety; avoids visible distraction while providing stable ranging performance; suitable for humaninterface sensing and closerange detection applications; Multiple Measurement And Precision Modes Provides 3 selectable working modes and 4 precision measurement modes; allows tradeoff between speed, accuracy, and power use; 25 degree field of view supports controlled sensing area; typical effective working diameter up to 90 cm; UserFriendly Module Layout Dualrow 2.54 mm goldplated pinholes and stamp holes; supports soldering, breadboard use, or direct PCB mounting; includes I2C pullup resistors and control pins XSHUT and GPIO; compatible with for Arduino and similar controllers
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Overview VL53L0XV2 TimeofFlight Laser Distance Sensor Module with onboard LDO, level shifting, and I²C pullups. Uses invisible 940 nm eyesafe laser and TOF technology for fast, accurate ranging. Dualrow 2.54 mm goldplated pins and stamp holes enable easy soldering or direct integration.
1.
Product Parameters Sensor IC: VL53L0X (TOF laser ranging)
Operating Voltage: DC 2.65. 5 V (typ.
35 V) Communication Interface: I²C, up to 400 kHz
Measuring Range: Up to 2.0 m
Effective FOV: 25° Effective
Working Distance: 90 cm (typical target)
Light Source: 940 nm IR laser, eyesafe
Ranging Method: TimeofFlight pulse ranging
Measurement Modes: 3 working modes, 4 precision modes
PCB Pitch: 2.54 mm
Board Features: Onboard LDO, level conversion, I²C pullups
2.

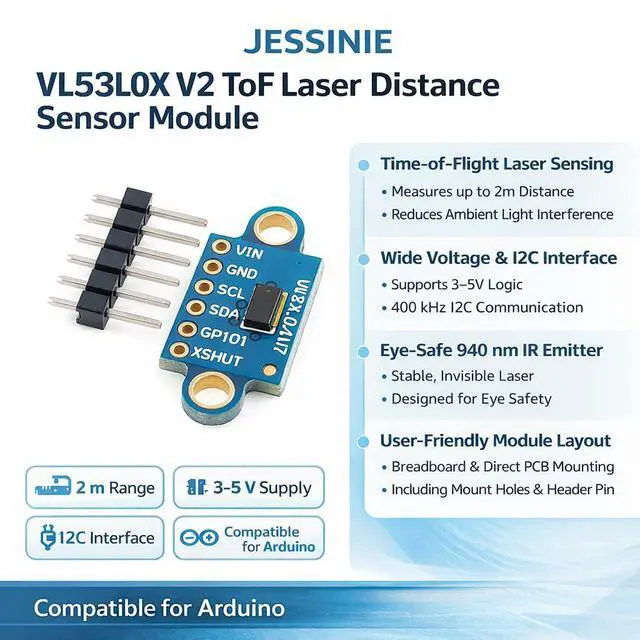

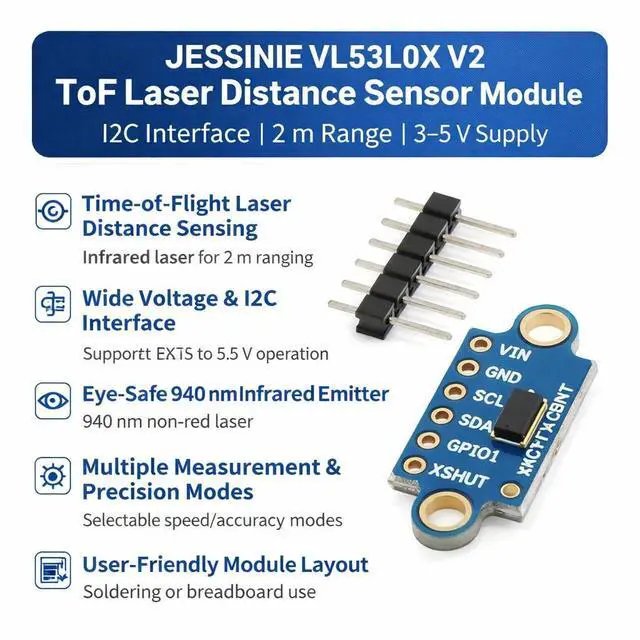

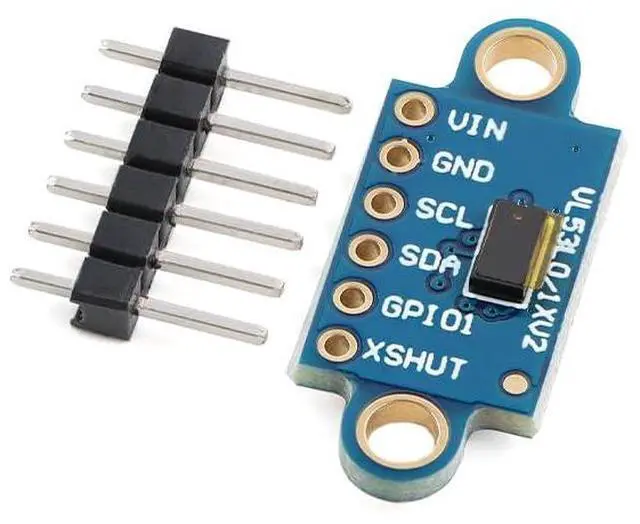

Pin Function Description VIN: DC power input positive
GND: Power ground
SDA: I²C data line
SCL: I²C clock line
XSHUT: Hardware shutdown / reset input
GPIO: Interrupt output
3. Common Questions & Answers (FAQ)
Q1: Is the laser safe for human eyes?
A1: Yes, it uses a 940 nm invisible, eyesafe laser.
Q2: What is the maximum distance it can measure?
A2: Up to 2 meters under suitable conditions.
Q3: Does it work with 3.3 V and 5 V systems?
A3: Yes, it supports a wide 2.65. 5 V supply range.
Q4: What interface does it use?
A4: Standard I²C communication up to 400 kHz.
Q5: What is the GPIO pin used for?
A5: It can output an interrupt for measurement events.
1.
Product Parameters Sensor IC: VL53L0X (TOF laser ranging)
Operating Voltage: DC 2.65. 5 V (typ.
35 V) Communication Interface: I²C, up to 400 kHz
Measuring Range: Up to 2.0 m
Effective FOV: 25° Effective
Working Distance: 90 cm (typical target)
Light Source: 940 nm IR laser, eyesafe
Ranging Method: TimeofFlight pulse ranging
Measurement Modes: 3 working modes, 4 precision modes
PCB Pitch: 2.54 mm
Board Features: Onboard LDO, level conversion, I²C pullups
2.
Pin Function Description VIN: DC power input positive
GND: Power ground
SDA: I²C data line
SCL: I²C clock line
XSHUT: Hardware shutdown / reset input
GPIO: Interrupt output
3. Common Questions & Answers (FAQ)
Q1: Is the laser safe for human eyes?
A1: Yes, it uses a 940 nm invisible, eyesafe laser.
Q2: What is the maximum distance it can measure?
A2: Up to 2 meters under suitable conditions.
Q3: Does it work with 3.3 V and 5 V systems?
A3: Yes, it supports a wide 2.65. 5 V supply range.
Q4: What interface does it use?
A4: Standard I²C communication up to 400 kHz.
Q5: What is the GPIO pin used for?
A5: It can output an interrupt for measurement events.
