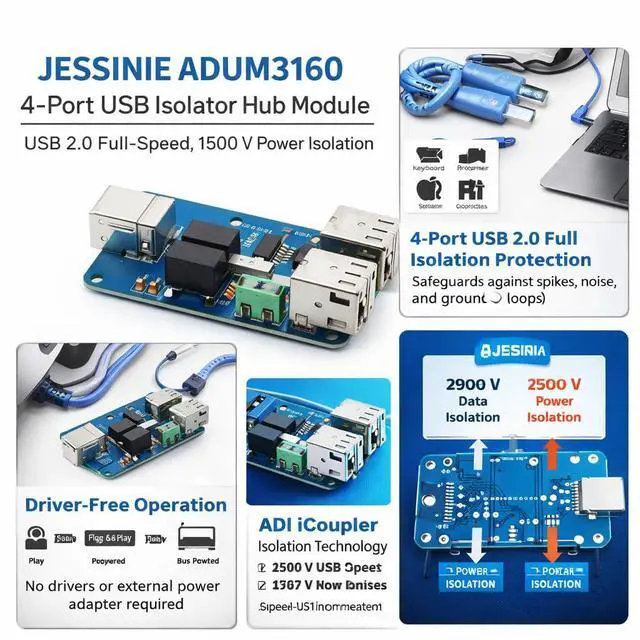

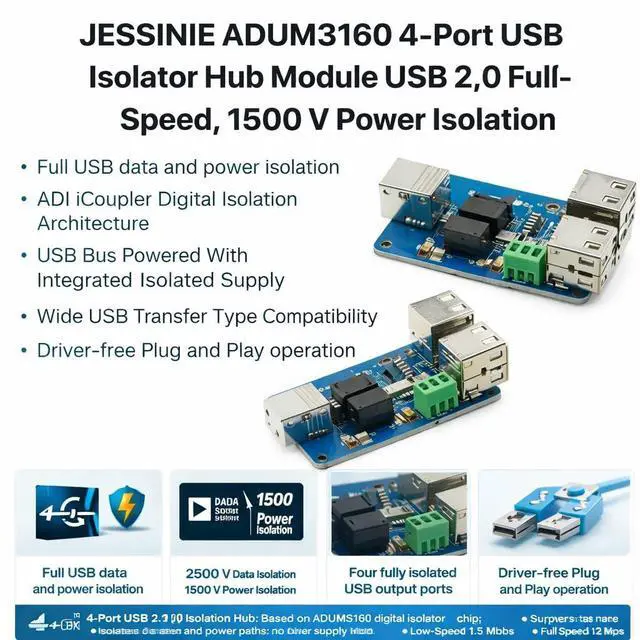

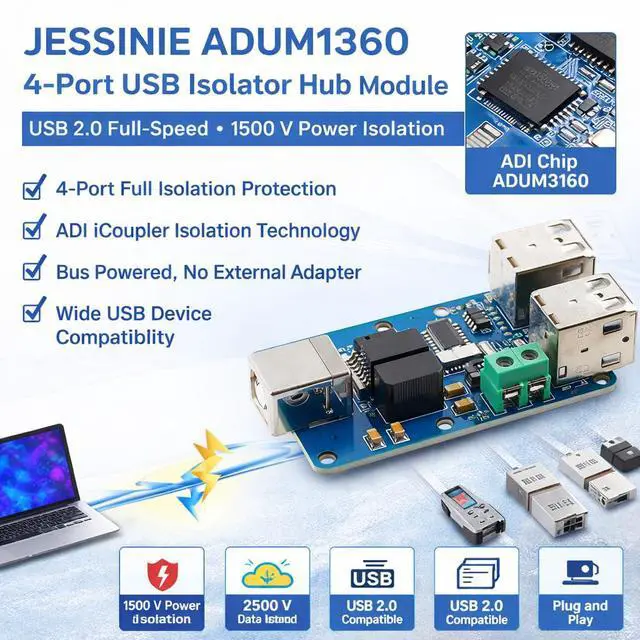

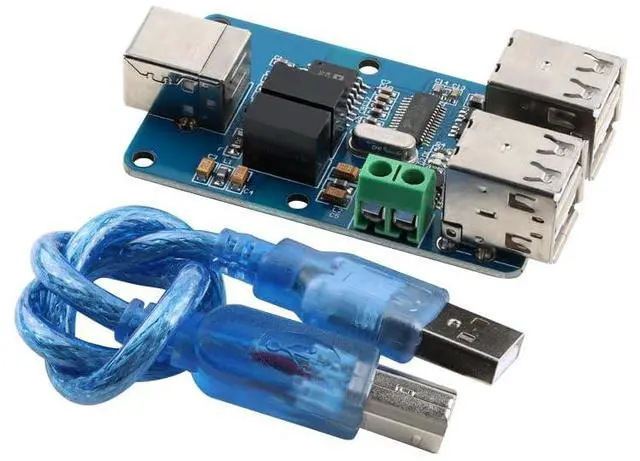

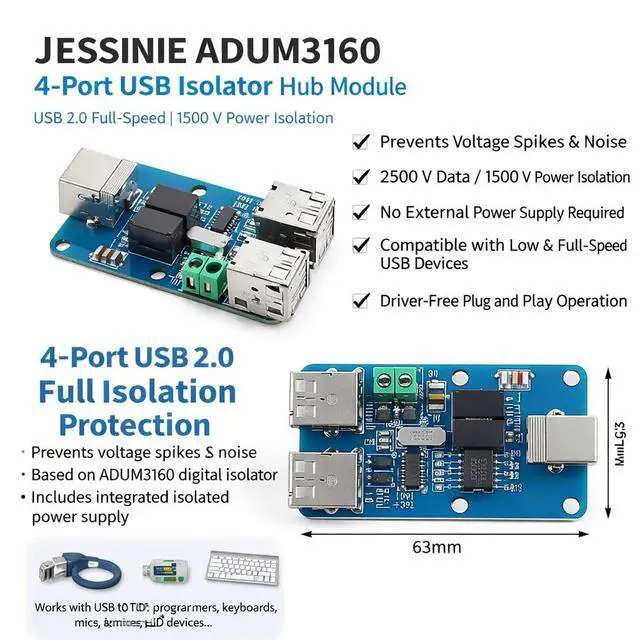

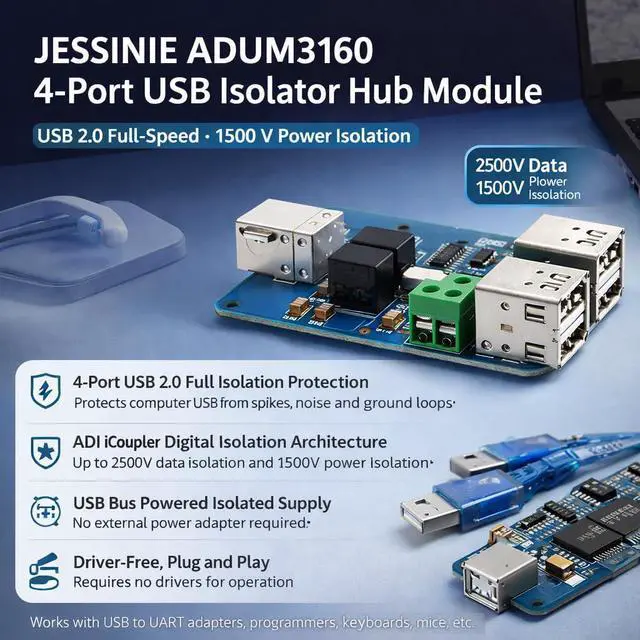

ADUM3160 4Port USB Isolator Hub Module, USB 2.0 FullSpeed, 1500 V Power Isolation
- 4Port USB 2.0 Full Isolation Protection Four isolated USB output ports based on ADUM3160; supports USB 2.0 lowspeed 1.5 Mbps and fullspeed 12 Mbps; fully isolates data and power paths; helps protect computer USB ports from voltage spikes, noise, and ground loop interference; ADI iCoupler Digital Isolation Architecture Uses ADI iCoupler isolation technology; provides up to 2500 V data isolation and 1500 V power isolation; separates host and device grounds; improves signal reliability when connecting externally powered or noisesensitive USB devices; USB Bus Powered With Integrated Isolated Supply Powered directly from the host USB port; integrated B0505S isolated power module delivers up to 1 W output; no external power adapter required; simplifies setup while maintaining isolated power delivery to connected USB devices; Wide USB Transfer Type Compatibility Supports control, bulk, interrupt, and isochronous transfers; compatible with common fullspeed and lowspeed USB devices; suitable for USB to serial adapters, programmers, keyboards, mice, and HID devices; does not support pure highspeed USB devices; DriverFree Plug And Play Operation No driver installation required on the host system; works as a transparent USB isolator; quick to deploy for testing and protection tasks; compatible with USB to UART adapters and debugging tools such as for Arduino based development setups
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Overview 4Port USB Isolation Module based on ADUM3160 digital isolator, using ADI iCoupler technology. Provides full USB data and power isolation to protect computer USB ports from high voltage, noise, and ground loops. No external power supply or driver required.
1.
Product Parameters Isolation IC: ADUM3160
Isolation Technology: iCoupler digital isolation
USB Standard: USB 2.0 compatible
Supported Speed: LowSpeed 1.5 Mbps / FullSpeed 12
Mbps HighSpeed Support: Not supported
Isolation Voltage (Data): 2500 V
Isolation Voltage (Power): 1500 V Isolated
Power Module: B0505S
Output Power: 1 W
Power Supply: USB bus powered
Supported Transfers: Control, Bulk, Interrupt, Isochronous
Operating Temperature: 40 °C to +85 °C
2. Pin / Interface Function
Description USB IN: Host USB input from computer
USB OUT1OUT4: Isolated USB device ports
VCC (IN+): USB power input positive
GND: Power ground
3. Common Questions & Answers (FAQ)
Q1: Does this module support USB 3.0 devices?
A1: No, USB 3.0 and pure highspeed devices are not supported.
Q2: Is an external power supply required?
A2: No, it is powered directly from the computer USB port.
Q3: What devices are supported?
A3: USBtoUART, programmers, Udisk, camera, keyboard, mouse, and HID devices.
Q4: What is the isolation voltage?
A4: Data isolation up to 2500V and power isolation up to 1500V.
Q5: Does it require driver
installation?
A5: No, it is plugandplay without drivers.
1.
Product Parameters Isolation IC: ADUM3160
Isolation Technology: iCoupler digital isolation
USB Standard: USB 2.0 compatible
Supported Speed: LowSpeed 1.5 Mbps / FullSpeed 12
Mbps HighSpeed Support: Not supported
Isolation Voltage (Data): 2500 V
Isolation Voltage (Power): 1500 V Isolated
Power Module: B0505S
Output Power: 1 W
Power Supply: USB bus powered
Supported Transfers: Control, Bulk, Interrupt, Isochronous
Operating Temperature: 40 °C to +85 °C
2. Pin / Interface Function
Description USB IN: Host USB input from computer
USB OUT1OUT4: Isolated USB device ports
VCC (IN+): USB power input positive
GND: Power ground
3. Common Questions & Answers (FAQ)
Q1: Does this module support USB 3.0 devices?
A1: No, USB 3.0 and pure highspeed devices are not supported.
Q2: Is an external power supply required?
A2: No, it is powered directly from the computer USB port.
Q3: What devices are supported?
A3: USBtoUART, programmers, Udisk, camera, keyboard, mouse, and HID devices.
Q4: What is the isolation voltage?
A4: Data isolation up to 2500V and power isolation up to 1500V.
Q5: Does it require driver
installation?
A5: No, it is plugandplay without drivers.
