MPU9255 9Axis Motion Sensor Module, Accelerometer Gyroscope Magnetometer, 2.43.6 V, I2C SPI Interface
- 9Axis Motion And Orientation Integration MPU9255 combines a 3axis accelerometer, 3axis gyroscope, and 3axis magnetometer; delivers synchronized motion and magnetic field data; enables full orientation awareness; supports advanced attitude and heading calculations in compact systems; Configurable Acceleration And Rotation Ranges Accelerometer ranges from ±2 g to ±16 g and gyroscope ranges from ±250 dps to ±2000 dps; adjustable sensitivity supports slow movement or fast rotation; improves data relevance across different motion tracking scenarios; BuiltIn Magnetometer For Direction Sensing Integrated 3axis geomagnetic sensor provides directional reference data; supports electronic compass functionality; improves heading stability when combined with motion data; enables more complete spatial awareness; Digital Motion Processor And Low Power Design Onchip DMP assists with motion data processing; reduces host controller workload; low power operation supports extended runtime; suitable for continuous orientation monitoring in energyconscious designs; Flexible I2C And SPI Interface Options Supports both I2C and SPI digital communication; flexible pin configuration fits varied controller designs; INT pin provides data ready signaling; compatible with for Arduino and similar microcontroller platforms using proper voltage levels
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

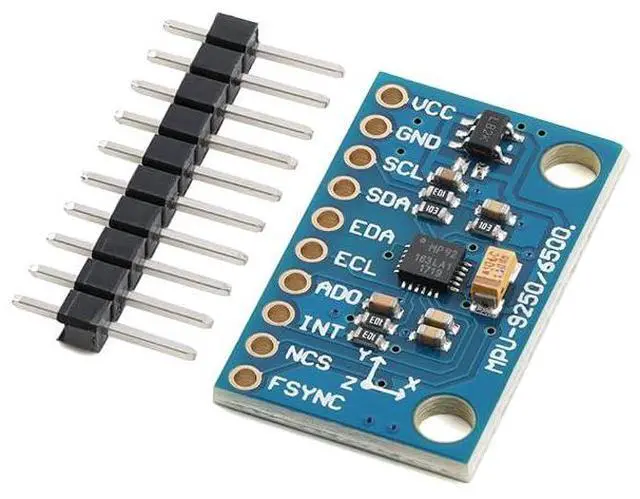

Product Overview MPU9255 9DOF Motion Sensor Module integrating a 3axis accelerometer, 3axis gyroscope, and 3axis magnetometer. Designed for precise motion tracking, orientation, and electronic compass applications. Built with original MPU9255 chip for stable and reliable performance.
1.
Product Parameters Sensor IC: MPU9255
Sensor Type: 9axis motion sensor (Accel + Gyro +
Magnetometer) Accelerometer Range: ±2 / ±4 / ±8 / ±16 g
Gyroscope Range: ±250 / ±500 / ±1000 / ±2000 dps
Magnetometer Range: 3axis geomagnetic sensing
Supply Voltage (VCC): 2.43. 6 V DC
Output Type: Digital motion and magnetic data
Communication Interface: I2C /
SPI OnChip Features: DMP, temperature sensor
Power Consumption: Low power design
Operating Temperature: 40 °C to +85 °C
2. Pin Function
Description VCC (IN+): DC power input positive
GND: Power ground SCL /
SCLK: I2C clock or SPI clock SDA /
SDI: I2C data or SPI data input
SDO: SPI data output / I2C address select
CS: SPI chip select, active low
INT: Data ready interrupt output
3. Common Questions & Answers (FAQ)
Q1: What sensors are integrated in the MPU9255?
A1: It includes accelerometer, gyroscope, and magnetometer.
Q2: What voltage is required to power the module?
A2: It operates from 2.4V to 3.6V DC.
Q3: Which communication interfaces are supported?
A3: Both I2C and SPI interfaces are supported.
Q4: Can it be used as an electronic compass?
A4: Yes, the builtin magnetometer enables compass functions.
Q5: Is it suitable for drones or robotics?
A5: Yes, it is widely used for motion and orientation sensing.
1.
Product Parameters Sensor IC: MPU9255
Sensor Type: 9axis motion sensor (Accel + Gyro +
Magnetometer) Accelerometer Range: ±2 / ±4 / ±8 / ±16 g
Gyroscope Range: ±250 / ±500 / ±1000 / ±2000 dps
Magnetometer Range: 3axis geomagnetic sensing
Supply Voltage (VCC): 2.43. 6 V DC
Output Type: Digital motion and magnetic data
Communication Interface: I2C /
SPI OnChip Features: DMP, temperature sensor
Power Consumption: Low power design
Operating Temperature: 40 °C to +85 °C
2. Pin Function
Description VCC (IN+): DC power input positive
GND: Power ground SCL /
SCLK: I2C clock or SPI clock SDA /
SDI: I2C data or SPI data input
SDO: SPI data output / I2C address select
CS: SPI chip select, active low
INT: Data ready interrupt output
3. Common Questions & Answers (FAQ)
Q1: What sensors are integrated in the MPU9255?
A1: It includes accelerometer, gyroscope, and magnetometer.
Q2: What voltage is required to power the module?
A2: It operates from 2.4V to 3.6V DC.
Q3: Which communication interfaces are supported?
A3: Both I2C and SPI interfaces are supported.
Q4: Can it be used as an electronic compass?
A4: Yes, the builtin magnetometer enables compass functions.
Q5: Is it suitable for drones or robotics?
A5: Yes, it is widely used for motion and orientation sensing.
