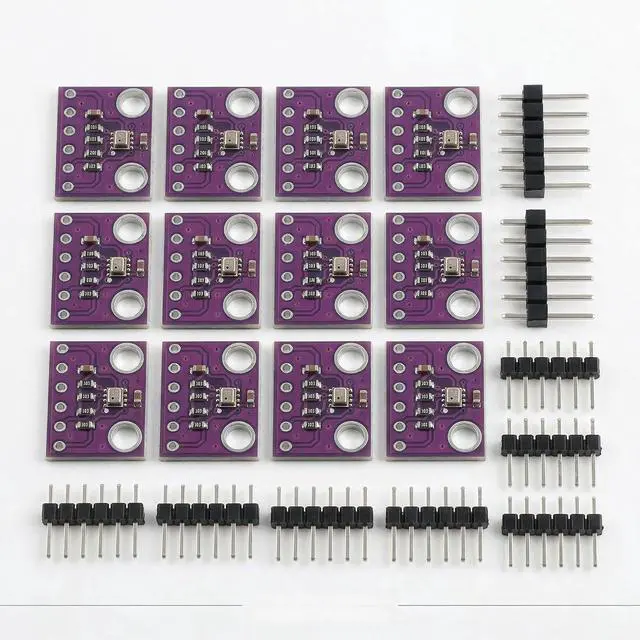

10pcs BMP280 Digital Barometric Pressure and Temperature Sensor Module, 3.3 V, I2C SPI Interface
Limited time offer, ends 08/23 By SlotNeat
- HighResolution Barometric Pressure Sensing BMP280 digital pressure sensor module; pressure measurement range from 300 hPa to 1100 hPa with ±1.0 hPa accuracy; delivers stable, factorycalibrated digital data; supports precise air pressure monitoring and height estimation in embedded control systems; Integrated Temperature Measurement Capability Builtin highprecision temperature sensor; operating range from 40 °C to 85 °C with ±1.0 °C accuracy; provides temperature compensation for pressure readings; improves overall measurement reliability in changing ambient conditions; Dual Communication Interface Support Supports both I2C and SPI digital interfaces; flexible pin configuration allows easy integration with different controllers; simplifies wiring and firmware design; suitable for users needing adaptable communication options on compact sensor boards; LowPower 3.3 V Operation Designed for 3.3 V power supply operation; optimized for low current consumption; supports longterm continuous sensing; well suited for batterypowered and alwayson monitoring applications requiring efficient energy use; Compact Module For Easy Integration Small LGAbased sensor module with clearly labeled pins; fits spaceconstrained PCB designs; compatible with for Arduino and other 3.3 V microcontroller platforms; supports rapid prototyping and clean system layouts
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

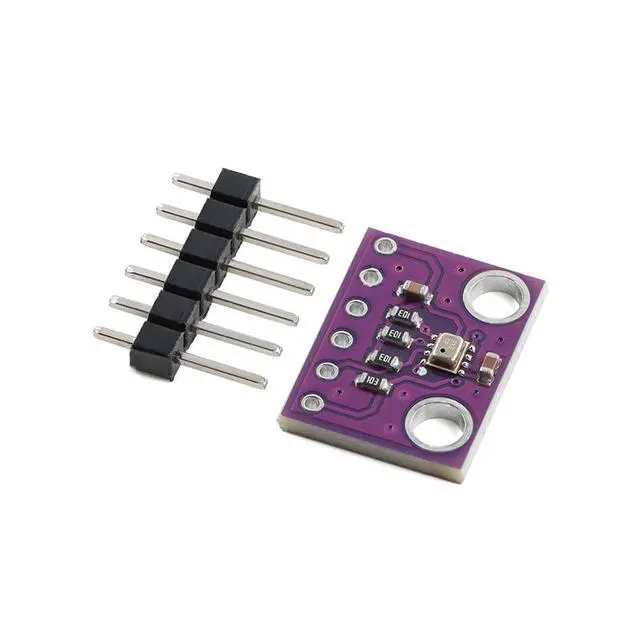

Product Overview BMP280 Digital Barometric Pressure Sensor Module with highprecision temperature measurement. Built with original Bosch BMP280 chip, offering stable performance, low power consumption, and compact size. Ideal for altitude measurement, weather monitoring, and embedded applications.
1.
Product Parameters Sensor IC: BMP280
Sensor Type: Digital barometric pressure & temperature sensor
Supply Voltage (VCC): 3.3 V DC
Pressure Measurement Range: 3001100 hPa
Pressure Accuracy: ± 1.0 hPa
Temperature Measurement Range: 40 °C to +85 °C
Temperature Accuracy: ± 1.0 °C
Communication Interface: I2C / SPI
Power Consumption: Ultralow power design
Package: LGA sensor module
2.

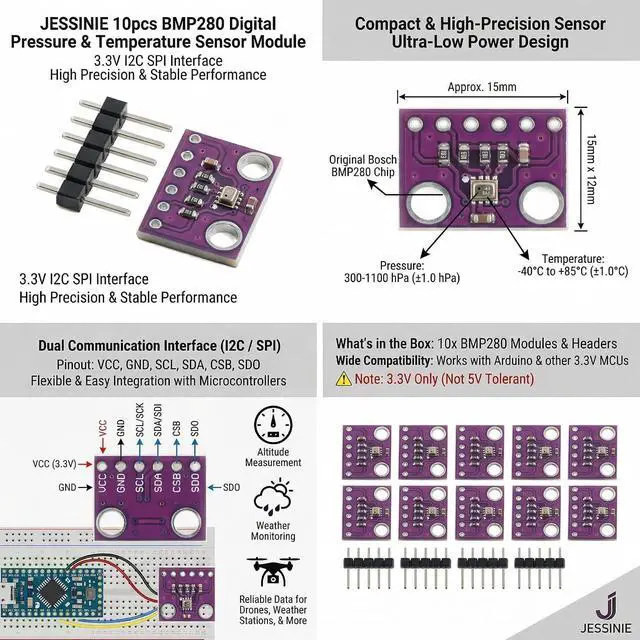

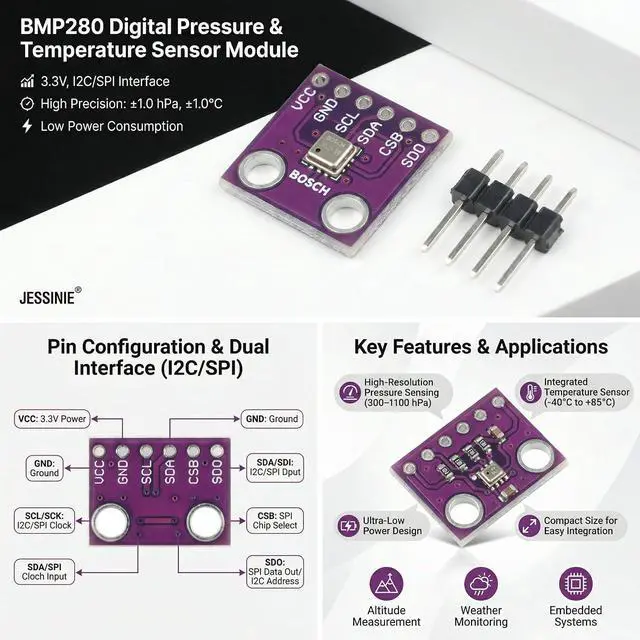

Pin Function Description VCC: Power supply input, 3.3
V GND: Power ground SCL /
SCK: I2C clock or SPI clock SDA /
SDI: I2C data or SPI data input
SDO: SPI data output / I2C address select
CS: SPI chip select, active low
3. Common Questions & Answers (FAQ)
Q1: What voltage does this module require?
A1: It operates at 3.3V DC and is not 5V tolerant.
Q2: Does it measure temperature as well?
A2: Yes, it provides highprecision temperature data.
Q3: Which interfaces are supported?
A3: Both I2C and SPI communication are supported.
Q4: Can it be used for altitude measurement?
A4: Yes, pressure data can be used to calculate altitude.
Q5: Is calibration required before use?
A5: No, the sensor outputs factorycalibrated digital data.
1.
Product Parameters Sensor IC: BMP280
Sensor Type: Digital barometric pressure & temperature sensor
Supply Voltage (VCC): 3.3 V DC
Pressure Measurement Range: 3001100 hPa
Pressure Accuracy: ± 1.0 hPa
Temperature Measurement Range: 40 °C to +85 °C
Temperature Accuracy: ± 1.0 °C
Communication Interface: I2C / SPI
Power Consumption: Ultralow power design
Package: LGA sensor module
2.
Pin Function Description VCC: Power supply input, 3.3
V GND: Power ground SCL /
SCK: I2C clock or SPI clock SDA /
SDI: I2C data or SPI data input
SDO: SPI data output / I2C address select
CS: SPI chip select, active low
3. Common Questions & Answers (FAQ)
Q1: What voltage does this module require?
A1: It operates at 3.3V DC and is not 5V tolerant.
Q2: Does it measure temperature as well?
A2: Yes, it provides highprecision temperature data.
Q3: Which interfaces are supported?
A3: Both I2C and SPI communication are supported.
Q4: Can it be used for altitude measurement?
A4: Yes, pressure data can be used to calculate altitude.
Q5: Is calibration required before use?
A5: No, the sensor outputs factorycalibrated digital data.
