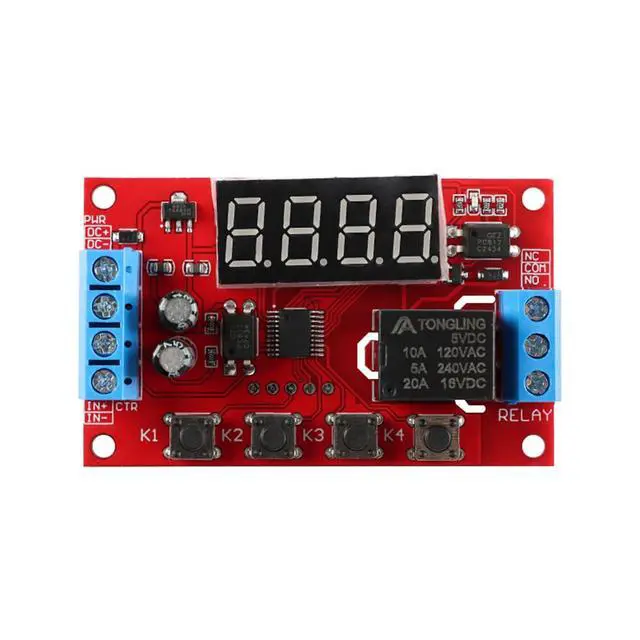

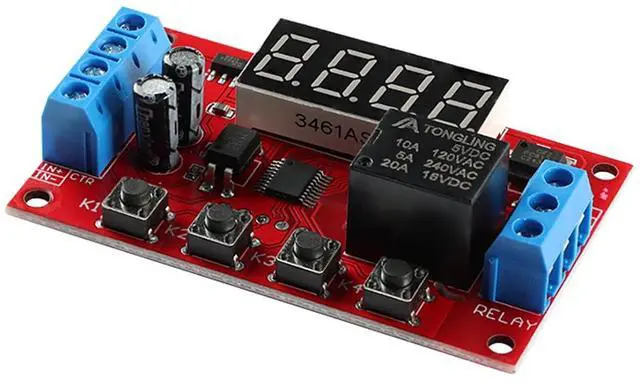

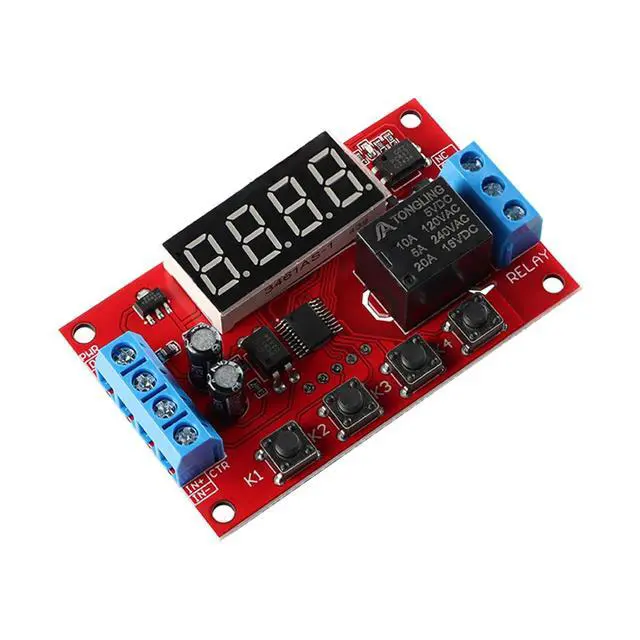

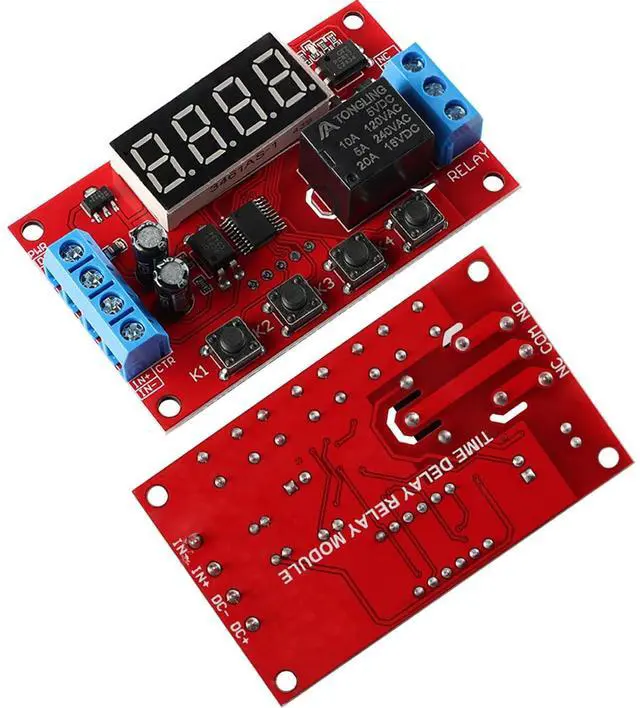

5V Multi-Mode Time Delay Relay Module, Adjustable Delay Timer, for Automation Home Appliances DIY Projects
- **32 Preset Functions for Versatile Applications**: The JESSINIE 5V Multi-mode Time Delay Relay Module is equipped with 32 preset functions, making it ideal for controlling devices like water pumps, motors, and solenoid valves in various DIY automation projects.; **Enhanced Safety with Anti-backconnection**: Featuring an anti-backconnection function, this module ensures protection against damage from incorrect power supply connections, enhancing the safety and longevity of your devices.; **Precision Timing with Wide Range**: Enjoy timing accuracy down to 0.01 seconds and adjustable timing from 0.1 seconds to 999 minutes, providing flexibility and precision for your automation needs.; **Low Power Consumption & Memory Function**: Designed with energy efficiency in mind, the module allows you to switch off the display to save power. It also features a power-off memory function, ensuring your settings are saved even after a power cut.; **User-friendly Setup and Operation**: Easily set up and modify working modes and timing parameters using intuitive buttons. The compact design (65 x 34.3 x 17.5 mm) fits seamlessly into any project, with a lightweight build of approximately 26g for easy integration.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description Description
1. New upgrade, increasing the number of module functions to 32, to meet more application requirements.
2. Anti-backconnection function of power supply, which will not damage the module due to wrong power supply.
3. Timing accuracy to 0.01 second. 0.1 seconds (minimum) ~999 minutes (maximum) optional 4.. Low power saving Settings, you can turn off the display area. Manual measurement is for reference only. The actual size is subject to the material object
Warm tips:
1. Please select the required V version (according to the relay identification difference above, the relay is 5V instant 5V version) to avoid wrong purchase.
2. The output of relay is passive contact without current output to control the on-off effect of a line.
3. Please input the trigger voltage strictly according to the selected version Timing accuracy to 0.01 second 32-module functions for versatile applications Anti-backconnection power supply protection DC5V/12V/24V input voltage
Output load: DC 30V, Max 10A; AC 250V, Max 5A Power off memory feature
Compact size: 65 x 34.3 x 17.5 mm Low power saving
Operating temperature range: -25 to 85
Signal input terminals: IN+, IN- High level trigger signal 5V, 12V, 24V Passive contact relay output Easy selection of required V version
Static current: 20mA
Operating current: 60mA Manual measurement reference Product parameters, Pin
Description Commodity name: Multi-function delay relay
Relay V number: DC5V/12V/24V 5V
Version: DC5V
power supply 12V version: DC12V
power supply 24V version: DC24V power supply
Output load: dc 30V, Max 10A. Ac 250V, maximum 5A
Trigger signal: 5V
version (high level: 5V)
Both 12V (HIGH level: 12V)
and 24V (high level: 5V) low levels are 0V
Static current: 20mA
Perating current: 60mA
Operating temperature: -25-85
Power off memory: Yes
product size: 65 x 34.3 X 17.5 (MM)

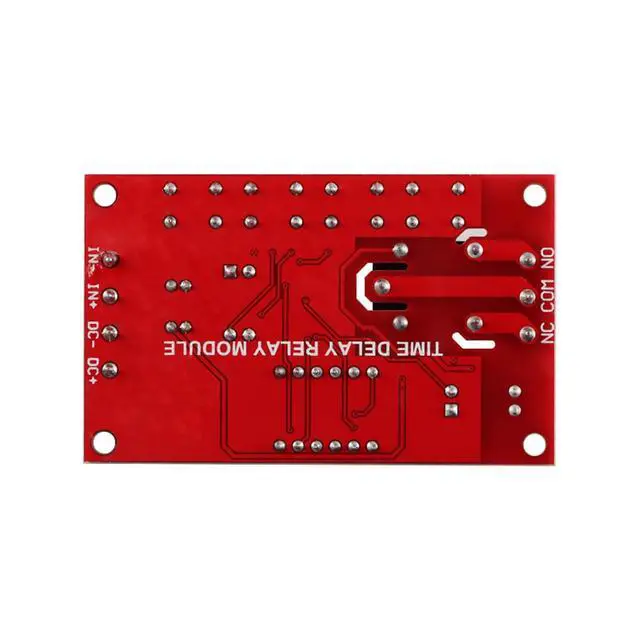

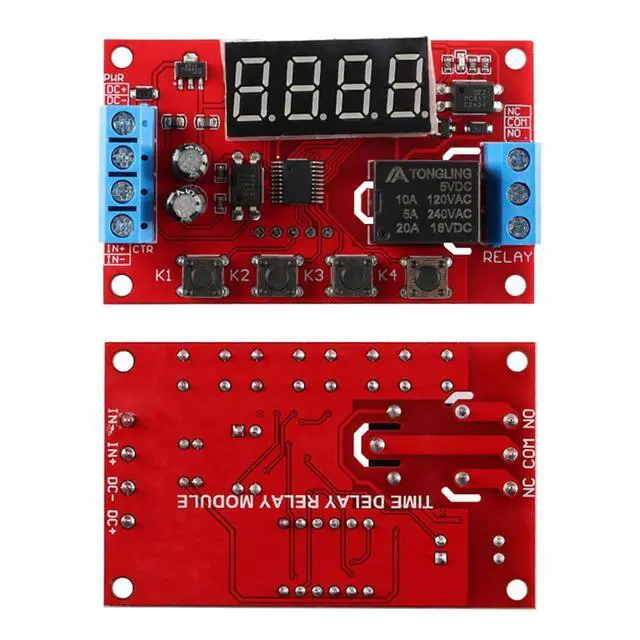

DC+-: input DC power supply+-
IN+-: signal input terminal+-
NO:
/COM:
/NC:
NO: Normally open interface of the relay. When the relay is pulled in, it is short-circuited with COM.
COM: Relay common port interface
NC: Normally closed end interface of the relay. When the relay is not pulled in, it is short-circuited with COM. Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 315 4.6 out of 5 stars 104 4.9 out of 5 stars 22 4.6 out of 5 stars 104 4.9 out of 5 stars 9 4.6 out of 5 stars 104 4.8 out of 5 stars 15 Model P/N B-30-1000 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 External Wire Diameter 0.56 mm 0.56 mm 0.5 mm 0.56 mm 0.8 mm 0.56 mm 0.3 mm Core Sectional Area 0.2 mm² 0.2 mm² none 0.2 mm² none 0.2 mm² none Material PVC PVC solder PVC solder PVC solder Wire Gauge 30AWG 30AWG none 30AWG none 30AWG none Temperature 105 113 183 107 183 112 183
1. New upgrade, increasing the number of module functions to 32, to meet more application requirements.
2. Anti-backconnection function of power supply, which will not damage the module due to wrong power supply.
3. Timing accuracy to 0.01 second. 0.1 seconds (minimum) ~999 minutes (maximum) optional 4.. Low power saving Settings, you can turn off the display area. Manual measurement is for reference only. The actual size is subject to the material object
Warm tips:
1. Please select the required V version (according to the relay identification difference above, the relay is 5V instant 5V version) to avoid wrong purchase.
2. The output of relay is passive contact without current output to control the on-off effect of a line.
3. Please input the trigger voltage strictly according to the selected version Timing accuracy to 0.01 second 32-module functions for versatile applications Anti-backconnection power supply protection DC5V/12V/24V input voltage
Output load: DC 30V, Max 10A; AC 250V, Max 5A Power off memory feature
Compact size: 65 x 34.3 x 17.5 mm Low power saving
Operating temperature range: -25 to 85
Signal input terminals: IN+, IN- High level trigger signal 5V, 12V, 24V Passive contact relay output Easy selection of required V version
Static current: 20mA
Operating current: 60mA Manual measurement reference Product parameters, Pin
Description Commodity name: Multi-function delay relay
Relay V number: DC5V/12V/24V 5V
Version: DC5V
power supply 12V version: DC12V
power supply 24V version: DC24V power supply
Output load: dc 30V, Max 10A. Ac 250V, maximum 5A
Trigger signal: 5V
version (high level: 5V)
Both 12V (HIGH level: 12V)
and 24V (high level: 5V) low levels are 0V
Static current: 20mA
Perating current: 60mA
Operating temperature: -25-85
Power off memory: Yes
product size: 65 x 34.3 X 17.5 (MM)
DC+-: input DC power supply+-
IN+-: signal input terminal+-
NO:
/COM:
/NC:
NO: Normally open interface of the relay. When the relay is pulled in, it is short-circuited with COM.
COM: Relay common port interface
NC: Normally closed end interface of the relay. When the relay is not pulled in, it is short-circuited with COM. Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 315 4.6 out of 5 stars 104 4.9 out of 5 stars 22 4.6 out of 5 stars 104 4.9 out of 5 stars 9 4.6 out of 5 stars 104 4.8 out of 5 stars 15 Model P/N B-30-1000 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 External Wire Diameter 0.56 mm 0.56 mm 0.5 mm 0.56 mm 0.8 mm 0.56 mm 0.3 mm Core Sectional Area 0.2 mm² 0.2 mm² none 0.2 mm² none 0.2 mm² none Material PVC PVC solder PVC solder PVC solder Wire Gauge 30AWG 30AWG none 30AWG none 30AWG none Temperature 105 113 183 107 183 112 183
