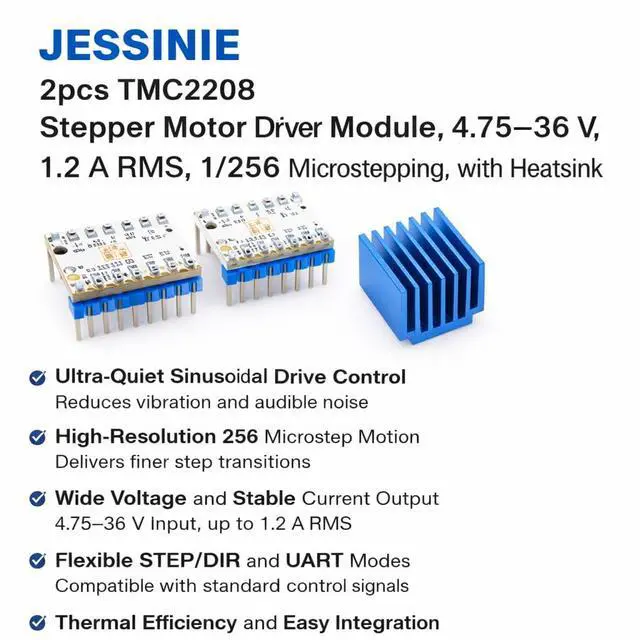

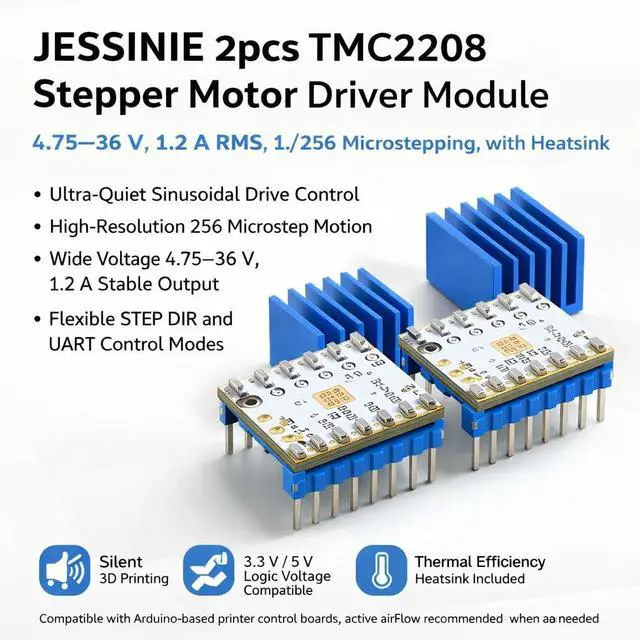

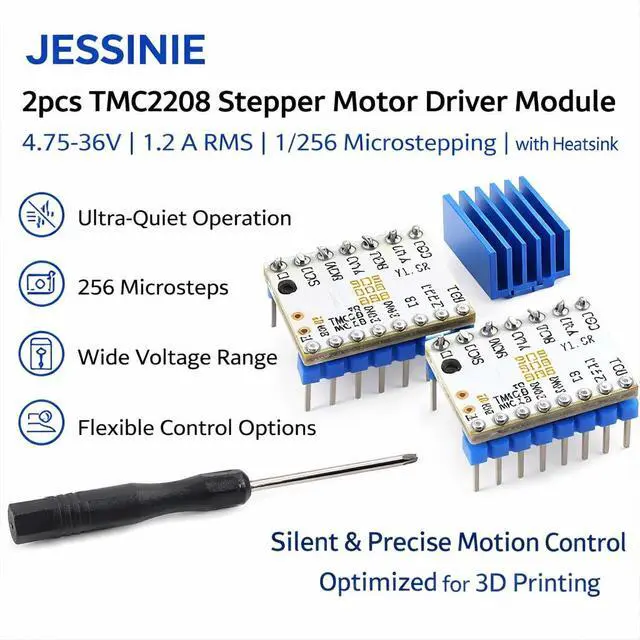

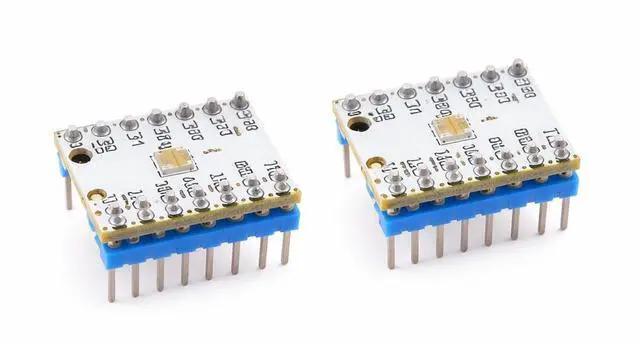

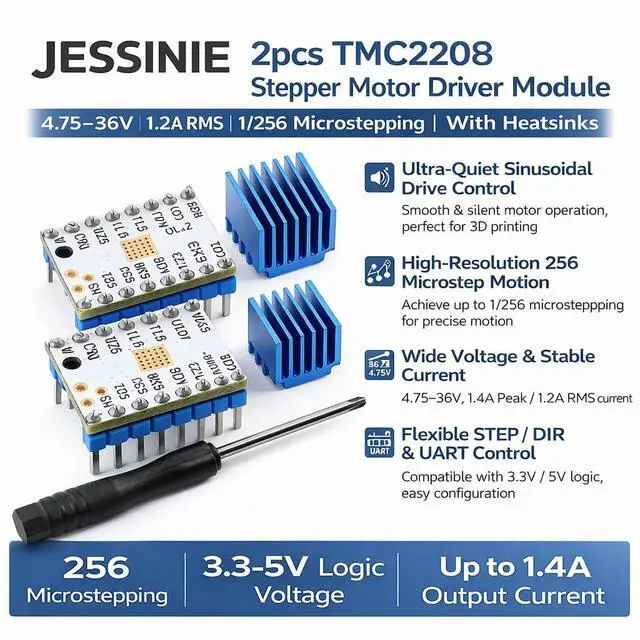

2pcs TMC2208 Stepper Motor Driver Module, 4.7536 V, 1.2 A RMS, 1/256 Microstepping, with Heatsink
Limited time offer, ends 08/23 By SlotNeat
- UltraQuiet Sinusoidal Drive Control TMC2208 stepper motor driver module; sinusoidal current control reduces vibration and audible noise; optimized for smooth motor rotation at low and medium speeds; supports quiet desktop 3D printing and motion systems used in home and office settings; HighResolution 256 Microstep Motion Supports up to 1/256 microstep subdivision; delivers finer current waveforms and smoother step transitions; improves positioning accuracy and surface consistency; suitable for detailed print layers and precise motion control tasks; Wide Voltage And Stable Current Output Motor supply voltage range from 4.75 V to 36 V; maximum output current up to 1.4 A with recommended operation at 1.2 A or less; supports twophase bipolar stepper motors commonly used in printer motion assemblies; Flexible STEP DIR And UART Modes Supports standard STEP and DIR pulse control as well as UART configuration; allows simple standalone operation or advanced parameter tuning; logic voltage compatible with 3.3 V and 5 V controllers for flexible system integration; Thermal Efficiency And Easy Integration Low heat generation design supports long operating periods; includes a heatsink to assist thermal dissipation; helps maintain stable performance under continuous use; compatible with for Arduinobased printer control boards, active airflow recommended when needed
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Overview TMC2208 UltraQuiet Stepper Motor Driver Module (White PCB) with heatsink. Designed for smooth, silent, and efficient motion control in 3D printers. Supports highresolution microstepping and flexible control via STEP/DIR or UART.
1.
Product Parameters Driver IC: TMC2208
Motor Type: Twophase bipolar stepper motor
Control Interface: STEP / DIR or UART
Motor Supply Voltage (VM): 4.7536 V DC Logic
Voltage (VIO): 3.3 V / 5 V Max
Output Current: 1.4
A Recommended Operating Current: 1.2
A Peak Current: 2.0
A Microstepping Resolution: Up to 1/256
Operating Feature: Ultraquiet sinusoidal control
Efficiency: Reduced power consumption, low heat
Cooling: Heatsink included, active cooling recommended
2.
Pin Function Description VM: Motor power input positive
GND: Power ground
VIO: Logic power input
STEP: Step pulse input
DIR: Direction control input
EN: Enable input, active low PDN /
UART: UART configuration pin CFG1 /
CFG2: Driver configuration pins A1 /
A2: Motor phase A outputs B1 /
B2: Motor phase B outputs
3. Common Questions & Answers (FAQ)
Q1: Is this driver suitable for silent 3D printing?
A1: Yes, it is designed for ultraquiet and smooth motor operation.
Q2: What is the recommended current setting?
A2: Up to 1.2A is recommended for stable and cool operation.
Q3: Does it support 256 microsteps?
A3: Yes, it supports up to 1/256 microstepping.
Q4: Can it work with 3.3V controllers?
A4: Yes, logic inputs support both 3.3V and 5V.
Q5: Is UART configuration required?
A5: No, it can run in standalone STEP/DIR mode or UART mode.
1.
Product Parameters Driver IC: TMC2208
Motor Type: Twophase bipolar stepper motor
Control Interface: STEP / DIR or UART
Motor Supply Voltage (VM): 4.7536 V DC Logic
Voltage (VIO): 3.3 V / 5 V Max
Output Current: 1.4
A Recommended Operating Current: 1.2
A Peak Current: 2.0
A Microstepping Resolution: Up to 1/256
Operating Feature: Ultraquiet sinusoidal control
Efficiency: Reduced power consumption, low heat
Cooling: Heatsink included, active cooling recommended
2.
Pin Function Description VM: Motor power input positive
GND: Power ground
VIO: Logic power input
STEP: Step pulse input
DIR: Direction control input
EN: Enable input, active low PDN /
UART: UART configuration pin CFG1 /
CFG2: Driver configuration pins A1 /
A2: Motor phase A outputs B1 /
B2: Motor phase B outputs
3. Common Questions & Answers (FAQ)
Q1: Is this driver suitable for silent 3D printing?
A1: Yes, it is designed for ultraquiet and smooth motor operation.
Q2: What is the recommended current setting?
A2: Up to 1.2A is recommended for stable and cool operation.
Q3: Does it support 256 microsteps?
A3: Yes, it supports up to 1/256 microstepping.
Q4: Can it work with 3.3V controllers?
A4: Yes, logic inputs support both 3.3V and 5V.
Q5: Is UART configuration required?
A5: No, it can run in standalone STEP/DIR mode or UART mode.
