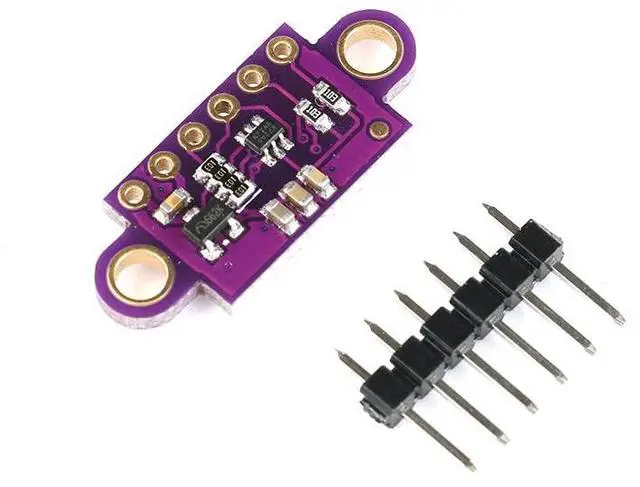

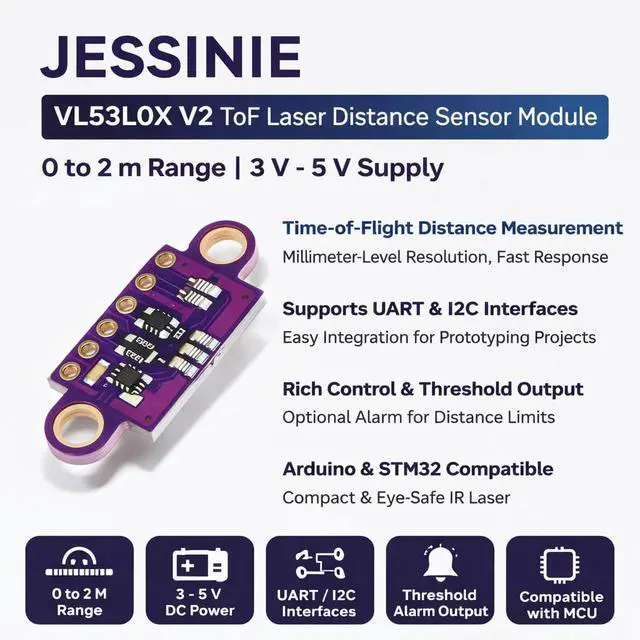

VL53L0X V2 ToF Laser Distance Sensor Module, 0 to 2 m Range, 3 V 5 V Supply

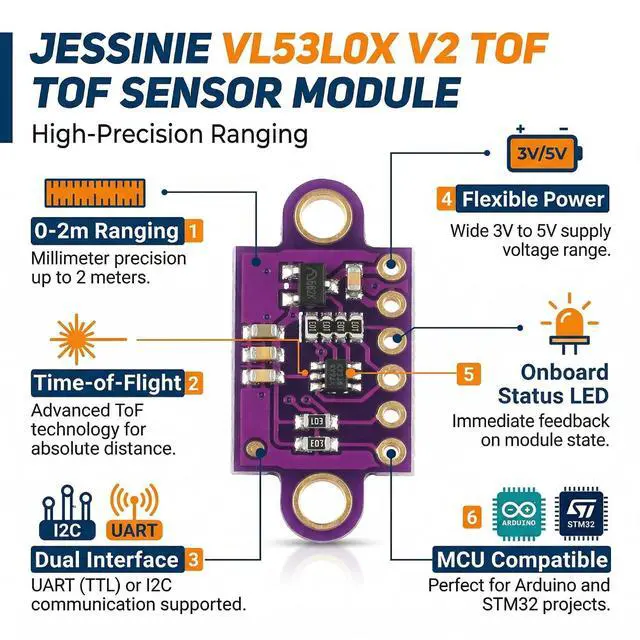

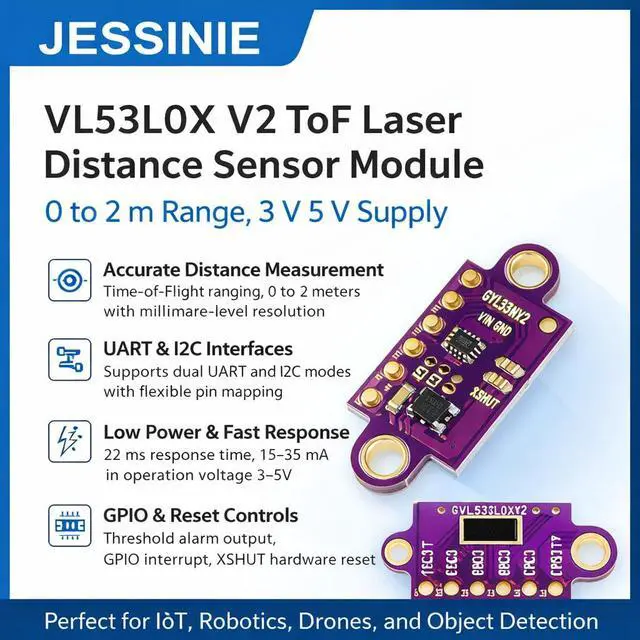

- TimeofFlight Distance Measurement Core VL53L0X V2 laser distance sensor module; timeofflight infrared ranging technology; absolute distance output from 0 to 2.0 m in lowlight longrange mode; millimeterlevel resolution; delivers stable and repeatable distance data for embedded sensing tasks; Dual Interface UART And I2C Support Supports TTL UART and I2C communication modes; default UART output with selectable mode via solder pad; flexible TX RX or SDA SCL pin mapping; simplifies integration with different controllers and allows fast firmware adaptation during prototyping; Fast Response And Low Power Operation Typical response time 22 ms in fast measurement mode; operating current 15 to 35 mA; supply voltage range 3.0 to 5.0 V; suitable for continuous distance monitoring while maintaining low power consumption in compact electronic designs; Rich Control And Status Outputs Provides GPIO interrupt output and XSHUT hardware reset control; optional threshold alarm output for distance limit detection; onboard LED indicates working status and initialization state; helps reduce debugging time and improves system observability; Compact Size And MCU Compatibility Small module size 25 mm by 15.6 mm for spacelimited layouts; compatible with for Arduino and for STM32 using UART or I2C libraries; eyesafe infrared laser source; designed for proximity sensing and object detection applications only
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

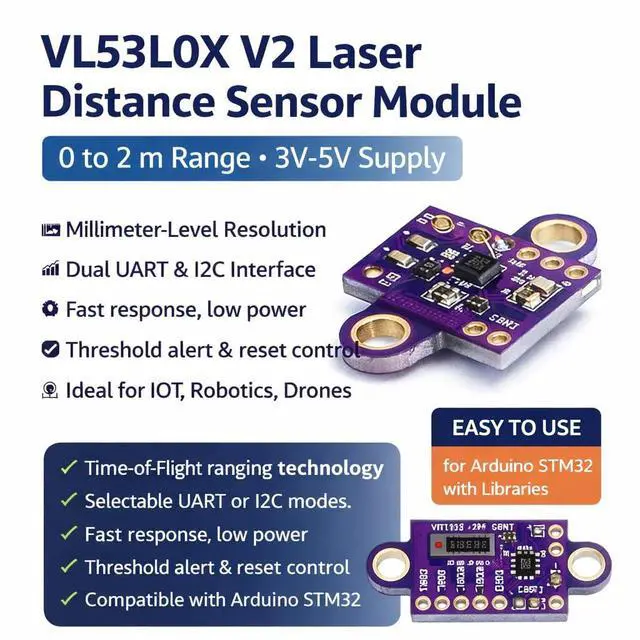

Product Overview VL53L0X V2 ToF Laser Distance Sensor Module (GYVL53L0X / GY56). Uses timeofflight infrared technology to directly output absolute distance data. Supports UART or I²C modes, low power, compact size, ideal for IoT, robotics, drones, and obstacle detection.
1.
Product Parameters Sensor Type: ToF laser distance sensor
Core IC: VL53L0X
Measurement Range: 02.0 m (longrange mode, low light)
Resolution: Millimeter level
Response Time: 22 ms (fast mode)
Supply Voltage: DC 3.05.
0 V Operating Current: 1535 mA
Communication Interface: UART (TTL) / I²C
Operating Temperature: 20°C to +85°C
Storage Temperature: 40°C to +125°C
Module Size: 25 mm × 15.6 mm
Laser Safety: Eyesafe IR laser

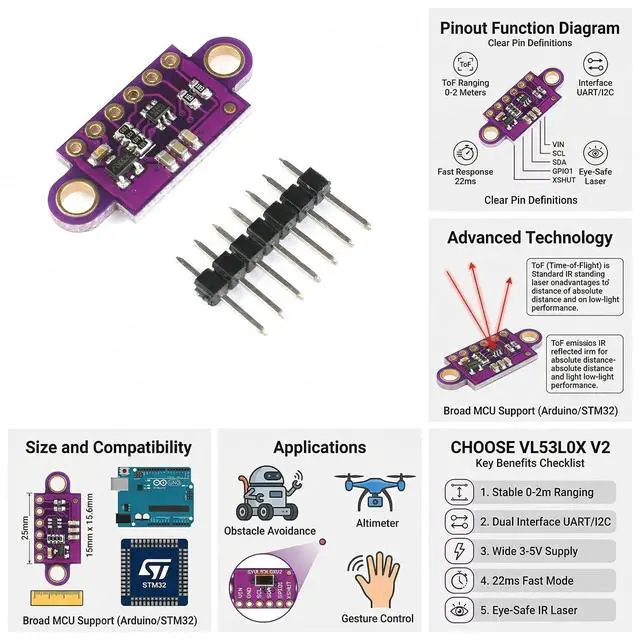

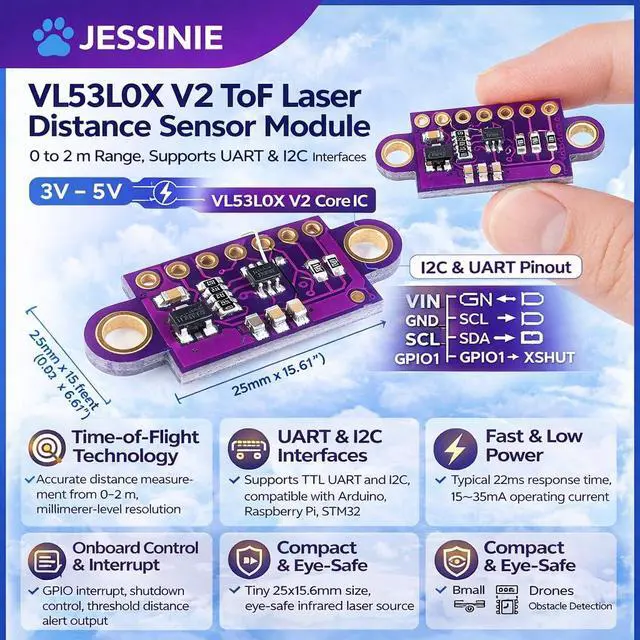

2. Pin Function Description VCC /
VIN: DC power input positive (35
V) GND: Power ground TX /
SDA: UART transmit or I²C data RX /
SCL: UART receive or I²C clock
GPIO1: Interrupt output
XSHUT: Shutdown / reset control CTOUT /
SET: Threshold alarm status or distance limit setting
3. Common Questions & Answers (FAQ)
Q1: What is the default communication mode?
A1: The module defaults to UART mode; I²C can be selected via solder pad configuration.
Q2: Can it work with Arduino or STM32?
A2: Yes, it supports TTL UART and I²C, compatible with Arduino, STM32, and other MCUs.
Q3: What does the LED indicator mean?
A3: Solid ON means distance within threshold; blinking indicates out of range or init failure.
Q4: Is this safe for human use?
A4: Yes, it uses an eyesafe infrared laser compliant with safety standards.
Q5: Can it be used for obstacle avoidance?
A5: Yes, it is widely used in robots, drones, and smart devices for distance sensing.
1.
Product Parameters Sensor Type: ToF laser distance sensor
Core IC: VL53L0X
Measurement Range: 02.0 m (longrange mode, low light)
Resolution: Millimeter level
Response Time: 22 ms (fast mode)
Supply Voltage: DC 3.05.
0 V Operating Current: 1535 mA
Communication Interface: UART (TTL) / I²C
Operating Temperature: 20°C to +85°C
Storage Temperature: 40°C to +125°C
Module Size: 25 mm × 15.6 mm
Laser Safety: Eyesafe IR laser
2. Pin Function Description VCC /
VIN: DC power input positive (35
V) GND: Power ground TX /
SDA: UART transmit or I²C data RX /
SCL: UART receive or I²C clock
GPIO1: Interrupt output
XSHUT: Shutdown / reset control CTOUT /
SET: Threshold alarm status or distance limit setting
3. Common Questions & Answers (FAQ)
Q1: What is the default communication mode?
A1: The module defaults to UART mode; I²C can be selected via solder pad configuration.
Q2: Can it work with Arduino or STM32?
A2: Yes, it supports TTL UART and I²C, compatible with Arduino, STM32, and other MCUs.
Q3: What does the LED indicator mean?
A3: Solid ON means distance within threshold; blinking indicates out of range or init failure.
Q4: Is this safe for human use?
A4: Yes, it uses an eyesafe infrared laser compliant with safety standards.
Q5: Can it be used for obstacle avoidance?
A5: Yes, it is widely used in robots, drones, and smart devices for distance sensing.
