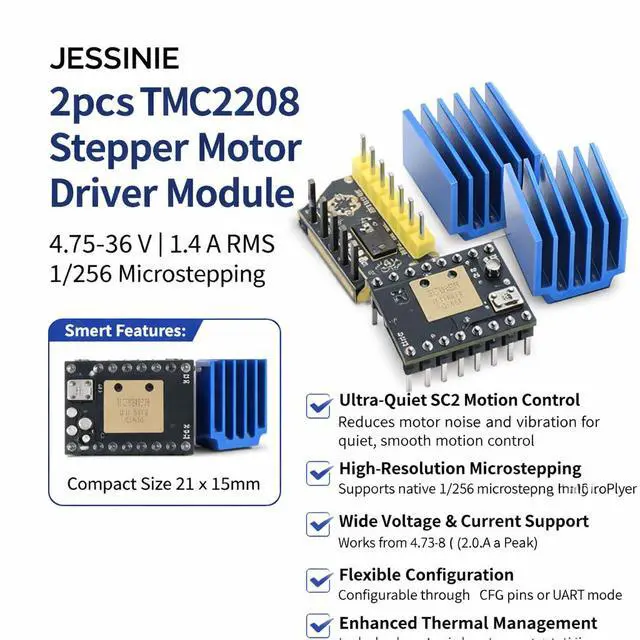

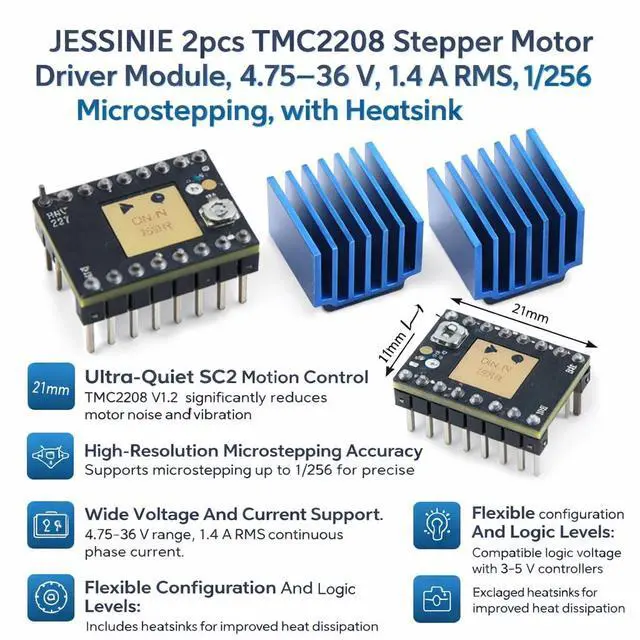

2pcs TMC2208 Stepper Motor Driver Module, 4.7536 V, 1.4 A RMS, 1/256 Microstepping, with Heatsink
- UltraQuiet SC2 Motion Control TMC2208 V1.2 stepper motor driver with SC2 technology; significantly reduces motor noise and vibration; STEP and DIR interface keeps control simple; enables smooth and quiet motion for desktop printers and precision motion projects used in home or office environments; HighResolution Microstepping Accuracy Supports native microstepping up to 1/256 with MicroPlyer interpolation; generates smooth sinusoidal current even with limited pulse rates; improves surface finish and positioning accuracy; ideal for detailed printing tasks and fine motion adjustment scenarios; Wide Voltage And Current Support Motor supply voltage range from 4.75 V to 36 V; continuous phase current up to 1.2 A RMS with peak current of 2.0 A; compatible with common twophase bipolar stepper motors; supports flexible power system designs across different printer setups; Flexible Configuration And Logic Levels Configurable through CFG pins or UART mode; logic voltage compatible with 3 V to 5 V controllers; allows easy integration with common control boards such as for Arduinobased printer controllers; supports tuning without complex firmware changes; Thermal Management And Stable Operation Includes dedicated heatsink for improved heat dissipation; helps maintain stable performance during extended operation; active airflow is recommended for higher current use; reduces thermal stress and supports reliable longterm motion control performance
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

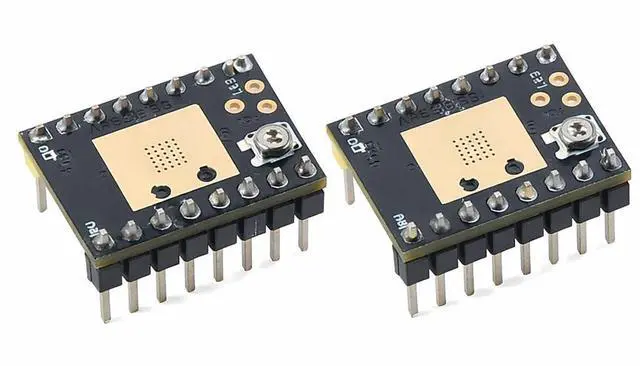

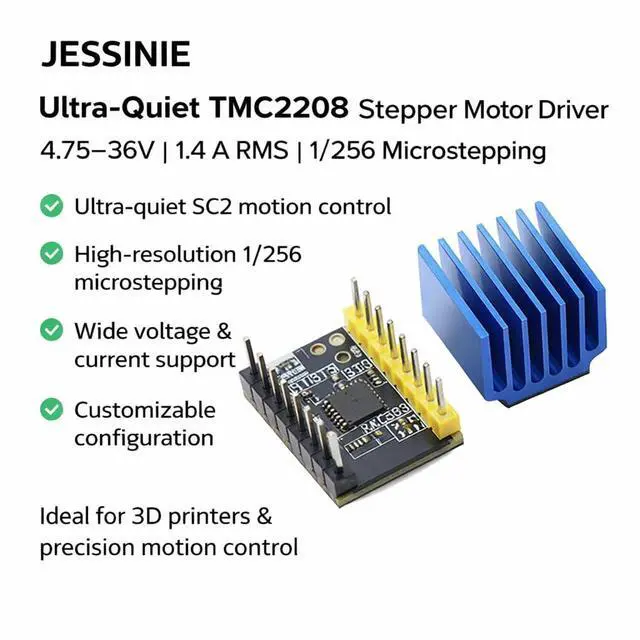

Product Overview TMC2208 V 1.2 UltraQuiet Stepper Motor Driver Module with heatsink and yellow pin headers. Uses advanced SC2 and MicroPlyer technology for nearsilent, smooth, and precise motion control. Ideal upgrade for 3D printers and precision motion systems.
1.
Product Parameters Driver IC: TMC2208 V 1.2
Motor Type: Twophase bipolar stepper motor
Control Interface: STEP /
DIR Configuration: CFG pins or UART
Motor Supply Voltage (VM): 4.7536 V DC Logic
Voltage (VIO): 35 V Continuous
Phase Current: 1.2
A RMS Peak Current: 2.0
A Microstepping: Native up to 1/256
MicroPlyer Interpolation: Up to 256 microsteps
Operating Feature: SC2 ultraquiet technology
Cooling: Heatsink required, active cooling recommended
2.
Pin Function Description VM: Motor power input positive
GND: Power ground
VIO: Logic power input
STEP: Step pulse input
DIR: Direction control input
EN: Enable control, active low PDN /
UART: UART communication pin CFG1 /
CFG2: Driver configuration pins A1 /
A2: Motor phase A outputs B1 /
B2: Motor phase B outputs
3. Common Questions & Answers (FAQ)
Q1: Is this driver really quiet compared to A4988?
A1: Yes, SC2 technology provides nearsilent motor operation.
Q2: What microstepping does it support?
A2: Up to 1/256 microsteps using MicroPlyer interpolation.
Q3: Does it need additional cooling?
A3: Yes, a heatsink is included and a cooling fan is recommended.
Q4: Is it compatible with 3.3V controllers?
A4: Yes, logic input supports both 3.3V and 5V.
Q5: Can it be used in standard 3D printers?
A5: Yes, it is widely used as a dropin upgrade for 3D printers.
1.
Product Parameters Driver IC: TMC2208 V 1.2
Motor Type: Twophase bipolar stepper motor
Control Interface: STEP /
DIR Configuration: CFG pins or UART
Motor Supply Voltage (VM): 4.7536 V DC Logic
Voltage (VIO): 35 V Continuous
Phase Current: 1.2
A RMS Peak Current: 2.0
A Microstepping: Native up to 1/256
MicroPlyer Interpolation: Up to 256 microsteps
Operating Feature: SC2 ultraquiet technology
Cooling: Heatsink required, active cooling recommended
2.
Pin Function Description VM: Motor power input positive
GND: Power ground
VIO: Logic power input
STEP: Step pulse input
DIR: Direction control input
EN: Enable control, active low PDN /
UART: UART communication pin CFG1 /
CFG2: Driver configuration pins A1 /
A2: Motor phase A outputs B1 /
B2: Motor phase B outputs
3. Common Questions & Answers (FAQ)
Q1: Is this driver really quiet compared to A4988?
A1: Yes, SC2 technology provides nearsilent motor operation.
Q2: What microstepping does it support?
A2: Up to 1/256 microsteps using MicroPlyer interpolation.
Q3: Does it need additional cooling?
A3: Yes, a heatsink is included and a cooling fan is recommended.
Q4: Is it compatible with 3.3V controllers?
A4: Yes, logic input supports both 3.3V and 5V.
Q5: Can it be used in standard 3D printers?
A5: Yes, it is widely used as a dropin upgrade for 3D printers.
