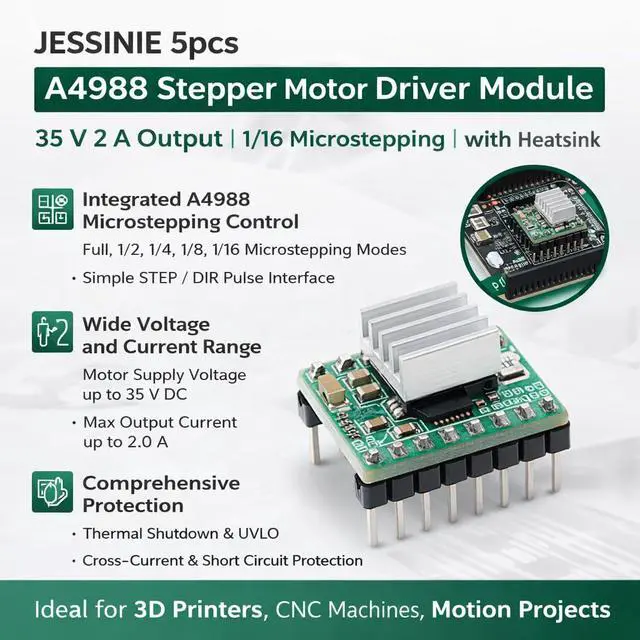

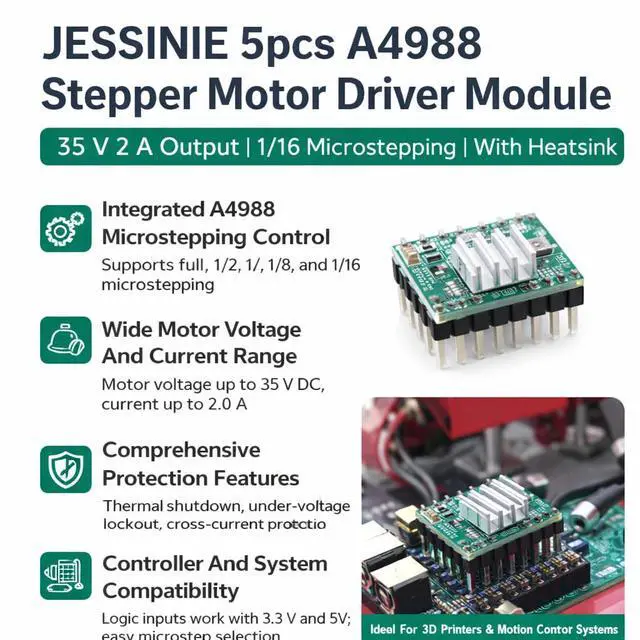

5pcs A4988 Stepper Motor Driver Module, 35 V 2 A Output, 1/16 Microstepping, with Heatsink

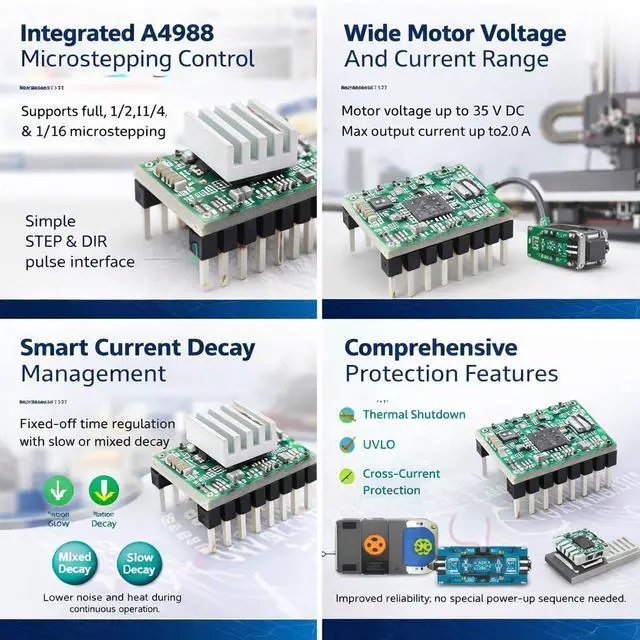

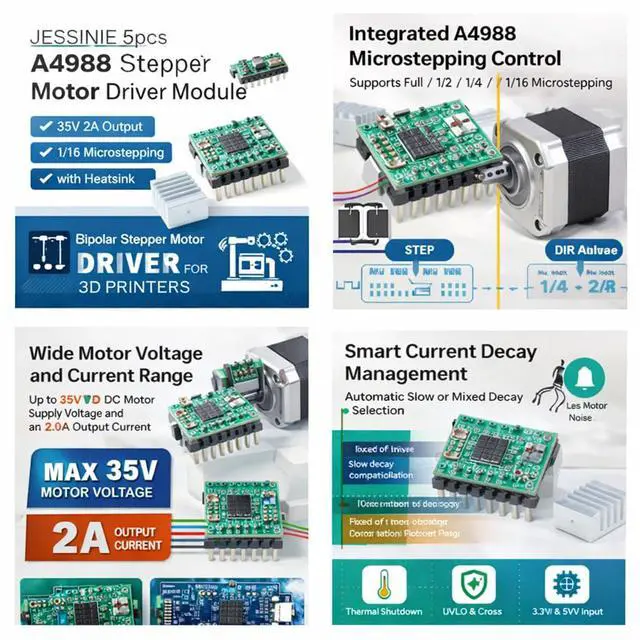

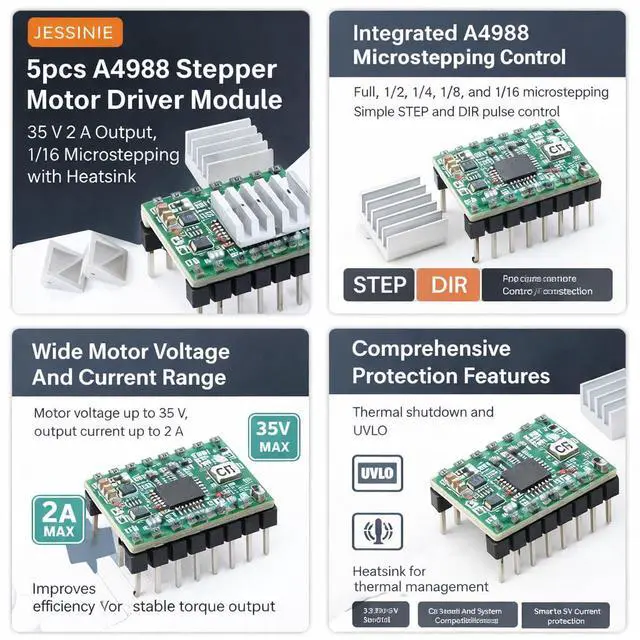

- Integrated A4988 Microstepping Control A4988 stepper motor driver module for bipolar motors; supports full, 1/2, 1/4, 1/8, and 1/16 microstepping; simple STEP and DIR pulse interface removes complex phase control; enables smooth and precise motion control with minimal firmware load; Wide Motor Voltage And Current Range Motor supply voltage up to 35 V DC; maximum output current up to 2.0 A with Rs value of 0.1 and proper cooling; low RDS on output stage improves efficiency; suitable for stable torque output in compact motion systems; Smart Current Decay Management Fixed offtime current regulation with automatic slow or mixed decay selection; mixed decay combines fast and slow current reduction; helps lower audible motor noise, improves microstep accuracy, and reduces heat during continuous operation; Comprehensive Protection Features Builtin thermal shutdown with hysteresis, undervoltage lockout, and crosscurrent protection; internal synchronous rectification lowers power loss during PWM operation; no special powerup sequence required, improving reliability during repeated restarts; Controller And System Compatibility Logic inputs compatible with 3.3 V and 5 V controllers; MS pins allow easy microstep selection; green PCB includes a heatsink for better thermal handling; compatible with for Arduinobased control boards used in printers and motion projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

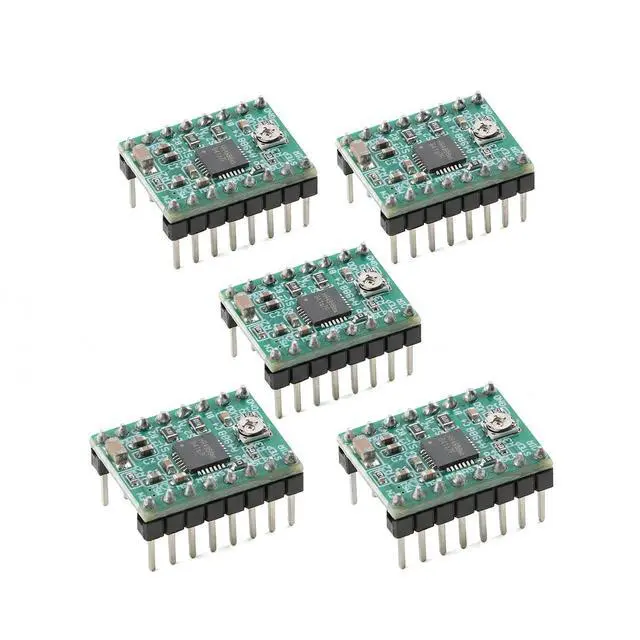

Product Overview A4988 Stepper Motor Driver Module (Green PCB) with heatsink. Integrated microstepping driver designed for bipolar stepper motors. Simple STEP/DIR interface, low noise operation, and comprehensive protection make it ideal for 3D printers and motion control systems.
1.
Product Parameters Driver IC: A4988
Motor Type: Bipolar stepper motor
Motor Supply Voltage (VMOT): Up to 35 V DC Logic
Supply Voltage (VDD): 3.3 V / 5 V compatible Max
Output Current: 2.0 A (Rs = 0.1, with adequate cooling)
Microstep Modes: Full, 1/2, 1/4, 1/8, 1/16
Current Regulation: Fixed offtime, slow / mixed decay
Protection Features: Thermal shutdown, UVLO, crosscurrent protection
Rectification: Internal synchronous rectification
PCB Type: Green board, with heatsink
2.
Pin Function Description VMOT: Motor power input positive
GND: Power ground
VDD: Logic power input
STEP: Step pulse input
DIR: Direction control input
EN: Enable control, active low MS1 / MS2 /
MS3: Microstep resolution selection
RESET: Driver reset input
SLEEP: Lowpower sleep control 1A / 1B: Motor phase
A outputs 2A / 2B: Motor phase B outputs
3. Common Questions & Answers (FAQ)
Q1: What type of motors can this driver control?
A1: It supports bipolar stepper motors used in 3D printers and CNC machines.
Q2: What is the maximum current output?
A2: Up to 2A with correct current setting and proper heatsinking.
Q3: Does this module support microstepping?
A3: Yes, up to 1/16 microstepping via MS pins.
Q4: Can it be used with 3.3V controllers?
A4: Yes, logic inputs are compatible with 3.3V and 5V.
Q5: Does it include protection features?
A5: Yes, it includes thermal, undervoltage, and shortcircuit protection.
1.
Product Parameters Driver IC: A4988
Motor Type: Bipolar stepper motor
Motor Supply Voltage (VMOT): Up to 35 V DC Logic
Supply Voltage (VDD): 3.3 V / 5 V compatible Max
Output Current: 2.0 A (Rs = 0.1, with adequate cooling)
Microstep Modes: Full, 1/2, 1/4, 1/8, 1/16
Current Regulation: Fixed offtime, slow / mixed decay
Protection Features: Thermal shutdown, UVLO, crosscurrent protection
Rectification: Internal synchronous rectification
PCB Type: Green board, with heatsink
2.
Pin Function Description VMOT: Motor power input positive
GND: Power ground
VDD: Logic power input
STEP: Step pulse input
DIR: Direction control input
EN: Enable control, active low MS1 / MS2 /
MS3: Microstep resolution selection
RESET: Driver reset input
SLEEP: Lowpower sleep control 1A / 1B: Motor phase
A outputs 2A / 2B: Motor phase B outputs
3. Common Questions & Answers (FAQ)
Q1: What type of motors can this driver control?
A1: It supports bipolar stepper motors used in 3D printers and CNC machines.
Q2: What is the maximum current output?
A2: Up to 2A with correct current setting and proper heatsinking.
Q3: Does this module support microstepping?
A3: Yes, up to 1/16 microstepping via MS pins.
Q4: Can it be used with 3.3V controllers?
A4: Yes, logic inputs are compatible with 3.3V and 5V.
Q5: Does it include protection features?
A5: Yes, it includes thermal, undervoltage, and shortcircuit protection.
