5pcs A4988 Stepper Motor Driver Module, 35 V 2 A, 1/16 Microstepping, with Heatsink
- Integrated Microstepping Driver Core A4988 stepper motor driver module; supports bipolar motors with full, 1/2, 1/4, 1/8, and 1/16 microstepping; STEP and DIR pulse control removes complex phase tables; simplifies motion control for controllerlimited systems; Wide Voltage And Current Capability Motor supply voltage up to 35 V DC; maximum output current up to 2.0 A with Rs 0.1 and proper cooling; low RDS on output stage improves efficiency; suitable for stable torque output in compact motion platforms; Advanced Current Decay Control Automatic selection of slow or mixed current decay modes; mixed decay combines fast and slow decay within fixed offtime; reduces audible noise, improves step accuracy, and lowers power dissipation during highresolution microstepping; BuiltIn Protection And Reliability Includes thermal shutdown with hysteresis, undervoltage lockout, and crosscurrent protection; synchronous rectification reduces heat during PWM operation; no special poweron sequence required, improving reliability during frequent restarts; Logic Level And System Compatibility Logic inputs compatible with 3.3 V and 5 V controllers; works with common control boards such as for Arduinobased motion controllers; red PCB includes heatsink for thermal support; easy to integrate into CNC and printer control setups
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

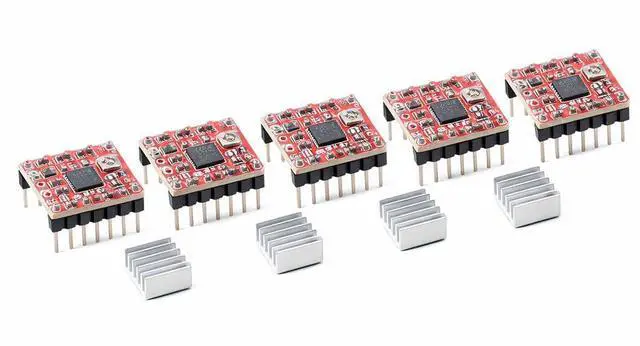

Product Overview A4988 Stepper Motor Driver Module (Red PCB) with heatsink. Integrated microstepping driver for bipolar stepper motors, widely used in 3D printers and CNC systems. Simple STEP/DIR control, low noise, and reliable protection features.
1.
Product Parameters Driver IC: A4988
Motor Type: Bipolar stepper motor
Supply Voltage (VMOT): Up to 35 V DC Logic
Voltage (VDD): 3.3 V / 5 V compatible Max
Output Current: Up to 2.0 A (Rs = 0.1, with cooling)
Microstep Modes: Full, 1/2, 1/4, 1/8, 1/16
Current Control: Fixed offtime, slow / mixed decay
Protection: Thermal shutdown, UVLO, crosscurrent protection
Rectification: Internal synchronous rectification
PCB Type: Red board, with heatsink
2.
Pin Function Description VMOT: Motor power input positive
GND: Power ground
VDD: Logic supply input
STEP: Step pulse input
DIR: Direction control input
EN: Enable control (low active) MS1 / MS2 /
MS3: Microstep selection pins
RESET: Reset input
SLEEP: Sleep mode control 1A / 1B: Motor phase
A output 2A / 2B: Motor phase B output
3. Common Questions & Answers (FAQ)
Q1: What motors are compatible with this driver?
A1: It supports bipolar stepper motors commonly used in 3D printers.
Q2: What is the maximum current output?
A2: Up to 2A with proper cooling and correct current adjustment.
Q3: Does it support microstepping?
A3: Yes, up to 1/16 microstepping via MS1MS3 pins.
Q4: Is it compatible with 3.3V controllers?
A4: Yes, logic inputs support both 3.3V and 5V.
Q5: Is overheating protection included?
A5: Yes, it has builtin thermal shutdown protection.
1.
Product Parameters Driver IC: A4988
Motor Type: Bipolar stepper motor
Supply Voltage (VMOT): Up to 35 V DC Logic
Voltage (VDD): 3.3 V / 5 V compatible Max
Output Current: Up to 2.0 A (Rs = 0.1, with cooling)
Microstep Modes: Full, 1/2, 1/4, 1/8, 1/16
Current Control: Fixed offtime, slow / mixed decay
Protection: Thermal shutdown, UVLO, crosscurrent protection
Rectification: Internal synchronous rectification
PCB Type: Red board, with heatsink
2.
Pin Function Description VMOT: Motor power input positive
GND: Power ground
VDD: Logic supply input
STEP: Step pulse input
DIR: Direction control input
EN: Enable control (low active) MS1 / MS2 /
MS3: Microstep selection pins
RESET: Reset input
SLEEP: Sleep mode control 1A / 1B: Motor phase
A output 2A / 2B: Motor phase B output
3. Common Questions & Answers (FAQ)
Q1: What motors are compatible with this driver?
A1: It supports bipolar stepper motors commonly used in 3D printers.
Q2: What is the maximum current output?
A2: Up to 2A with proper cooling and correct current adjustment.
Q3: Does it support microstepping?
A3: Yes, up to 1/16 microstepping via MS1MS3 pins.
Q4: Is it compatible with 3.3V controllers?
A4: Yes, logic inputs support both 3.3V and 5V.
Q5: Is overheating protection included?
A5: Yes, it has builtin thermal shutdown protection.
