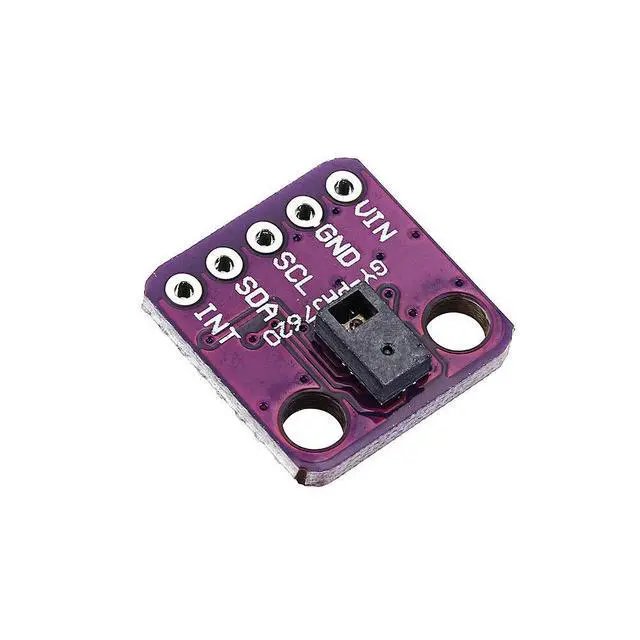

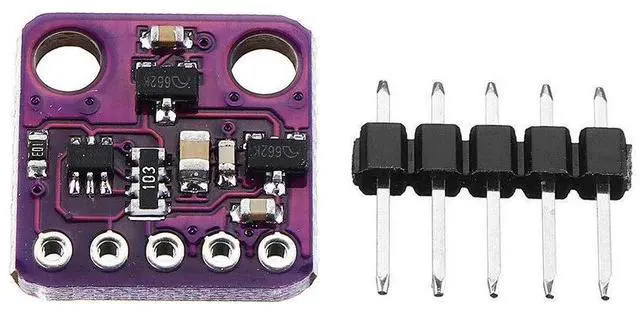

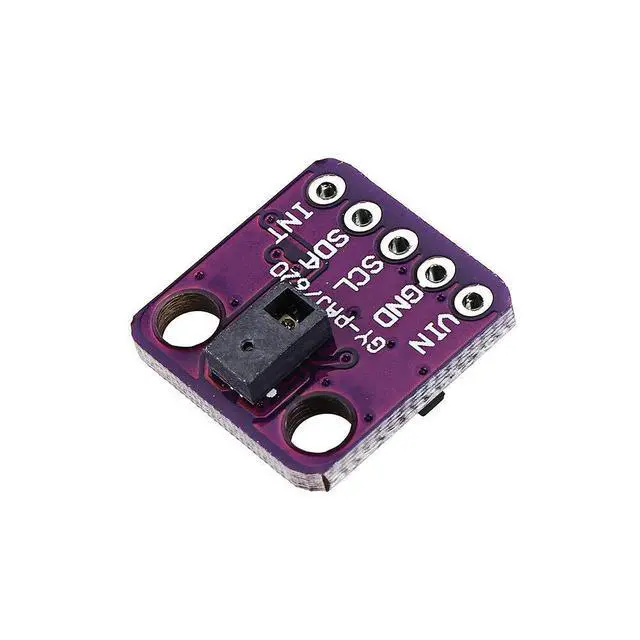

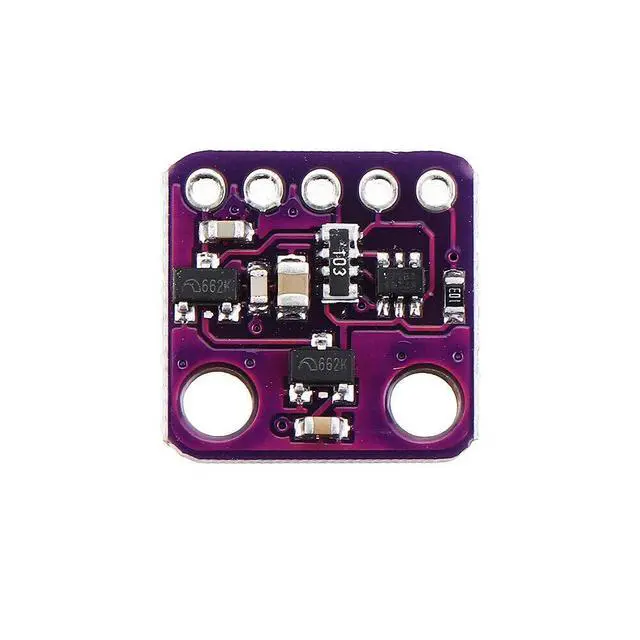

PAJ7620U2 3.3V Gesture Recognition Sensor Module Gesture Detection Gesture Monitor Motion Sensor Recognize Multiple Gestures

Description: PAJ7620U2 gesture recognition sensor. It can recognize 9 gestures including move up, move down, move left, move right, move forward, move backward, circle-clockwise, circle-counter clockwise, and wave. These gestures information can be simply accessed via the I2C bus. The PAJ7620U2 also offers built-in proximity detection for the purpose of sensing object approaching or departing. The PAJ7620U2 is designed with great flexibility in power-saving mechanism. The PAJ7620U2 is designed to operate from 2.8V to 3.3V over -40°C to +85°C and the pull-up voltage for the I2C bus and interrupt line is from 1.8V to 3.3V. Feature Typical supply voltage is 2.8V to 3.3V and I/O voltage is 1.8V ~ 3.3V Nine gesture recognition (Up / Down / Left / Right / Push / Pull / CW / CCW / Wave). Gesture speed is 60°/s to 600°/s in Normal Mode and 60°/s to 1200°/s in Gaming Mode.
Ambient light immunity: <100k Lux. Built-in proximity detection. Flexible power saving scheme I2C interface up to 400 kbit/s, Pull-up voltage from 1.8V to 3.3V. Ambient light noise cancellation
Package Included: 1pc PAJ7620U2 Various Gesture Recognition Sensor Module
