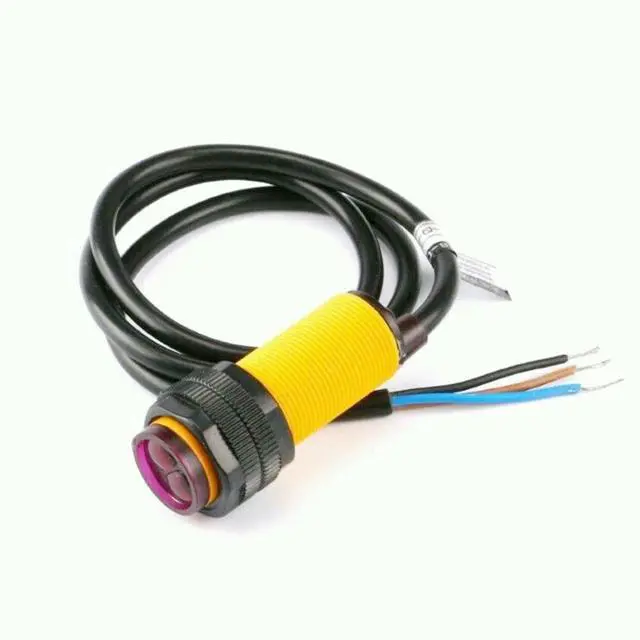

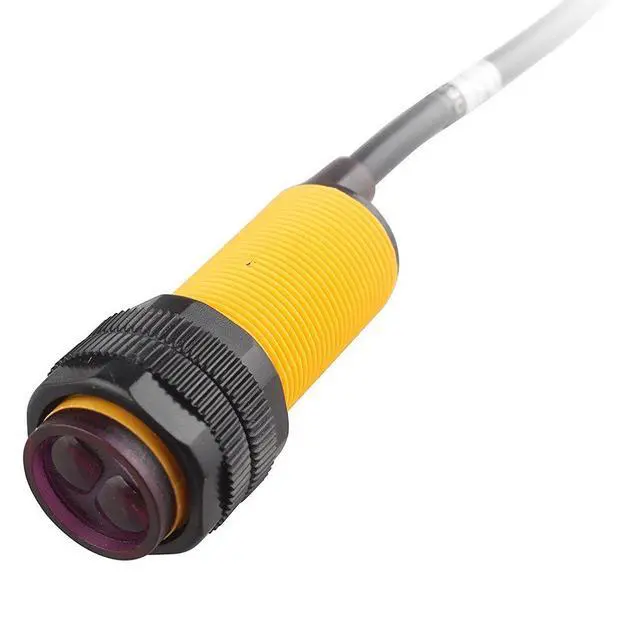

E18-D80NK Infrared Photoelectric Switch Obstacle Avoidance Sensor Module
- This is a collection of emission and reception in one photoelectric sensor.; Detection distance can be adjusted according to requirements.; The sensor has a detection range, interference by visible light small, easy to assemble, easy to use and so on.; Can be widely used in robot obstacle avoidance, assembly line and many other automated products.; Photoelectric sensor (photoelectric switch) NPN normally open.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Electrical Characteristics:
U: 5VDC
I: 100mA
Sn: 3-80CM
Size:
Diameter: 17MM
Sensor length: 45MM
Lead length: 45CM
Applications:
1. Production line automatic counting equipment 2. multi-function reminder 3. go maze robot 4. kitchen automation system 5. security anti-theft system Photoelectric switch
E18 technical parameters: 1. the output current DC / SCR /
Relay Control output: 100mA / 5V power supply 2. current consumption DC <25mA 3. response time <2ms 4.
pointing angle: 15 °, the effective distance 3-80CM adjustable 5.
testing objects: transparent or opaque body 6.
the working environment temperature: -25 ~ +55 7.
the standard test objects: below the sun 10000LX incandescent 3000LX following 8.
shell material: plastic
Package Included: 1*E18-D80NK Infrared Photoelectric Switch Obstacle Avoidance Sensor Module
U: 5VDC
I: 100mA
Sn: 3-80CM
Size:
Diameter: 17MM
Sensor length: 45MM
Lead length: 45CM
Applications:
1. Production line automatic counting equipment 2. multi-function reminder 3. go maze robot 4. kitchen automation system 5. security anti-theft system Photoelectric switch
E18 technical parameters: 1. the output current DC / SCR /
Relay Control output: 100mA / 5V power supply 2. current consumption DC <25mA 3. response time <2ms 4.
pointing angle: 15 °, the effective distance 3-80CM adjustable 5.
testing objects: transparent or opaque body 6.
the working environment temperature: -25 ~ +55 7.
the standard test objects: below the sun 10000LX incandescent 3000LX following 8.
shell material: plastic
Package Included: 1*E18-D80NK Infrared Photoelectric Switch Obstacle Avoidance Sensor Module
