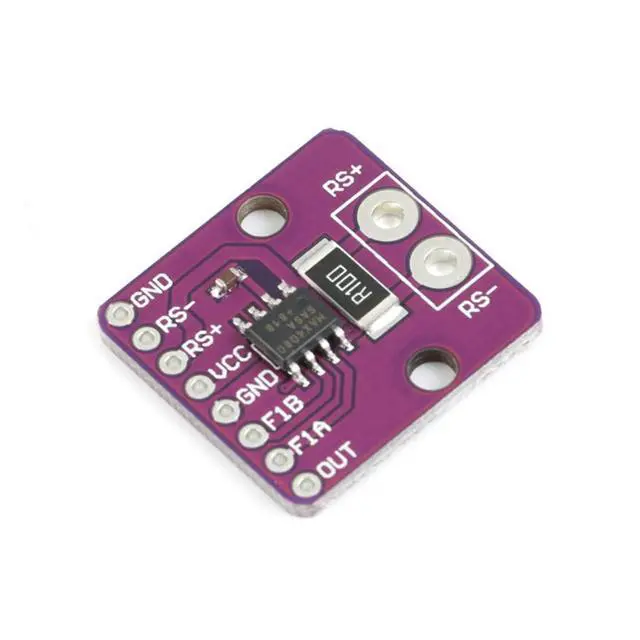

2pcs MAX4080SASA Current Module Current Sensor Amplifier High Accuracy Highly Integrated Voltage Current Source
- MAX4080 are a high-side current-Sensor amplifiers with an input voltage range of 4.5V to 76V; MAX4080's single output pin continuously monitors the entire charge-to-discharge process without additional polarity output.; MAX4080 offer users a highly integrated, simple, accurate, and compact current sensing solution.; Three different gains (5V/V, 20V/V, 60V/V, chip silkscreen suffixes are indicated by F, T, S respectively) support user select external Sensor resistors and it's easy to set the full-scale current and proportional output voltage.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Description: MAX4080 is a high-side current-Sensor amplifiers with an input voltage range of 4.5V to 76V, making them ideal for telecom, automotive, backplane, and other systems that require tight monitoring of high-voltage currents.
Parameters: Common
mode input voltage range: 4.5V to 76V
Maximum working current: 190uA
Full scale accuracy: ± 0.1 %
Low input offset voltage: 100V
Independent working power supply voltage: 4.5V to 76V

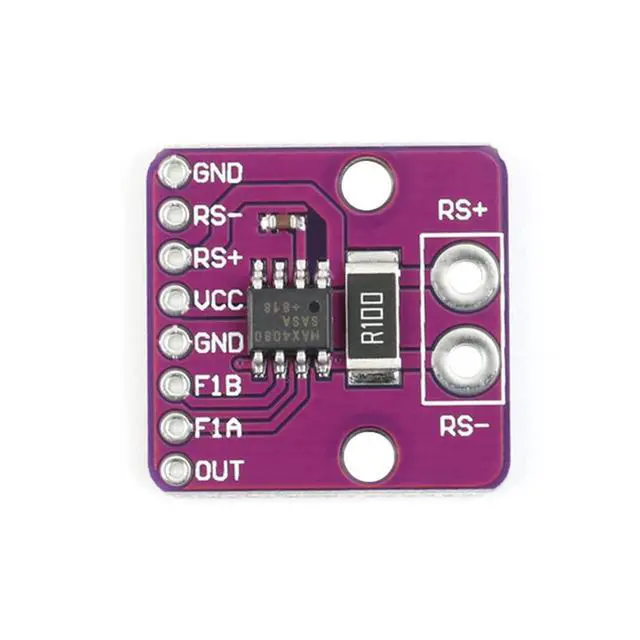

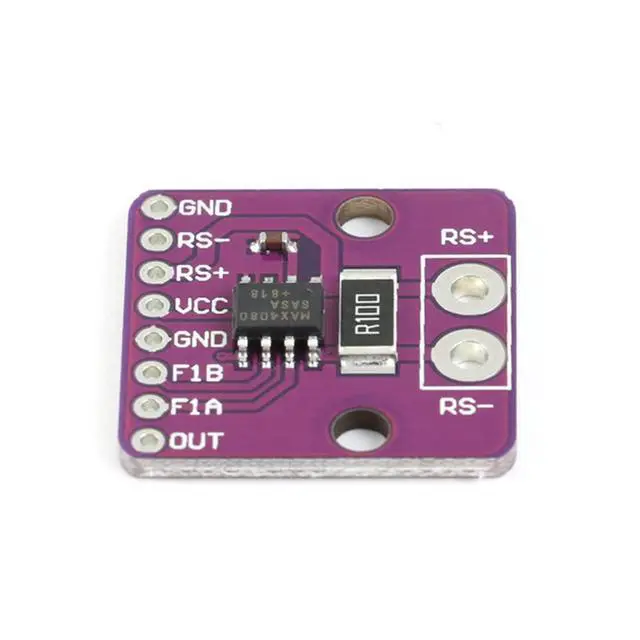

Pin Definition:
RS+: positive terminal of external
Sensor resistor RS-: negative terminal of external
Sensor resistor VCC: Positive power supply
OUT: Conversion voltage output FIA, FIB: MAX4080 chip used by the module, no connection
Applications: 48V Telecom and Backplane Current Detection Car (12V, 24V or 42V battery) Avalanche photodiode and PIN diode current monitoringb Two-way motor control General purpose system / board level current sensing Power management system Precision high voltage current source

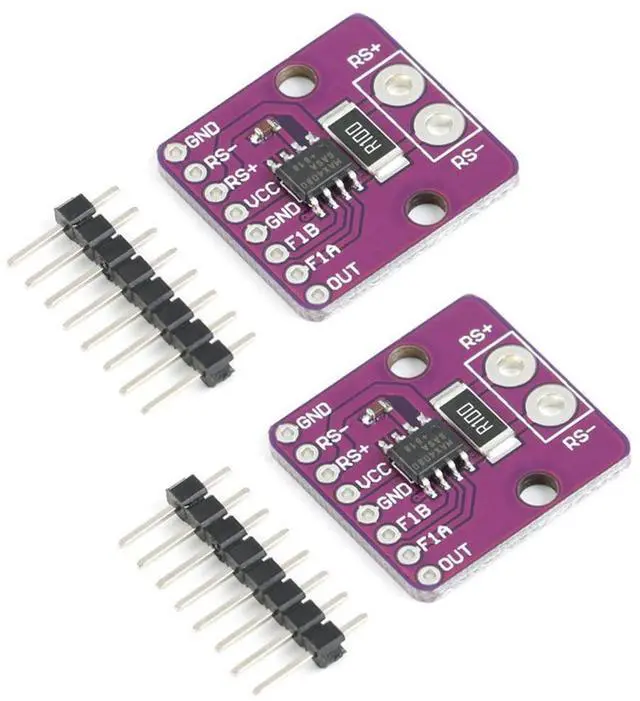

Package included: 2* MAX4080SASA Current Sensor Module
Parameters: Common
mode input voltage range: 4.5V to 76V
Maximum working current: 190uA
Full scale accuracy: ± 0.1 %
Low input offset voltage: 100V
Independent working power supply voltage: 4.5V to 76V
Pin Definition:
RS+: positive terminal of external
Sensor resistor RS-: negative terminal of external
Sensor resistor VCC: Positive power supply
OUT: Conversion voltage output FIA, FIB: MAX4080 chip used by the module, no connection
Applications: 48V Telecom and Backplane Current Detection Car (12V, 24V or 42V battery) Avalanche photodiode and PIN diode current monitoringb Two-way motor control General purpose system / board level current sensing Power management system Precision high voltage current source
Package included: 2* MAX4080SASA Current Sensor Module
