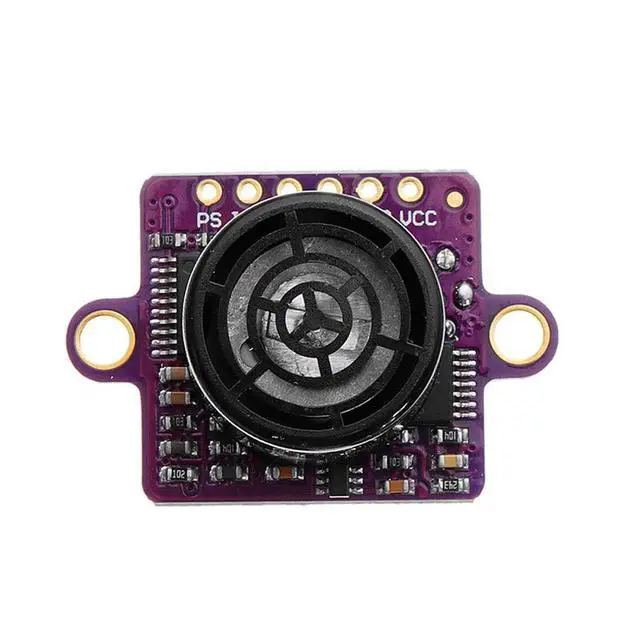

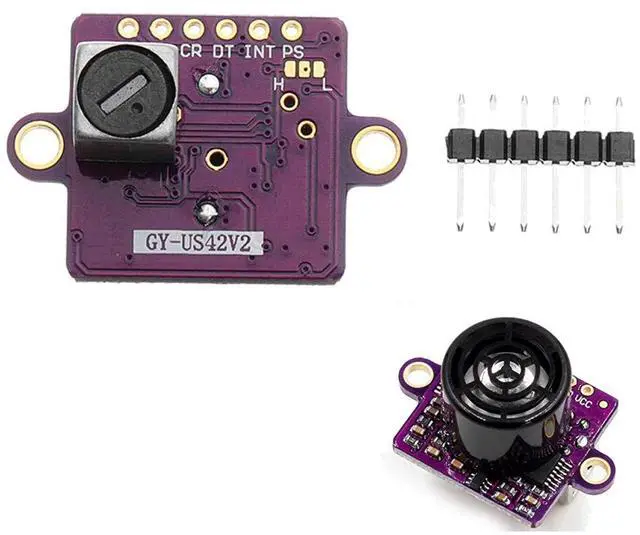

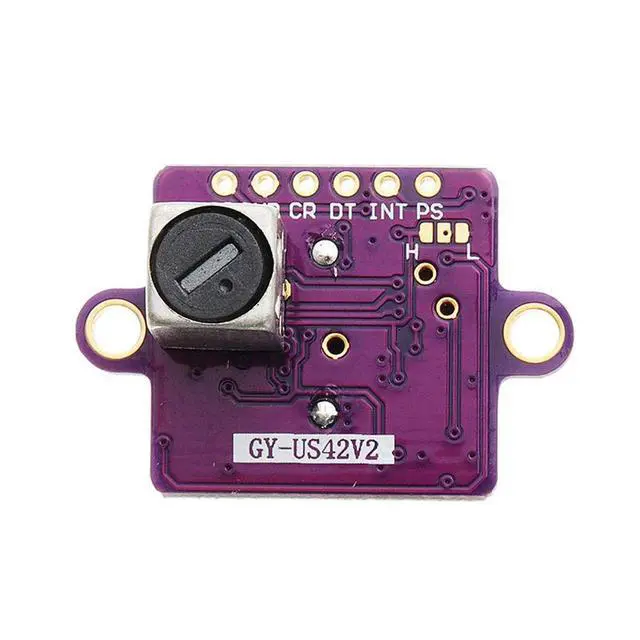

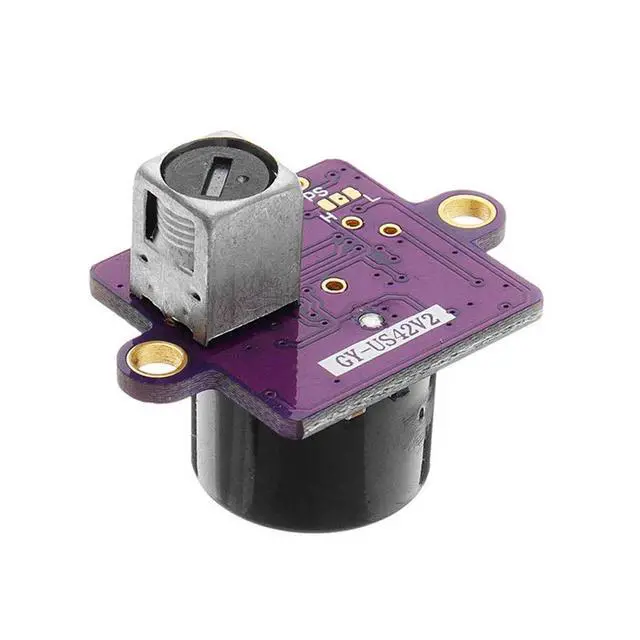

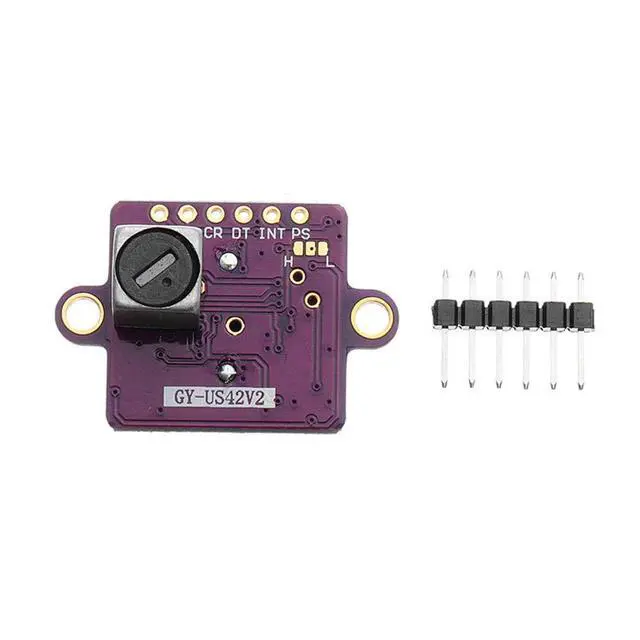

GY-US42 Flight Control Ultrasonic Distance Measure Module IIC I2C Port UART TTL PWM for Pixhawk APM Replace MB1242/SRF02
- 1.GY-US42 is a low cost, high quality range sensor module; Working voltage 3-5v, small power consumption, small size, easy installation.; 2.Its working principle is that the probe emits ultrasonic waves, irradiated to the measured object, the probe receives the return sound waves, the use of time difference, calculate the actual distance.; 3.There are three ways to read the module data, that is, serial UART (TTL level), IIC, pulse PWM mode,; 4.Serial baud rate of 9600bps and 115200bps, can be configured, there are continuous, ask the output in two ways, you can save the power settings.; 5.IIC can modify the internal address, to facilitate an IIC bus at the same time access multiple modules. Pulse PWM output, same as SR04.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product introduction GY-US42 is a high-quality rangefinder sensor module. Working voltage 3-5V, power consumption, small size, easy installation.
Its working principle is: the probe emits ultrasonic waves, after being irradiated to the measured object, the probe receives and returns the acoustic wave, and utilizes the time difference to calculate the actual distance.. Module has 3 ways to read data: Serial UART (TTL level), IIC, pulse PWM mode.. The serial port baud rate 9600bps and 115200bps, configurable, continuous, ask for the output of two ways. Power-save settings.. IIC can modify the internal address to facilitate an IIC bus to connect multiple modules at the same time. Pulse PWM output, same as SR04. Module can adapt to different working environment, direct link with the microcontroller. Connect the computer when you need USB to TTL module, direct connection. IIC mode can be direct, APM, Pixhawk and other flight control links.. Provide aroduino, 51, stm32 microcontroller communication procedures. Does not provide schematics and internal microcontroller source. As a result of sending and receiving integrated ultrasonic probe, ranging blind range of about 20cm, ranging within 20cm is invalid...
Technical Parameters Measuring range: 20cm ~ 720cm (VCC = 5V)
Resolution: 1cm
Response frequency: 15HZ (full range)
Working voltage: 3-5V
Working current: 9mA (VCC = 5V)
Operating temperature: -20 degrees Celsius ~ 65 degrees Celsius
Storage temperature: -40 degrees Celsius to 85 degrees
Celsius Size: 21.5 * 21 * 24.5 mm
Weight: 5g Package include 1* GY-US42 Flight Control Ultrasonic Ranging Module
Its working principle is: the probe emits ultrasonic waves, after being irradiated to the measured object, the probe receives and returns the acoustic wave, and utilizes the time difference to calculate the actual distance.. Module has 3 ways to read data: Serial UART (TTL level), IIC, pulse PWM mode.. The serial port baud rate 9600bps and 115200bps, configurable, continuous, ask for the output of two ways. Power-save settings.. IIC can modify the internal address to facilitate an IIC bus to connect multiple modules at the same time. Pulse PWM output, same as SR04. Module can adapt to different working environment, direct link with the microcontroller. Connect the computer when you need USB to TTL module, direct connection. IIC mode can be direct, APM, Pixhawk and other flight control links.. Provide aroduino, 51, stm32 microcontroller communication procedures. Does not provide schematics and internal microcontroller source. As a result of sending and receiving integrated ultrasonic probe, ranging blind range of about 20cm, ranging within 20cm is invalid...
Technical Parameters Measuring range: 20cm ~ 720cm (VCC = 5V)
Resolution: 1cm
Response frequency: 15HZ (full range)
Working voltage: 3-5V
Working current: 9mA (VCC = 5V)
Operating temperature: -20 degrees Celsius ~ 65 degrees Celsius
Storage temperature: -40 degrees Celsius to 85 degrees
Celsius Size: 21.5 * 21 * 24.5 mm
Weight: 5g Package include 1* GY-US42 Flight Control Ultrasonic Ranging Module
