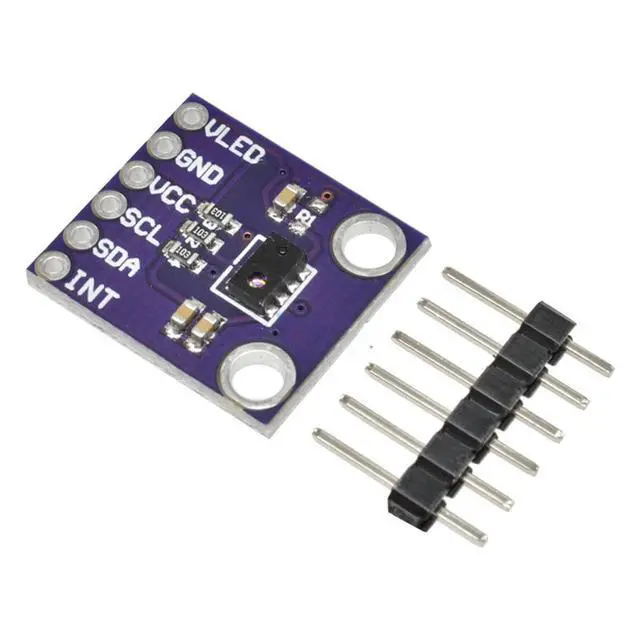

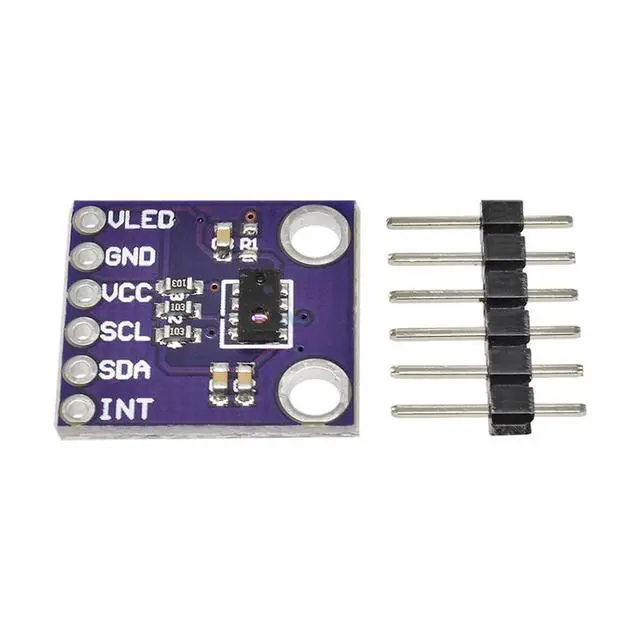

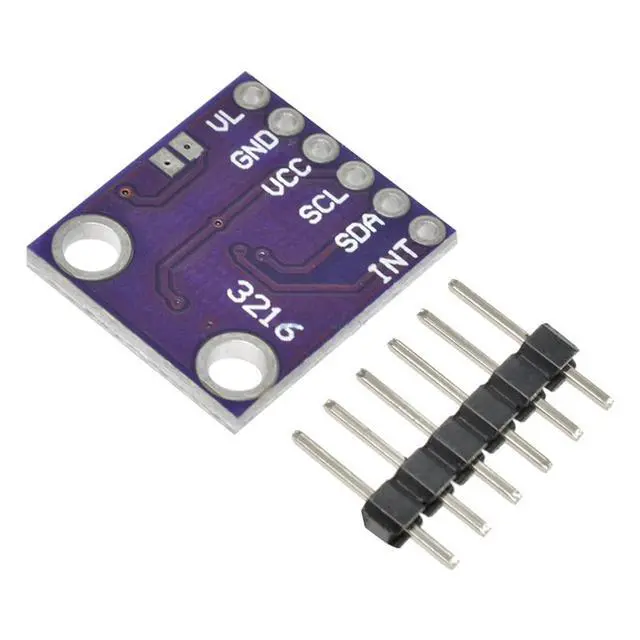

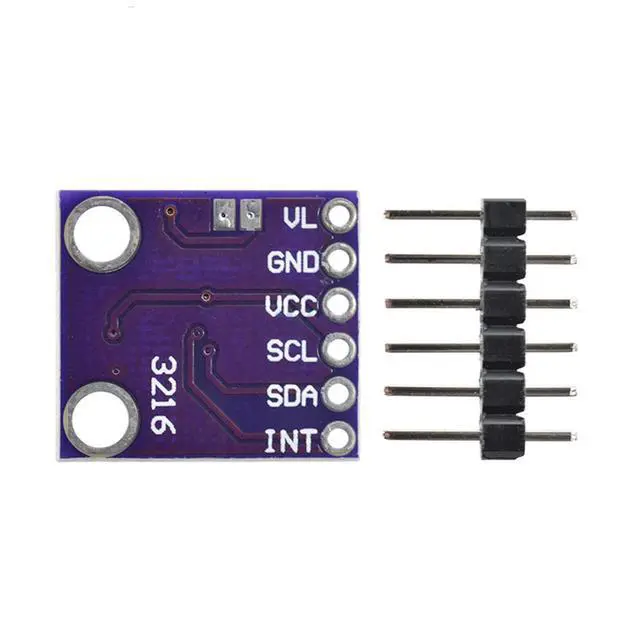

3pcs AP3216 ALS PS Digital Ambient Light Sensor Proximity Distance Sensor Module Light Detection Photosensitive Sensor

Description: AP3216C is an integrated ALS&PS module that includes a digital ambient light sensor [ALS], a proximity sensor [PS], and a single package of infrared LEDs. The unit offers multi-gain capability with linear response in the dynamic range 365/1460/5840/23360, making it ideal for applications in clear glass or dark glass. The proximity function is specifically designed for near-field applications where external objects are detected through a simple configurable area controlled by registers. With multiple proximity gain control, Multiple infrared LED current control and 10-bit ADC output, the device is specifically designed to hold low-reflective objects such as black hair. The device supports interrupts to increase system efficiency and has features that help minimize the occurrence of false triggers. Through internal calibration and CMOS design, the AP3216C is designed to minimize device-to-device variation for ease of manufacturing.
Features: I2C interface (fs mode 400k
Hz) Mode selection: ALS, PS+IR, ALS+PS+IR, PD, ALS once, SW reset, PS+IR once, ALS+? PS+IR once. Built-in temperature compensation circuit Ambient light sensor with operating temperature range (-30°C to +80°C) 16-bit effective linear output (0~65535) 4 user selectable dynamic range Anti-flicker suppression (reject 50/60Hz) High sensitivity Window loss compensation Proximity detector 10-bit effective linear output (0~1023) 4 programmable infrared LED current output High ambient light suppression Crosstalk compensation
Applications: Mobile phone, PAD Personal navigation device Notebook/superbook LCD/PDP TV backlight system Digital Frame Capacitive touch screen applications

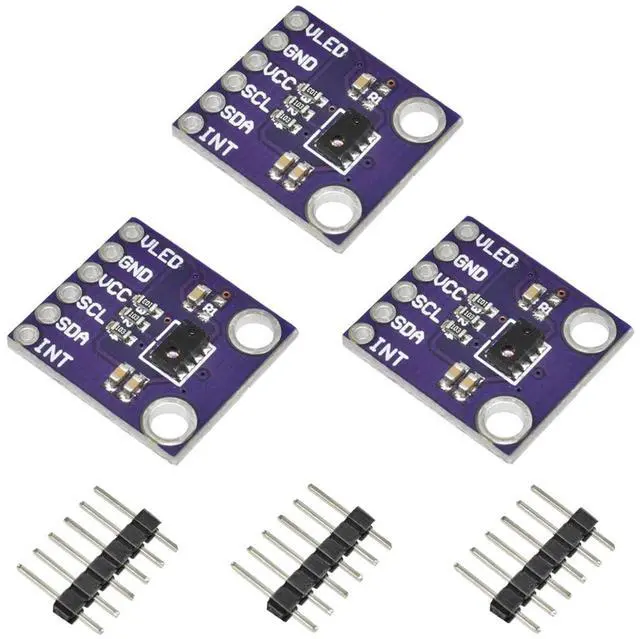

Package included: 3* AP3216 ALS PS Digital Ambient Light Sensor Proximity Distance Sensor
