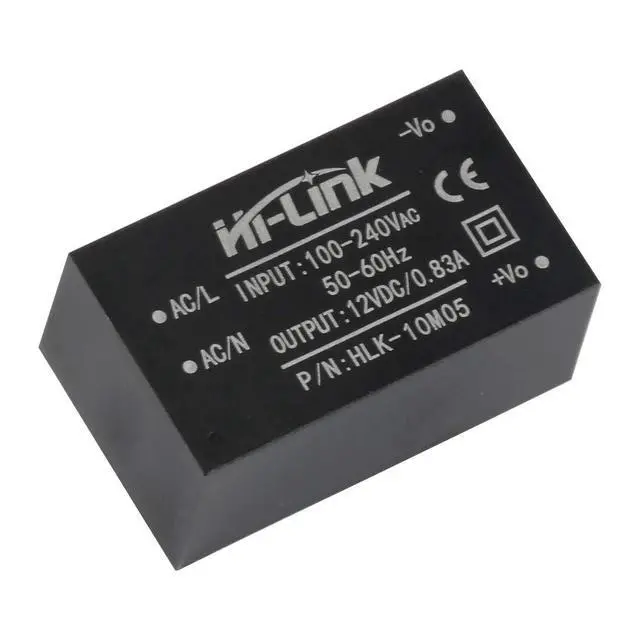

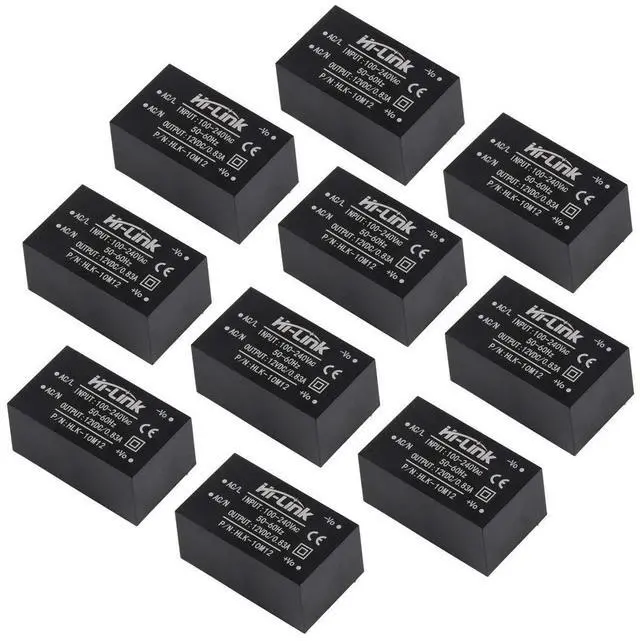

10pcs Mini Step-Down Power Supply Intelligent Household Switch Power Module HLK-PM01 HLK-5M05 10M05 HLK-2M05 AC DC 220V to 5V/3.3V/12V (HLK-10M12 12V 10W)

Features: Ultra-thin, ultra-small, the smallest in the industry Global universal input voltage (90~245Vac) Low power consumption, green environmental protection, no-load loss < 0.1W Low ripple, low noise, Works without external circuitry Good output short circuit and overcurrent protection and self-recovery Input and output isolation withstand voltage 3000Vac High reliability, long life design, continuous working time greater than 100, 000 hours Meet UL and CE requirements; product design meets EMC and safety testing requirements High-quality environmental protection waterproof and thermal conductive glue potting, moisture-proof, anti-vibration, meet the waterproof and dustproof IP65 standard
HLK-PM01 Parameters: Rated
input voltage: 100-240VAc;
Input voltage range: 90-264VAc
MAX input current:? 0.2A;
Input surge current:? 10A
MAX input voltage:? 270VAc
Input slow start:? 50mS
Input low voltage efficiency: Vin=110VAc, output full load? 69%;
Input high voltage efficiency: Vin=220VAc, output full load? 70%
Long-term reliability: MTBF? 100, 000h
No-load rated output voltage: 5± 0.1VD c;
Full load rated output voltage: 5± 0.2VD c
Short time output current limit:? 1000mA;
Long-term output limit:? 600mA
Voltage regulation: ± 0.2 %;
Load regulation rate: ± 0.5 %
Output ripple and noise (mVp-p):? 50mV, rated input voltage, full output. Test with a 20MHz bandwidth oscilloscope, load side and 10uF and 0.1 uF capacitors.
Switching machine overshoot amplitude: (rated input voltage, output plus 10% load)? 5% VO
Output overcurrent protection: 150-200A for output load limit
Output short circuit protection: direct short circuit during normal output, automatically resume normal operation after short circuit removal
