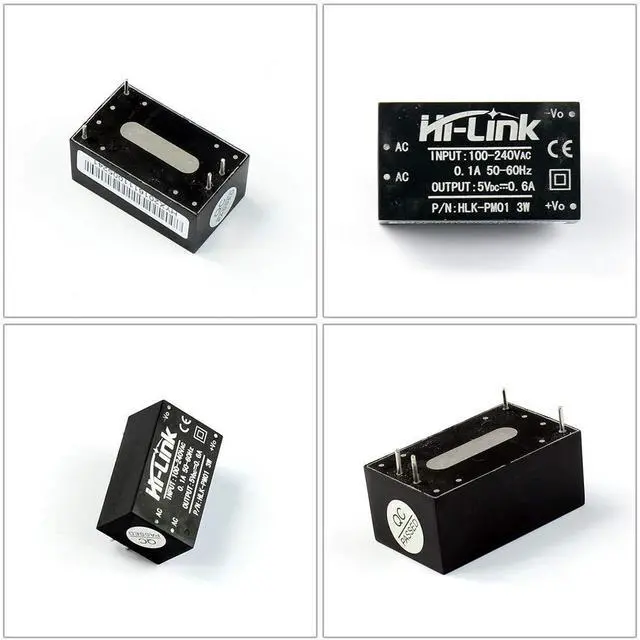

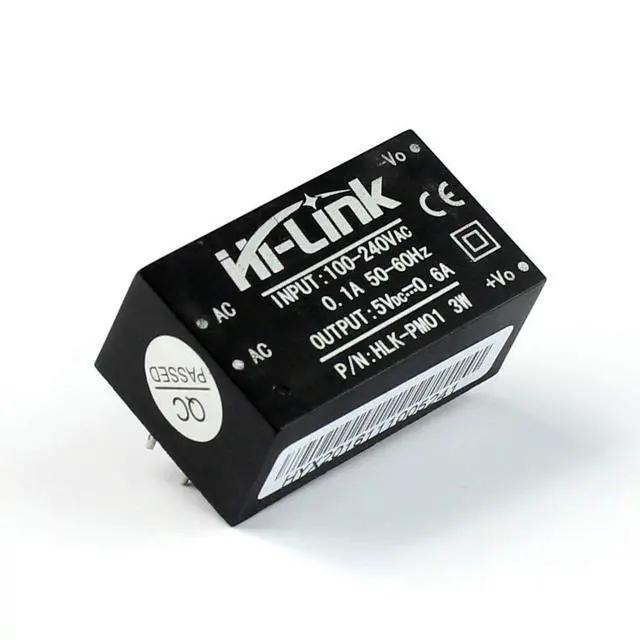

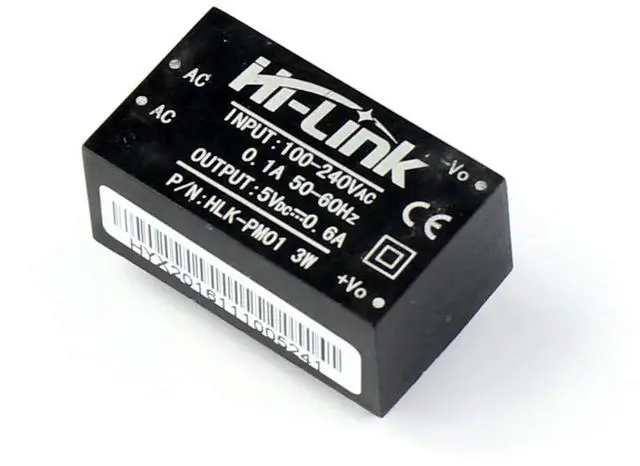

New HLK-PM01 AC-DC 220V to 5V Step-Down Power Supply Module Mini Size Intelligent Household Switch Step Down Power Supply Module (Black)
- Hi-Link latest power supply module, suitable for smart home switch control device, small volume, low current, input voltage range, is the best choice of smart home.; The input design USES UL 0.5 A insurance,PCB board made of double-sided copper-clad boards material is 94 - where V0 fire rating level,safety standards in accordance with UL1012 EN60950, UL60950.; Low power consumption, green environmental protection, no-load loss < 0.1 W; The full voltage input (90 ~ 264 vac); Output overload short circuit protection function
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product features:
1. The ultra-thin, subminiature
3. Low ripple and low noise
5. High efficiency and power density
6. Product design to meet the EMC and safety testing requirements 8.100 % load test
9. Meet the requirements of UL, CE 10. The quality %
The cooling way: Natural cooling
The atmospheric pressure: 80-106Kpa
The altitude: 2000M or less
Vibration: Vibration coefficient of 10 ~ 500 hz, 2 g10min. / 1 cycle, 60 min. Each along the X, Y, Z axes
Safety features: the product design as to meet the requirements of UL, CE safety certification. safety and electromagnetic compatibility Insulation voltage I/P -
O/P: 2500 vac Insulation resistance I/P - O/P > 100 m Ohms / 500 VDC 25 degree 70% RH Conduction and radiation in line with the EN55011, EN55022 (CISPR22) Electrostatic discharge IEC/EN 61000-4-2 level 4 8 kv / 15 kv Radiofrequency radiation immunity IEC/EN 61000-4-3 can be found in the application
Safety design temperature: At normal temperature on our power capacitor, main converter so on surface temperature does not exceed 90 degree; the largest shell surface maximum temperature does not exceed 60 degree
1. The ultra-thin, subminiature
3. Low ripple and low noise
5. High efficiency and power density
6. Product design to meet the EMC and safety testing requirements 8.100 % load test
9. Meet the requirements of UL, CE 10. The quality %
The cooling way: Natural cooling
The atmospheric pressure: 80-106Kpa
The altitude: 2000M or less
Vibration: Vibration coefficient of 10 ~ 500 hz, 2 g10min. / 1 cycle, 60 min. Each along the X, Y, Z axes
Safety features: the product design as to meet the requirements of UL, CE safety certification. safety and electromagnetic compatibility Insulation voltage I/P -
O/P: 2500 vac Insulation resistance I/P - O/P > 100 m Ohms / 500 VDC 25 degree 70% RH Conduction and radiation in line with the EN55011, EN55022 (CISPR22) Electrostatic discharge IEC/EN 61000-4-2 level 4 8 kv / 15 kv Radiofrequency radiation immunity IEC/EN 61000-4-3 can be found in the application
Safety design temperature: At normal temperature on our power capacitor, main converter so on surface temperature does not exceed 90 degree; the largest shell surface maximum temperature does not exceed 60 degree
