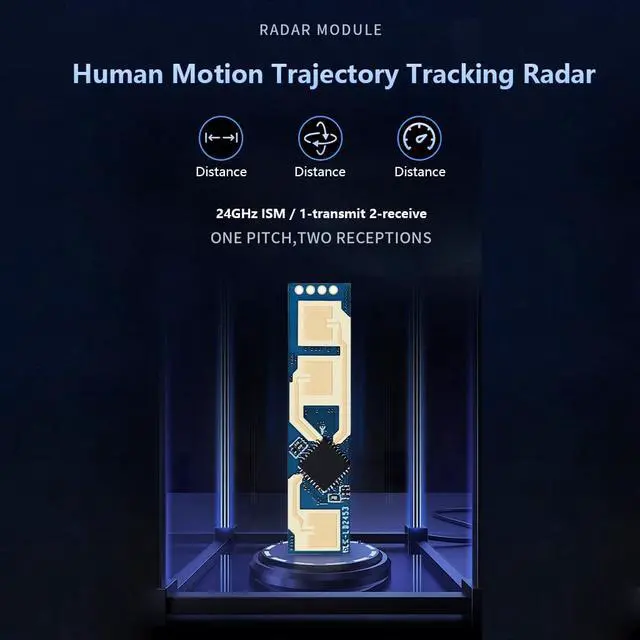

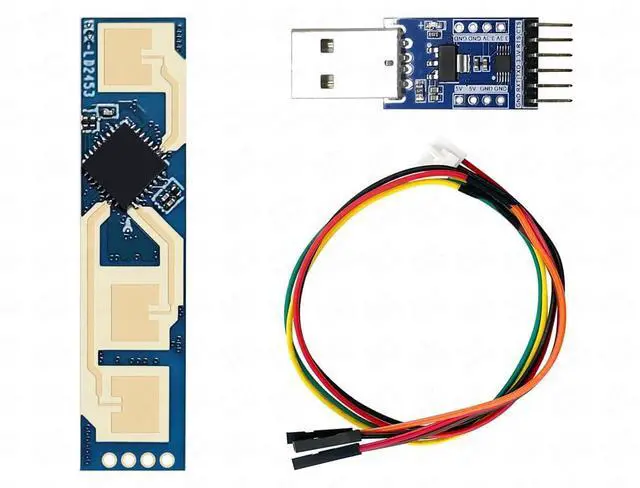

HLK-LD2453 24G Multi-Target Human Motion Trajectory Radar Module Millimeter-Wave Sensor Single-Transmitter, Dual-Receiver via Serial Communication (Module Test Kit)
- LD2453 is a 24GHz radar module that enables real-time tracking of moving target positions within the detection area, and outputs distance, angle, and velocity information of targets via serial communication.; Supported Frequency Band: 24GHz~24.25GHz. Modulation Method:FMCW. Voltage:3.3V(Typ.). Product Size:7X30mm.; Detection Angle: Azimuth ±40°, Elevation ±30°. Detection Range: Maximum sensing distance 6m. Max number of targets to detect: 3.; Range Resolution: 0.72m. Range Accuracy: 0.15m. Angle Accuracy:2°~20°. Data Refresh Rate:10Hz. Average Operating Current:76mA.; The HLK-LD2453 module communicates with external devices via a serial port (TTL level). The default baud rate for the radar serial port is 256,000, with 1 stop bit and no parity bit.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

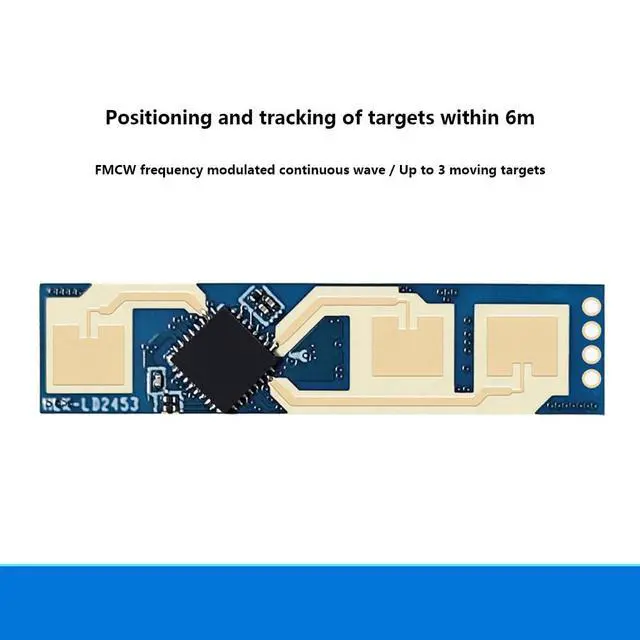

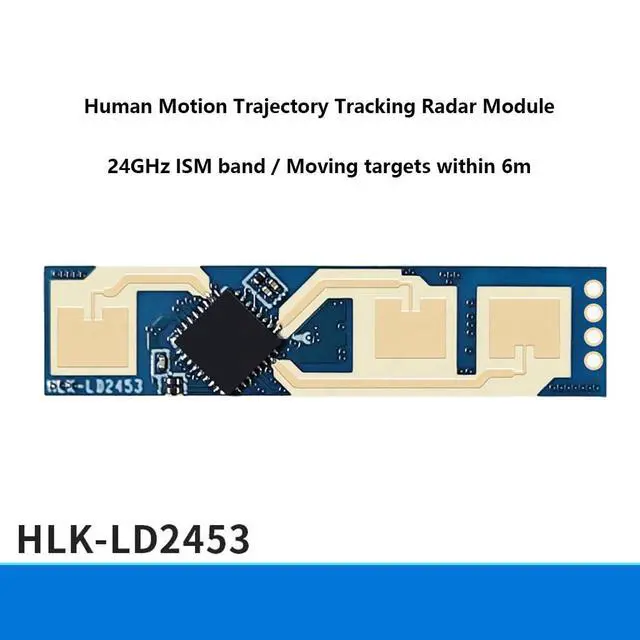

HLK-LD2453 24G Multi-Target Human Motion Trajectory Radar Module Millimeter-Wave Sensor Single-Transmitter, Dual-Receiver via Serial Communication Product Description LD2453 is a 24GHz radar module that enables real-time tracking of moving target positions within the detection area, and outputs distance, angle, and velocity information of targets via serial communication. It is mainly used in typical indoor environments such as homes, offices, and hotels for positioning and tracking of multiple human bodies. Product
Features Supported Frequency Band: 24GHz~ 24.25GH z
Modulation Method: FMCW

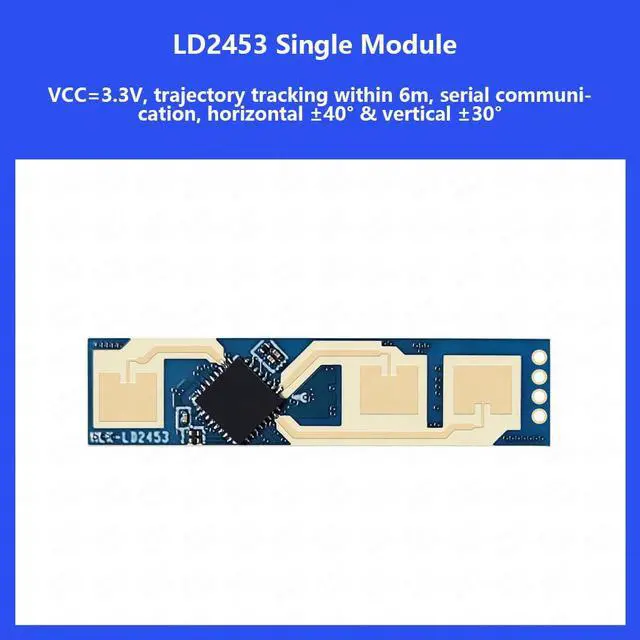

Voltage: 3.3V (Typ. )
Product Size: 7X30mm

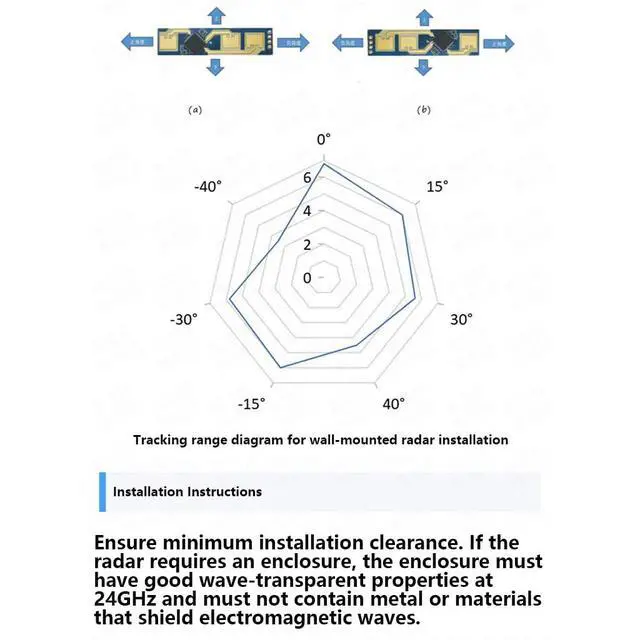

Detection Angle: Azimuth ±40°, Elevation ±30°
Detection Range: Maximum sensing distance 6m
Range Resolution: 0.72 m
Range Accuracy: 0.15 m
Angle Accuracy: 2°~20°
Operating Temperature: -20°C~+70°C
Data Refresh Rate: 10Hz

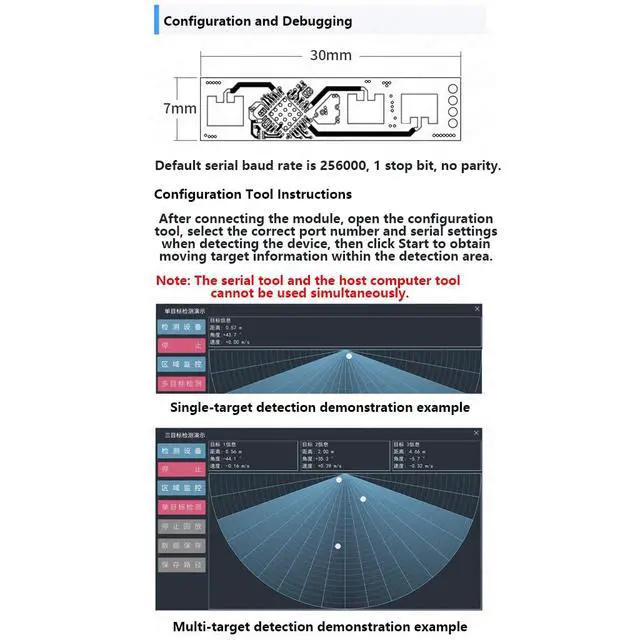

Average Operating Current: 76mA The HLK-LD2453 module communicates with external devices via a serial port (TTL level). The default baud rate for the radar serial port is 256, 000, with 1 stop bit and no parity bit.
Features Supported Frequency Band: 24GHz~ 24.25GH z
Modulation Method: FMCW
Voltage: 3.3V (Typ. )
Product Size: 7X30mm
Detection Angle: Azimuth ±40°, Elevation ±30°
Detection Range: Maximum sensing distance 6m
Range Resolution: 0.72 m
Range Accuracy: 0.15 m
Angle Accuracy: 2°~20°
Operating Temperature: -20°C~+70°C
Data Refresh Rate: 10Hz
Average Operating Current: 76mA The HLK-LD2453 module communicates with external devices via a serial port (TTL level). The default baud rate for the radar serial port is 256, 000, with 1 stop bit and no parity bit.
