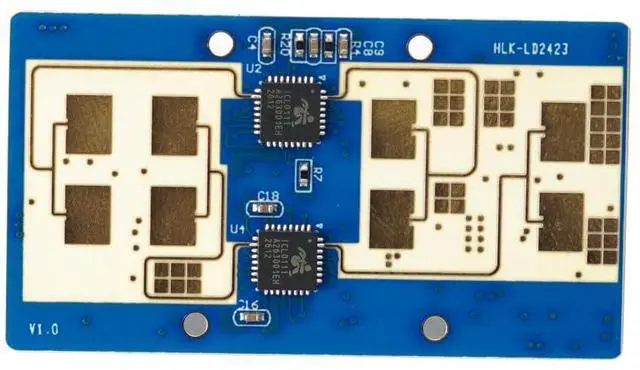

HLK-LD2423 24G Multi-Target Recognition Millimeter-Wave Radar Tracking Sensor Human Trajectory Detection for Distance, Angle, and Speed (Module only)

HLK-LD2423 24G Multi-Target Recognition Millimeter-Wave Radar Tracking Sensor Human Trajectory Detection for Distance, Angle, and Speed Product Description LD2423 is a high-precision multi-target recognition millimeter-wave radar sensor that enables real-time continuous tracking of target positions within the detection area and accurate measurement of parameters such as distance, angle, and speed. It is mainly used in typical indoor environments such as homes, offices, and hotels for real-time positioning and motion tracking of multiple human targets.
Product Features Operating Frequency: 24G- 24.25GH z
Operating Bandwidth: 250MHz
EIRP: 13dBm
Modulation Mode: FMCW
Detection Angle: Horizontal 130°/ vertical 70°

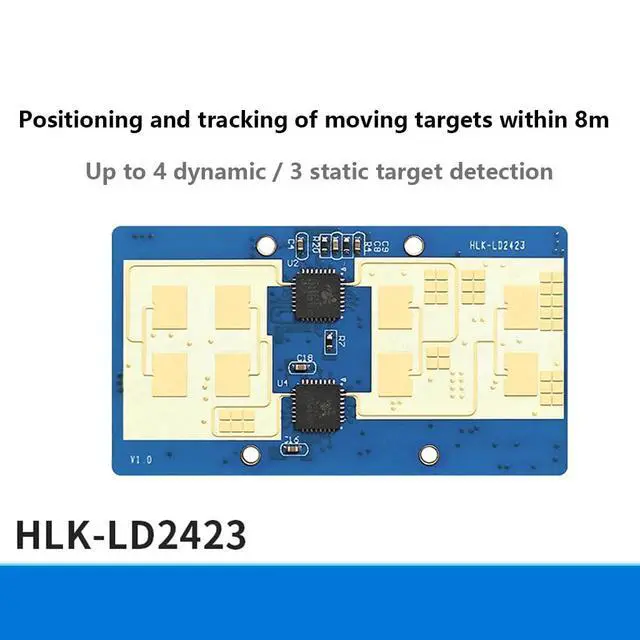

Detection Range: Maximum sensing distance 8m
Range Resolution: 0.74 m(Typ. )
Range Accuracy: 0.3 m(Typ. )
Angle Resolution: 40°(Typ. )
Angle Accuracy: 3°(Typ. )
Average Current: 127mA@5V(Typ. )

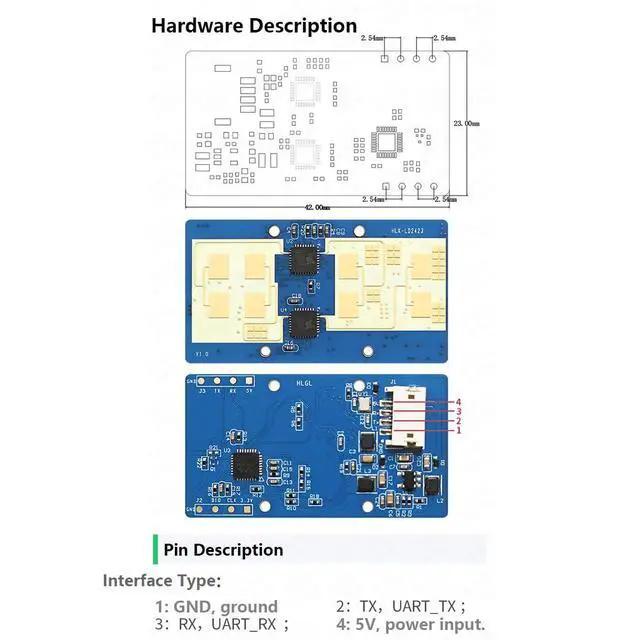

Dimensions: 23mmX42mm
Operating Temperature: -40°C~+85°C Advantages
1. In addition to being highly sensitive to moving bodies, it can also accurately detect stationary or slightly moving bodies that traditional solutions cannot recognize.
2. It has excellent environmental adaptability; detection performance is not affected by surrounding conditions such as temperature, brightness, humidity, or fluctuations in light.
3. It offers excellent penetration capabilities and can operate while concealed inside the housing, eliminating the need to drill holes in the products surface.
