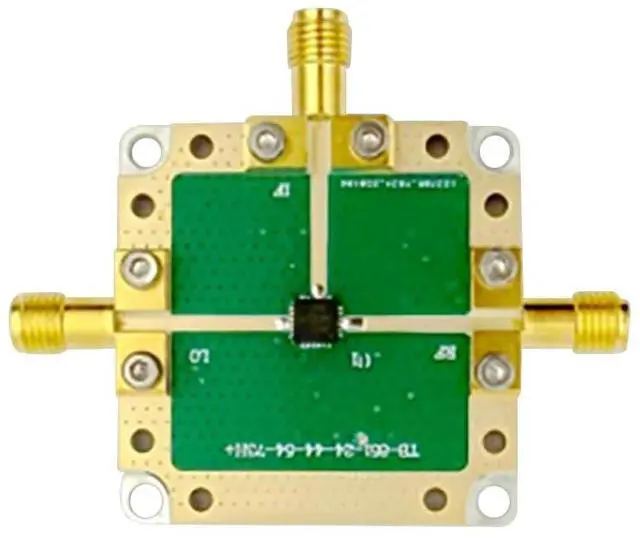

Main image of 5GHz22GHz Broadband Passive RF Module MDB-24H+ Double-Balanced Up/Down Mixing RF Converter with 3.5mm SMA Female Connector (MDB-24H+ with Splint SMA)

Alt view image 2 of 6 - 5GHz22GHz Broadband Passive RF Module MDB-24H+ Double-Balanced Up/Down Mixing RF Converter with 3.5mm SMA Female Connector (MDB-24H+ with Splint SMA)

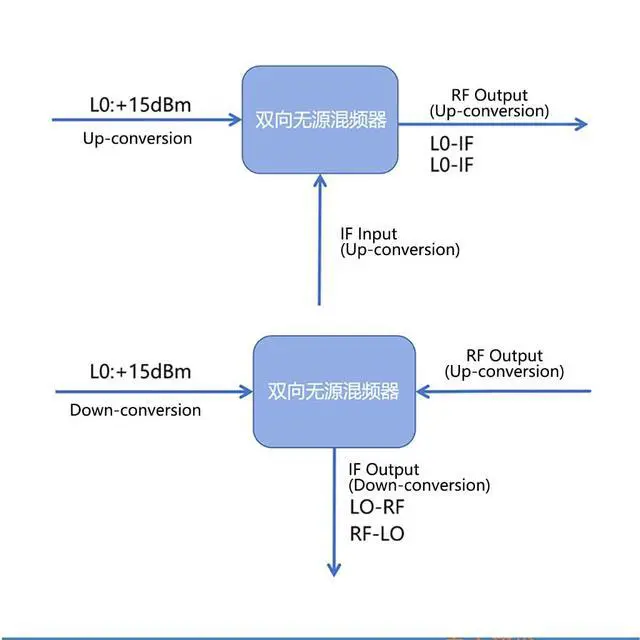

Alt view image 3 of 6 - 5GHz22GHz Broadband Passive RF Module MDB-24H+ Double-Balanced Up/Down Mixing RF Converter with 3.5mm SMA Female Connector (MDB-24H+ with Splint SMA)

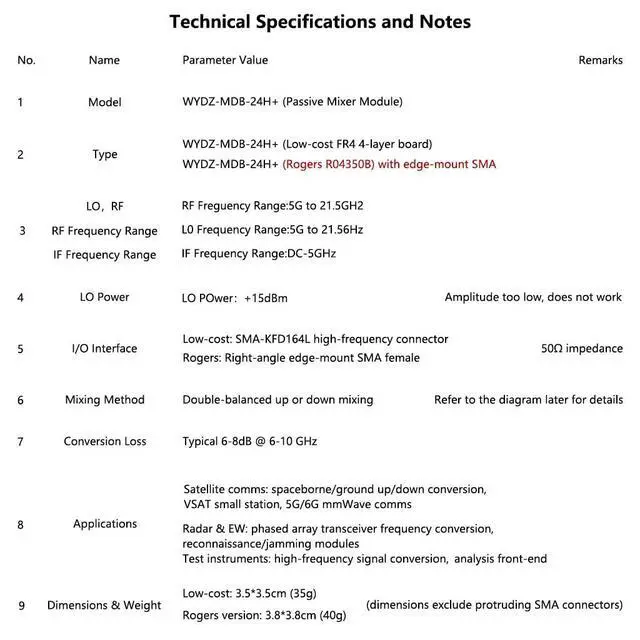

Alt view image 4 of 6 - 5GHz22GHz Broadband Passive RF Module MDB-24H+ Double-Balanced Up/Down Mixing RF Converter with 3.5mm SMA Female Connector (MDB-24H+ with Splint SMA)

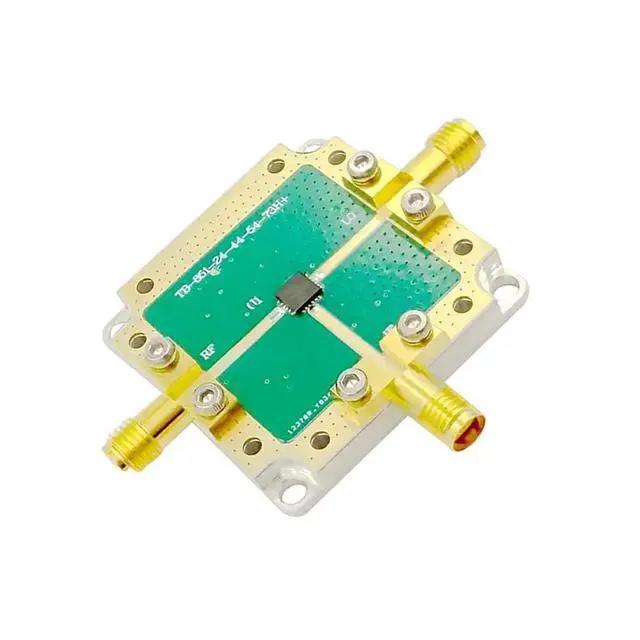

Alt view image 5 of 6 - 5GHz22GHz Broadband Passive RF Module MDB-24H+ Double-Balanced Up/Down Mixing RF Converter with 3.5mm SMA Female Connector (MDB-24H+ with Splint SMA)

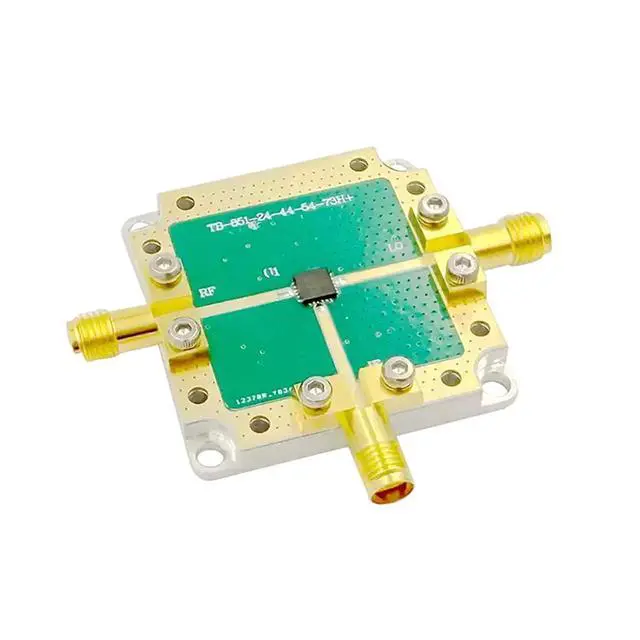

Alt view image 6 of 6 - 5GHz22GHz Broadband Passive RF Module MDB-24H+ Double-Balanced Up/Down Mixing RF Converter with 3.5mm SMA Female Connector (MDB-24H+ with Splint SMA)

Visit StarVelocity Technology Store

5GHz22GHz Broadband Passive RF Module MDB-24H+ Double-Balanced Up/Down Mixing RF Converter with 3.5mm SMA Female Connector (MDB-24H+ with Splint SMA)

Be the first to review this product...

I/O Interface 50 ImpedanceLow-Cost Version: SMA-KFD164L High-Frequency Interface. New Version: Offset Clamp SMA Female Connector.; IF Frequency Range: DC 5GHz. LO Power: +15dBm( Does not work if amplitude is too low).; RF Frequency Range: 5G to 21.5GHz. LO Frequency Range: 5G to 21.5GHz.; Mixing Method: Double-Balanced Down-Mixing. Conversion Loss: Typical 6 8 dB @ 6 10 GHz.; Satellite-compatible Communication: On-board / Ground Up/Down Conversion, Small Stations compatible with VSAT , 5G / 6G Millimeter-Wave Communication.; Test Instruments: High-Frequency Signal Conversion, Analyzer Front-End. Ra dar: Transmit/Receive Conversion.

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

5GHz22GHz Broadband Passive Mixer Module MDB-24H+ Double-Balanced Up/Down Mixing RF Converter with 3.5 mm SMA Female
Connector Product Detail:
Model: WYDZ-MDB-24H+ (Passive Mixer Module)
Option Type: Option
1: WYDZ-MDB-24H+ (Low-Cost FR4 4-Layer Board)
Option 2: WYDZ-MDB-24H+ (New RO4350B) with Splint SMA
Frequency Range: RF
Frequency Range: 5G to 21.5GH z LO
Frequency Range: 5G to 21.5GH z IF
Frequency Range: DC 5GHz
LO Power: +15dBm ( Does not work if amplitude is too low ) I/O Interface 50
Impedance Low-Cost Version: SMA-KFD164L High-Frequency Interface.
New Version: Offset Clamp SMA Female Connector.
Mixing Method: Double-Balanced Down-Mixing.
Conversion Loss: Typical 6 8 dB @ 6 10 GHz
Size & Weight: Size excludes protruding SMA connectors
Low-Cost Version: 3.5 × 3.5 cm (35g)
New Version: 3.8 × 3.8 cm (40g)
Application Scenarios Satellite-compatible Communication: On-board / Ground Up/Down Conversion, Small Stations compatible with VSAT, 5G / 6G Millimeter-Wave Communication.
Ra dar: Transmit/Receive
Conversion Test Instruments: High-Frequency Signal Conversion, Analyzer Front-End
