RP2350-ETH Dual-Core Ethernet Module Development Board with USB-C Port Compatible with Raspberry Pi Microcontroller
- Unique dual-core, dual-architecture, equipped with a dual-core ARM Cor tex-M33 .; Processor and a dual-core Ha zard 3 RISC-V processor, both running at up to 150MHz flexible clock.; Built-in 520KB of SRAM and 4MB of on-chip Flash. Onboard CH9120 with integrated TCP/IP stack. 14 GPIOs, compatible with some Pico expansion boards.; Stamp hole design, can be directly soldered and integrated into the user's own design of the backplane.; Can be recognized as mass storage via USB for drag-and-drop program download. 12 programmable I/O (PIO) state machines for custom peripheral support.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
RP2350-ETH Dual-Core Ethernet Module Development Board with USB-C Port Compatible with Raspberry Pi Microcontroller

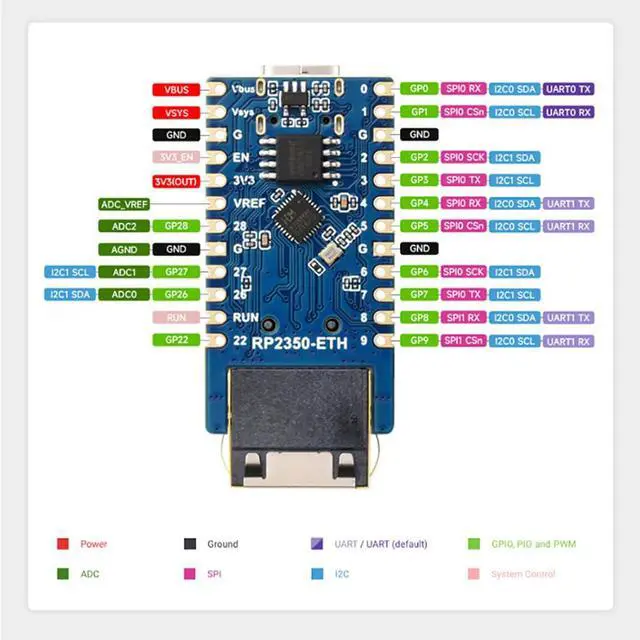

Product Features: Unique dual-core, dual-architecture, equipped with a dual-core ARM Cor tex-M33. Processor and a dual-core Ha zard 3 RISC-V processor, both running at up to 150MHz flexible clock. Built-in 520KB of SRAM and 4MB of on-chip Flash. Onboard CH9120 with integrated TCP/IP stack. 14 GPIOs, compatible with some Pico expansion boards. Stamp hole design, can be directly soldered and integrated into the user's own design of the backplane. Can be recognized as mass storage via USB for drag-and-drop program download. Temperature sensor on board. 12 programmable I/O (PIO) state machines for custom peripheral support.

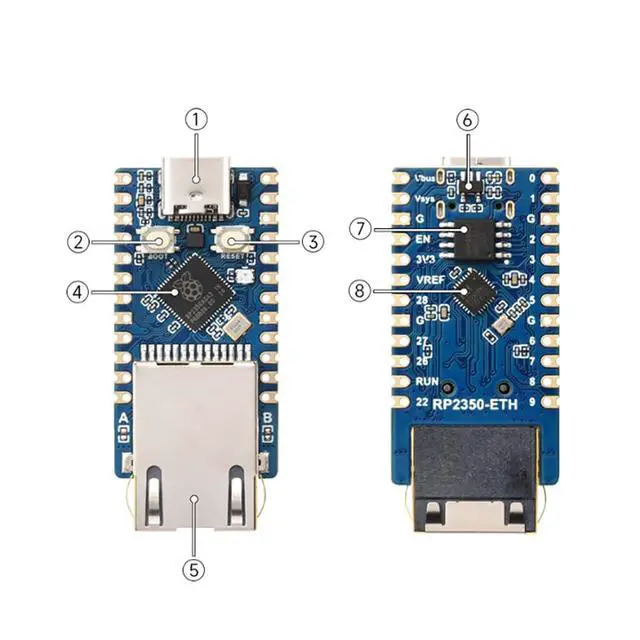

Introduction: 1. USB-C Interface Can be used to download the program, and support USB 1.1 host and slave devices 2. BOOT button Press during reset to enter download mode 3. RESET button Reset button 4. RP2350 Dual-core, dual-architecture processor, up to 150MHz operating frequency 5. Ethernet RJ45 interface 6. ME6217C33M5G Low Voltage Drop LDO, Maximum Current 800mA 7. W25Q32JVSSIQ 4MB NOR-Flash 8. CH9120 Network Serial Transceiver Chip
Product Features: Unique dual-core, dual-architecture, equipped with a dual-core ARM Cor tex-M33. Processor and a dual-core Ha zard 3 RISC-V processor, both running at up to 150MHz flexible clock. Built-in 520KB of SRAM and 4MB of on-chip Flash. Onboard CH9120 with integrated TCP/IP stack. 14 GPIOs, compatible with some Pico expansion boards. Stamp hole design, can be directly soldered and integrated into the user's own design of the backplane. Can be recognized as mass storage via USB for drag-and-drop program download. Temperature sensor on board. 12 programmable I/O (PIO) state machines for custom peripheral support.
Introduction: 1. USB-C Interface Can be used to download the program, and support USB 1.1 host and slave devices 2. BOOT button Press during reset to enter download mode 3. RESET button Reset button 4. RP2350 Dual-core, dual-architecture processor, up to 150MHz operating frequency 5. Ethernet RJ45 interface 6. ME6217C33M5G Low Voltage Drop LDO, Maximum Current 800mA 7. W25Q32JVSSIQ 4MB NOR-Flash 8. CH9120 Network Serial Transceiver Chip
