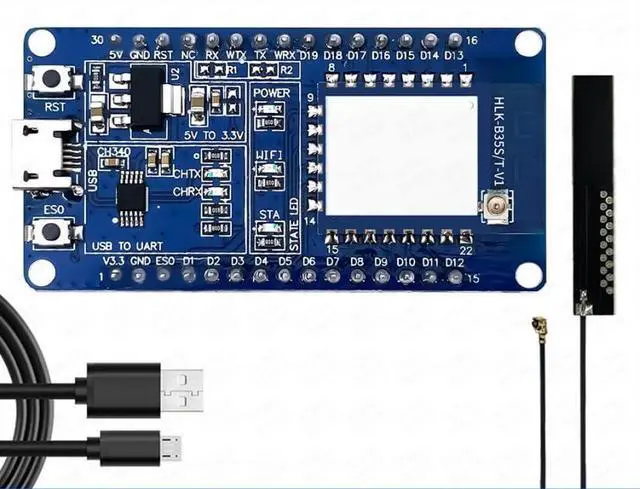

HK-B35T Serial to Wi Fi + 5.2 Bluetooth-Compatible Module Dual-Mode Low-Power Wireless Serial Transparent Transmission (Test Kit)

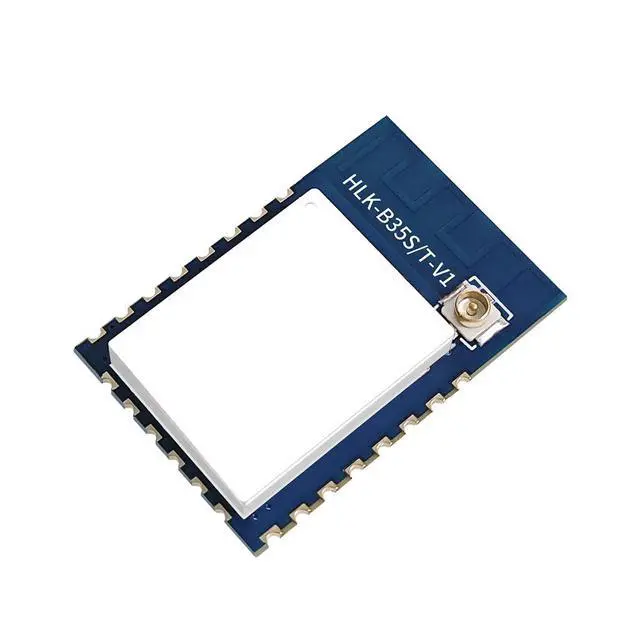

HK-B35T Serial to Wi Fi + 5.2 Bluetooth-compatible Module Dual-Mode Low-Power Wire less Serial Transparent Transmission PRODUCT INTRODUCTION The B35T is a low-power embedded Wi Fi+B L E dual-protocol module. It consists of a highly integrated wire less RF chip and a small number of peripheral components, featuring an embedded Wi Fi network protocol stack and a rich set of library functions. The module is designed with Wi Fi 802.11 b/g/n and B L E 5.2 baseband/MAC, and includes 288KB RAM, 2MB Flash, and abundant peripheral resources. Wire less Parameters Wire less
Standard: IEEE 802.11 b/g/n Blue tooth-compatible
Standard: B-L-E 5.2
Frequency Range: 2.4122.
484 GHz Transmit Power: Wi
Fi: 1819 dBm /
Blue tooth-compatible: 10 dBm (MAX)
Receive Sensitivity: -98 dBm
Antenna Antenna Type: External Antenna (can be modified to on-board antenna) Hardware Parameters
Hardware Interfaces: UART/PWM/GPIO/SPI/IIC
Operating Voltage: 3.3V ( 2.7V 3.6V ) GPIO
Drive Max: 12.8 mA
Operating Current: ~30mA/Peak 400mA
Software Parameters Wire-less Network: AP/STA/BLE
Security Mechanisms: WEP/WPA-PSK/WPA2-PSK
Encryption Types: WEP64/WEP128/TKIP/AES
Firmware Upgrade: Serial Port Upgrade
Network Protocols: IPv4, TCP/UDP, Lwip
User Configuration: AT+ Command Set
Other Parameters Dimensions: 24×16× 1.6 mm
Environmental Standards: Operating
Temperature: -40°C to +85°C
Operating Humidity: 10% to 90% RH (non-condensing)
Storage Temperature: -40°C to +85°C
Storage Humidity: 10% to 90% RH (non-condensing)
