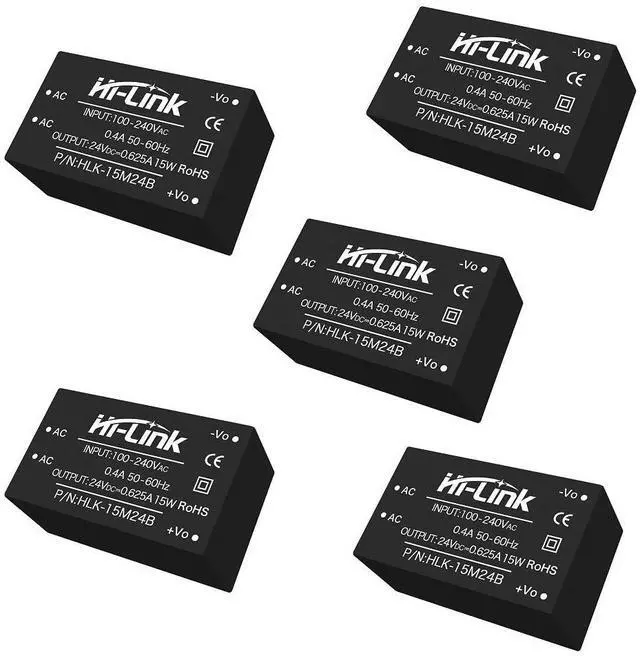

HLK-15W 220V AC-DC Step-Down Isolated Power Module Low Power Consumption Low Noise for Medical, Industrial Control (HLK-15M24B,5Pcs)

HLK-15W 220V AC-DC Step-Down Isolated Power Module Low Power Consumption Low Noise for Medical, Industrial Control Product
Features Universal Input Voltage: 85-265VAC
Input/Output Isolation Withstand Voltage: 3000VAC Low Power Consumption, Eco-Friendly, No-Load
Loss: <0.1W Low Ripple, Low Noise, High Efficiency, High Power Density High Reliability, Long-Life Design, Continuous Operation > 100, 000 Hours Fully enclosed plastic housing, UL94V-0 rated Robust output short-circuit and overcurrent protection with self-recovery High-quality eco-friendly waterproof thermal adhesive potting provides dustproof, moisture-proof, vibration-resistant, and flame-retardant properties, meeting IP65 waterproof and dustproof standards ENVIRONMENTAL CONDITIONS
Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +80°C
Relative Humidity: 5% to 95%
RH Cooling Method: Natural
Convection Atmospheric Pressure: 80 to 106 kPa
Altitude: 2000m
Vibration: Vibration coefficient 10~500Hz, 2G10 min. /1cycle, 60min. each along X, Y, Z axes Meets Class II road transport requirements ELECTRICAL CHARACTERISTICS Input Characteristics (Standard Temperature Test) Rated
Input Voltage: 100-240VAC
Input Voltage Range: 85-265VAC/120-350VDC
Maximum Input Current: 0.3A
Input Inrush Current: 34A
Input Soft Start: 550mS
Long-Term Reliability: MTBF100, 000H
Recommended External Fuse: 1A/250VAC (slow-blow) Output Characteristics
Voltage Regulation: ± 0.5 %
Load Regulation: ± 0.5 %
Switch-On/Off Overshoot: 5% Vo Output
Ripple & Noise: 100mV p-p
