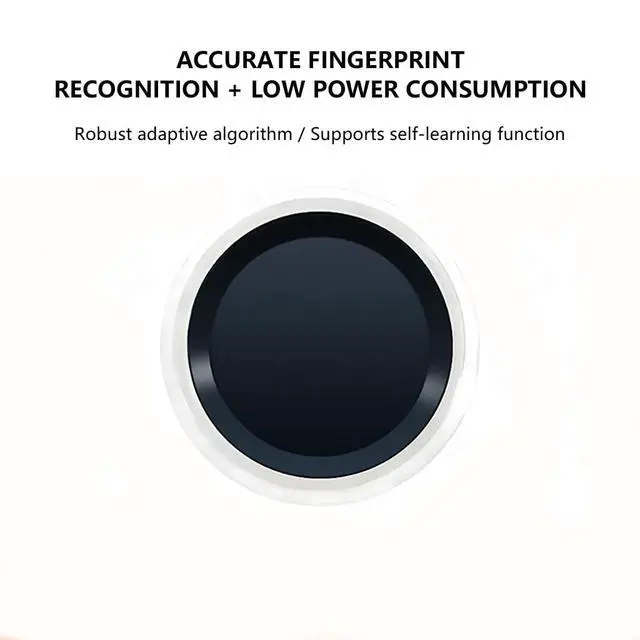

HK-ZW3020 Finger Print Identification Module Touch Finger Detection Capacitive Semiconductor Sensor with TTL Serial Port (Single Module)

HK-ZW3020 Finger Print Identification Module Capacitive Touch Finger Detection Semiconductor Sensor with TTL Serial Port Product Introduction ZW302x series modules are upgraded and iterated with three core features: First, it adopts optimized image acquisition and pre-processing driver, which effectively shortens the time consuming image acquisition and pre-processing, and improves the image quality and response speed; Secondly, after power-on initialization, it automatically sends 0x55 bytes handshake logo, which accurately feedbacks the module's readiness status and ensures the smooth flow of receiving commands from the host computer; Third, the new AutoSearch command function allows users to complete the search operation with a single command, simplifying the interaction process and enhancing the convenience of use.
Product Parameters Module size: 21mm
Sensor: 13.6 mm
Resolution: 108×108 pixel
Resolution: 508DPI
Interface protocol: TTL serial port
Communication Baud Rate: Default baud rate 57600bps/1 start bit/1 stop bit 3.3VTTL level
Interface and wire sequence: 1.0 mm × 6Pin horizontal paste
Finger print library capacity: 100 Storage temperature and humidity -40~+85;; <<85%RH Operating temperature and humidity -25~+70;: 440%~85%RH
Recognition rate: < 0.001 %
Rejection rate: <=3%
Comparison mode:
1: N
Standby current (sensor): <10uA@ 3.3V Operating current (algorithm
MCU): <60mA@ 3.3V
Picking time: ~250ms
Eigenvalue generation time: ~220ms
Comparison time: ~150ms
Power-on startup: ~100ms
ESD level: non-contact discharge ~15KV / contact discharge ~8KV
