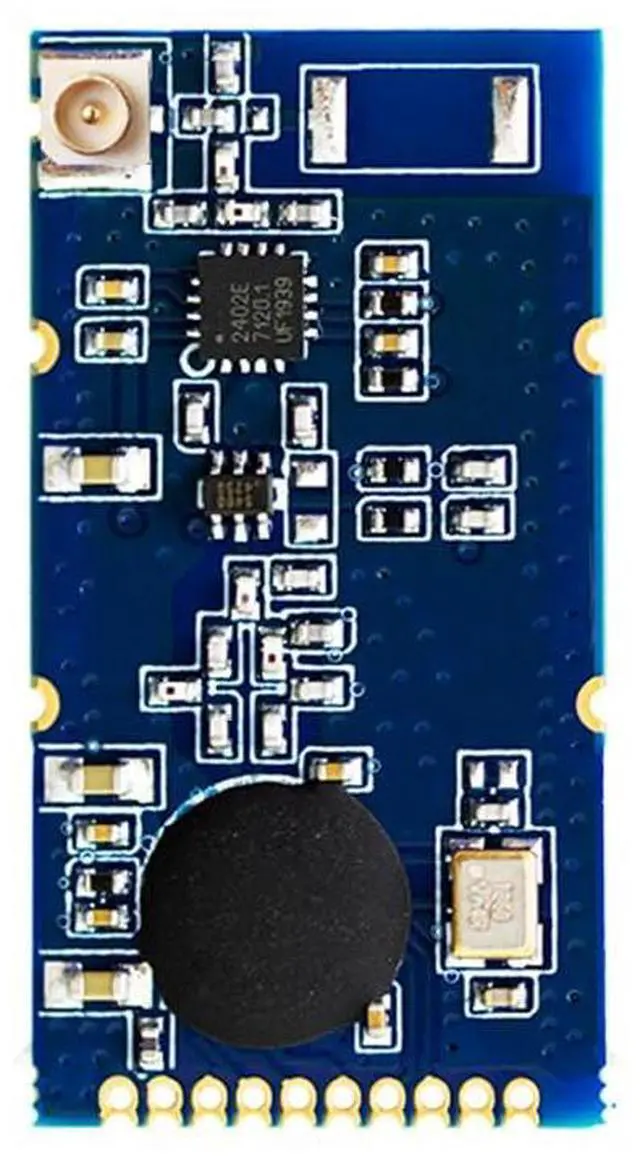

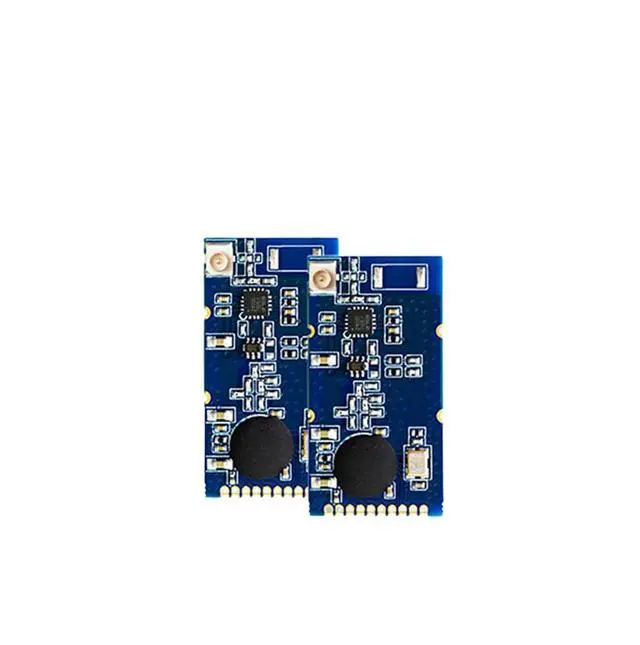

CC2500 Data Transmission Module 2¡¤4G SPI interface RSSI output Board Built-in PA+LNA Chip Wire¡¤less Remote Control 800m (No Seat)

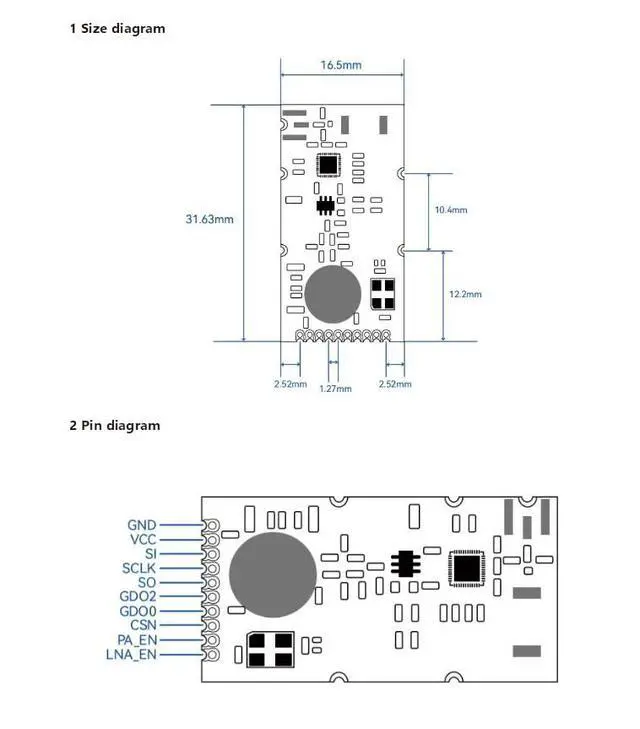

CC2500 Data Transmission Module 2¡¤4G SPI interface RSSI output Board Built-in PA+LNA Chip Wire¡¤less Remote Control 800m Hardware Design Recommend to use the DCDC that the power ripple coefficient is smaller to supply the power if you can, ensure proper grounding. Characteristics Frequency 2.4GH z, can be programmed 2.4 - 2.483GH z. SMD element, 31.6 * 16.5 mm, PCB antenna/ IPEX antenna interface optional. Support FSK, GFSK, ASK, OOK, MSK modulation mode. Set power by software, max +23dBm. Flexible RF channel configuration, fast switching frequency point.

Set RF baud rate by software, 1.2 k~500kbps. 3.3V power supply. SPI interface, RSSI output, carrier sense indication. Application scenario Wireless sensor. Low power telemetry. AMR-automatic transcription. RKE-two way remote keyless login. Remote controlled toy. Wireless light control. Wireless alarm and security system.
Essential parameter VCC: 2.4
~ 3.6V £¬Rated voltage: 3.3V

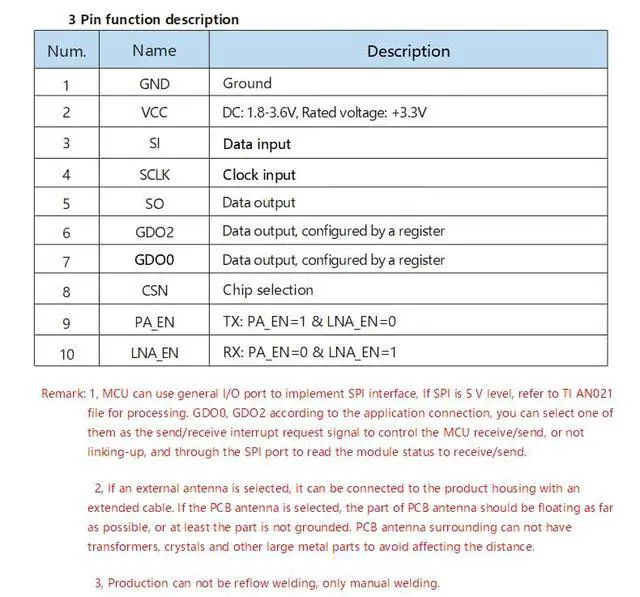

Data interface: SPI
Storage temperature range: -50 ~ 150¡æ Work
Temperature range: -20 ~ 70¡æ High bit error rate issue Same frequency signal interface, remove interface or modifying the frequency (interval 500MHz at least) /RF channels. Power supply instability, check and replace a stable one.
